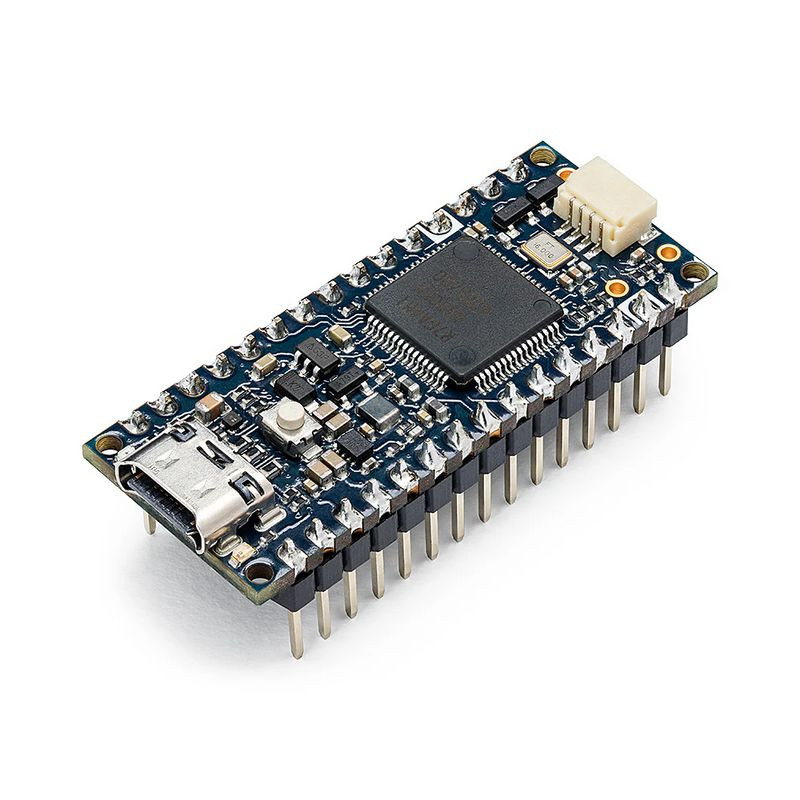

ARDUINO NANO R4 WITH HEADERS, ABX00143

All pictures are for illustrative purposes only.

PID# 109929

CA$40.00
Free shipping: On orders over $120 within BC

3 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Overview

Nano R4 merges Arduino’s signature ease of use with the powerful Renesas RA4M1 microcontroller and a range of embedded features – the pinout includes CAN, DAC, VRTC and OpAmp! – enabling effortless scaling from prototyping on the UNO R4 to production-ready applications.

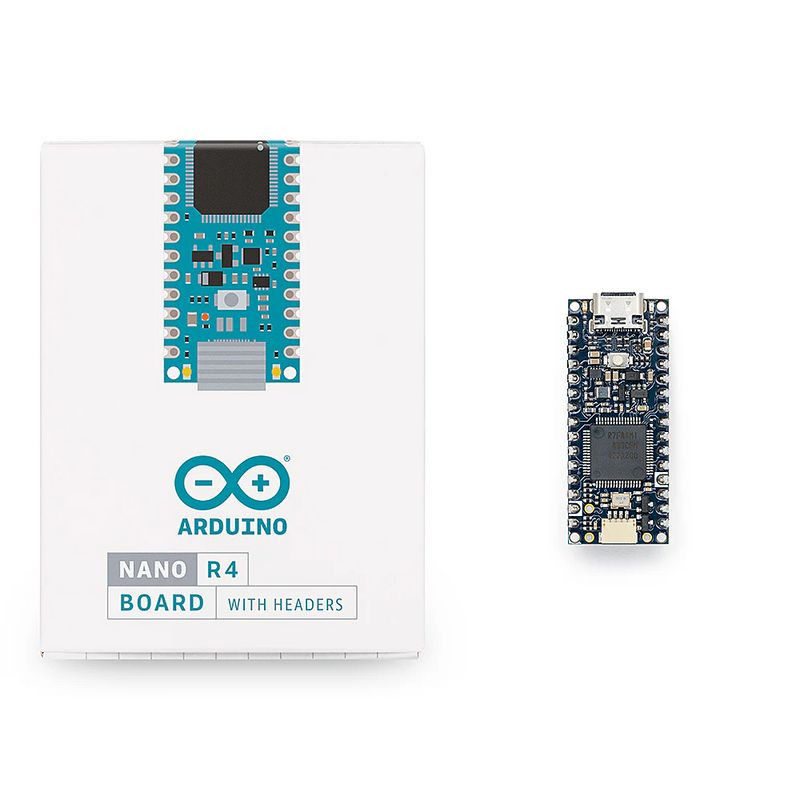

With pre-soldered headers, the Nano R4 is ready out of the box for breadboarding, connecting to Modulino nodes, and jumping into experimentation without additional assembly. It maintains the same pinout as other boards in the Nano family and features an on-board Qwiic connector for rapid sensor and peripheral expansion, as well as a programmable RGB LED for intuitive system feedback. Its single-sided component design makes it ideal for space-constrained products, ensuring a seamless transition from classroom or lab testing to real-world deployment.

Thanks to its compatibility with familiar Arduino tools and libraries (including those for the Arduino UNO R4 Minima), the Nano R4 offers students, designers, and developers a streamlined path to build compact, connected, and production-ready solutions.

Key benefits

  • Effortless transition from prototyping to production: Leverage the RA4M1 microcontroller already trusted in the UNO R4 family, with minimal code adjustments needed.
  • Compact, production-ready design: Tiny 4.3 x 1.7 cm footprint, castellated pins, and single-sided components facilitate easy integration into custom hardware.
  • Plug-and-play prototyping: With pre-soldered headers, it’s easy to jump into breadboarding, testing, and connecting external modules like Modulino nodes.
  • Easy expansion: The built-in Qwiic connector and additional 5V I2C port allow seamless connectivity to a wide range of sensors and actuators.
  • Customizable feedback: Use the programmable RGB LED to indicate system states for faster debugging and smarter user interaction.
  • Flexible, familiar platform: Enjoy Arduino’s rich ecosystem, intuitive development environment, and robust community support.

Application examples to explore

  • Educational and creative prototyping: Tech students and designers can rapidly develop and test interactive installations, product concepts, or course projects with minimal setup.
  • Embedded industrial systems: Thanks to its compact design and production-ready features, the Nano R4 is ideal for creating embedded industrial solutions where space is limited but reliability is critical.
  • Home automation: With easy sensor and actuator integration, the Nano R4 enables fast development of connected and smart products that make your daily life easier.
  • Robotics and automation projects: The small footprint and robust connectivity make it perfect for miniaturized robots, autonomous devices, or interactive art.
  • Custom hardware platforms: For designers seeking hardware customization without starting from scratch, the Nano R4’s castellated design simplifies integration into bespoke PCBs for specialized products in industrial, commercial, or consumer sectors.

Tech specs

Board Name Arduino® Nano R4 with headers
SKU ABX00143
Microcontroller Renesas RA4M1 (Arm® Cortex®-M4)
USB USB-C® Programming Port
Pins Digital I/O Pins 21 (all the exposed I/O can be used as digital I/O pins)
Analog input pins 8
DAC 1
PWM pins 6
External interrupts 2,3
Misc DAC A0
OpAmp A1, A2, A3
VRTC J5
Communication UART 1
I2C 2 (5V: A4, A5 / 3.3V: Qwiic, J3, J4)
SPI 1
CAN 1
Power Circuit operating voltage +5 VDC
Input voltage (VIN) +6-21 VDC
DC Current per I/O Pin 8 mA
Clock Speed Main core 48 MHz
Memory (RA4M1) Flash 256 kB
RAM 32 kB
EEPROM 8 kB
Dimensions Width 18 mm
Length 45 mm

FAQs

Is my sketch for the Arduino UNO R4 Minima compatible with the Arduino Nano R4?

Yes, your sketch for the UNO R4 Minima is compatible with the Nano R4. However, you will need to adjust the sketch to align with the Nano R4's pinout.

Can I use hardware compatible with the Arduino Nano (A000005) with the Arduino Nano R4?

Yes, the Arduino Nano R4 was specifically designed to ensure compatibility with previous shields and compatible hardware developed for the Arduino Nano. The Nano R4 maintains the same pinout and electrical compatibility, allowing you to seamlessly use your existing shields and hardware with the new board. This makes it easy to upgrade to the Nano R4 without the need for significant changes or adaptations to your projects.

Can I use my sketch developed for the Arduino Nano (A000005) in the Nano R4?

Yes, if your sketch was developed using the Arduino API. In case you are using instructions only available for the AVR architecture, some changes need to be made to ensure compatibility.

 Datasheet

DATASHEET IN .PDF
