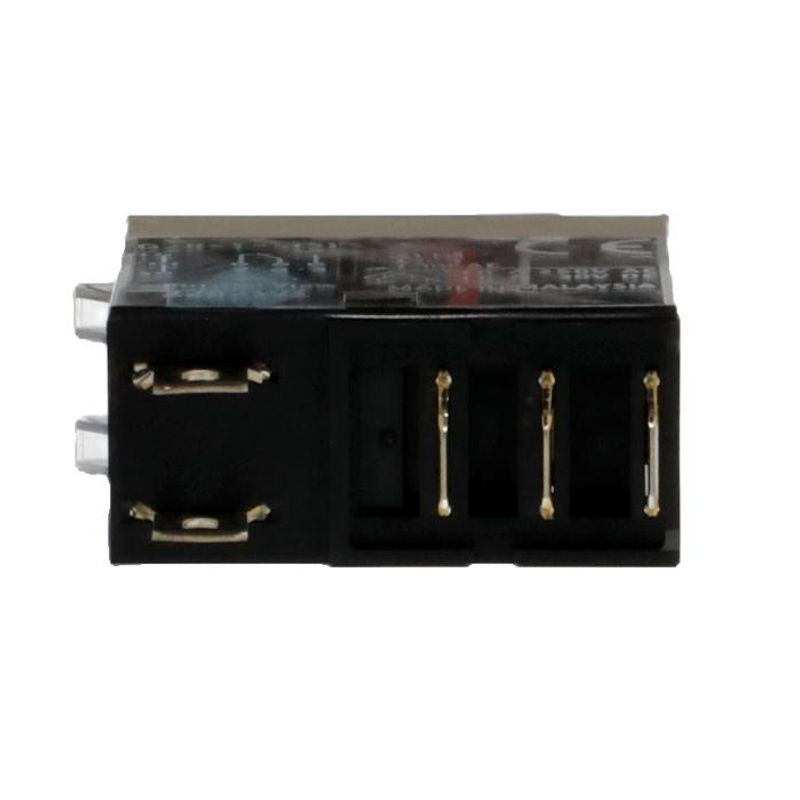

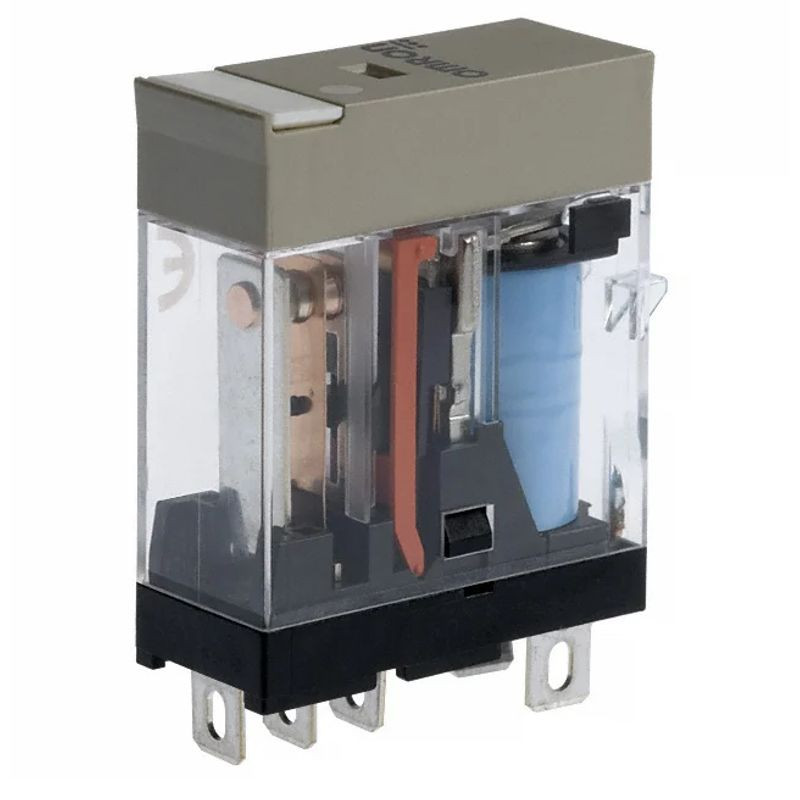

RELAY OMRON G2R-1-S DC12(S) SPDT DC12V 10A

All pictures are for illustrative purposes only.

PID# 161474

CA$20.00
Free shipping: On orders over $120 within BC

10 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Coil Voltage: 12VDC

Contact Form: SPDT (1 Form C)

Contact Rating (Current): 10 A

Switching Voltage: 440VAC, 125VDC - Max

Load - Max Switching: 4400VA, 1250W

Coil Current: 43.2 mA

Coil Type: Non Latching

Plug In, Quick Connect - 0.187" (4.7mm)

Must Operate Voltage: 8.4 VDC

Must Release Voltage: 1.8 VDC

Operate Time: 15 ms

Release Time: 10 ms

Operating Temperature: -40°C ~ 70°C

Approval Agency: CE, CSA, LR, UR, VDE

Relay Type: General Purpose

Coil Resistance: 278 Ohms

Specifications

10 Items

Features

Voltage 12V
Contact Configuration SPDT
