RELAY, AUTOMOTIVE, 12VDC, 40A, SPST, CMA36-DC12V-A-R W/RESISTOR

All pictures are for illustrative purposes only.

PID# 33026

CA$7.50
Free shipping: On orders over $120 within BC

1 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

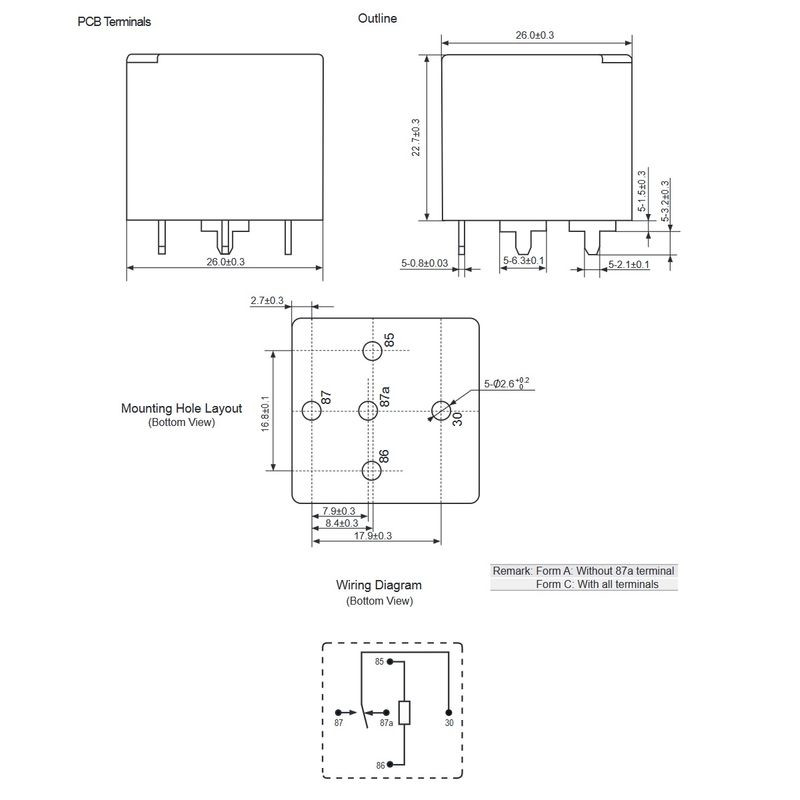

General Motors Relay Size: 26×26×22.7(mm) 50A Contact Switching Capability One set of normally open, one set of changeover contacts Plastic seal type and bayonet type Printed board type and quick-connect type terminals Conform to Rohs, ELV directive Operating temperature reach 125°C

Product parameters
contact form 1A,1C
Contact load Standard type:
NO:40A/14VDC,NC:30A/14VDC
NO:20A/28VDC,NC:1
Maximum Switching Voltage 28VDC
Maximum switching current On: 150A (NO, surge) Off: 50A (steady state)
Maximum Switching Power 640W
Minimum switching voltage and current -
Coil parameters
coil voltage 12～24VDC
Coil power 1.6W
1.8W
2.0W
2.2W
performance parameters
Dielectric withstand voltage between contacts 550VAC,1min
Between contact and coil 550VAC,1min
Electrical life (times) 100,000
ambient temperature -40℃ to +125℃
Lead-out mode Quick connect
printed board

Specifications

1 Item

Features

Coil Voltage 12VDC
Contact Configuration SPST-NO
