RELAY, AUTO (TWIN), 12VDC 30A, DPDT, EP2F-B3G1ST

All pictures are for illustrative purposes only.

PID# 161294

CA$12.50
Free shipping: On orders over $120 within BC

5 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Contact Form: DPDT (2 Form C)
Relay Construction: Non-Latching
Max Contact Current: 30A
Coil Voltage: 12 VDC
Coil Current: 53.3 mA
Coil Resistance: 225 Ohm
Contact Material: Silver Oxide
Must Operate Voltage: 6.5 VDC
Must Release Voltage: 0.9 VDC
Operate Time: 5 ms
Seal: Sealed
Mounting: Through Hole
Termination Style: PC Pin

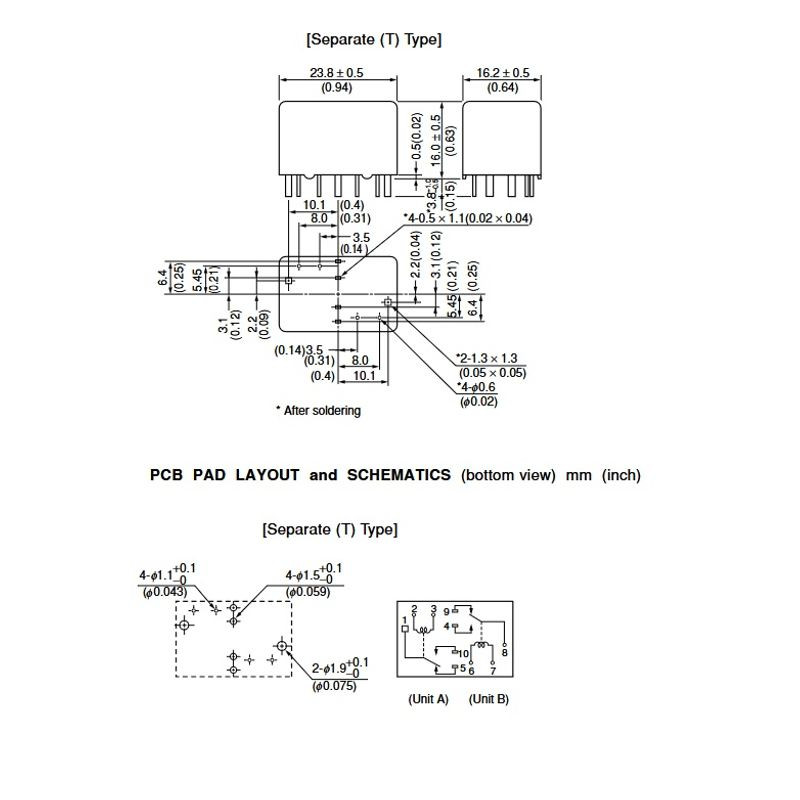

Dimension: 23.8 x 16.2 x 16 mm
Operating Temperature: -40 to 85 °C
