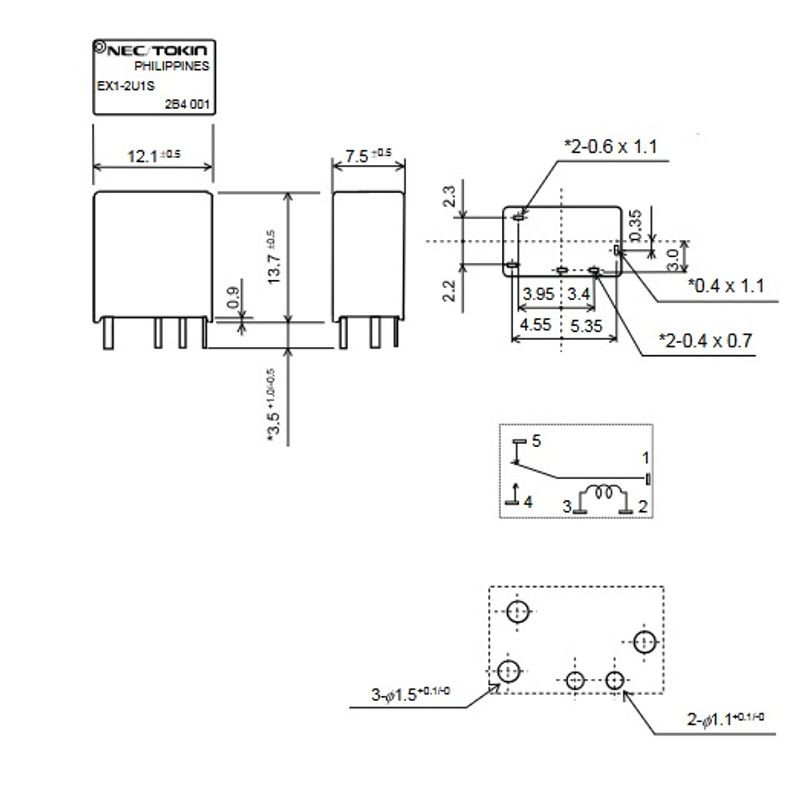

AUTO RELAY, 12VDC 30A, SPDT, EX1-2U1S

All pictures are for illustrative purposes only.

PID# 160648

CA$8.00
Free shipping: On orders over $120 within BC

2 In Stock

Order now, processed next business day

Quantity

Request a large quantity quote

Description

Coil Type: Non Latching

Coil Current: 75 mA

Coil Voltage: 12VDC

Contact Form: SPDT (1 Form C)

Contact Rating (Current) :30 A

Switching Voltage: 16VDC - Max

Must Operate Voltage: 6.5 VDC

Must Release Voltage: 0.9 VDC

Operate Time :2.5 ms

Release Time: 3 ms

Features: Sealed - Fully

Mounting Type: Through Hole

Termination Style: PC Pin

Operating Temperature: -40°C ~ 125°C

Contact Material: Silver Tin Oxide (AgSnO)

Coil Power: 900mW

Coil Resistance: 160 Ohms
