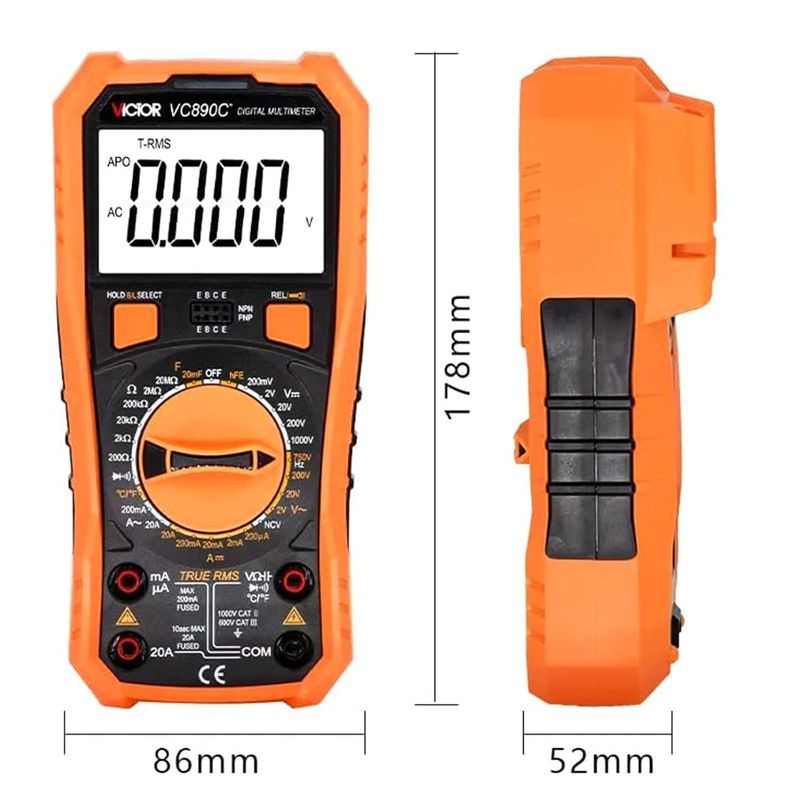

DIGITAL MULTIMETER VC890C+

10924
CA$37.50

DIGITAL MULTIMETER VC890C+. Streamline design, large LCD with backlight, and reliable.

IN STOCK Quantity

VC890C+  3 1/2 Digital Multimeter



·New type holster, streamline design
·Large LCD makes the reading clearly.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·Full function protection, anti-high voltage circuit design.





Basic Function

Range

Basic accuracy

DC Voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC Voltage

2V/20V/200V/750V (@1.2%+10)

±(0.8%+5)

DC Current

20uA/2mA/200mA/20A



200uA/20mA/200mA/20A

±(0.8%+10)

AC Current

2mA/200mA/20A



20mA/200mA/20A

±(1.0%+15)

Resistance

200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ



200Ω/2kΩ/20kΩ/200kΩ/20MΩ

±(0.8%+3)

Capacitance

20nF/2uF/200uF/2000uF/20mF

±(2.5%+20)

Celsius

(-20~1000)°C

±(1.0%+5)







Special Function

Diode

C

Transistor

Continuity buzzer

Low battery indication

Data Hold

Auto power off

Function protection

Restorable Fuse protection

Shock proof protection

Input impedance

10MΩ

Sampling rate

3 times/s

AC Frequency response

40~400Hz

Operation way

Manual range

Max. Display

1999

LCD size

55×43mm

Battery

9V(6V22)







Product color

Case: dark gray; Holster color: Orange

Product Net Weight

Approx:400g

Product Dimension

175×93×55mm

Standard Accessories

Test leads/battery/instruction manual/TP01 temperature probe

  with temperature function / Testing accessories

Carton size

396×312×433mm

Standard Gross Weight

Approx:17.5kg
