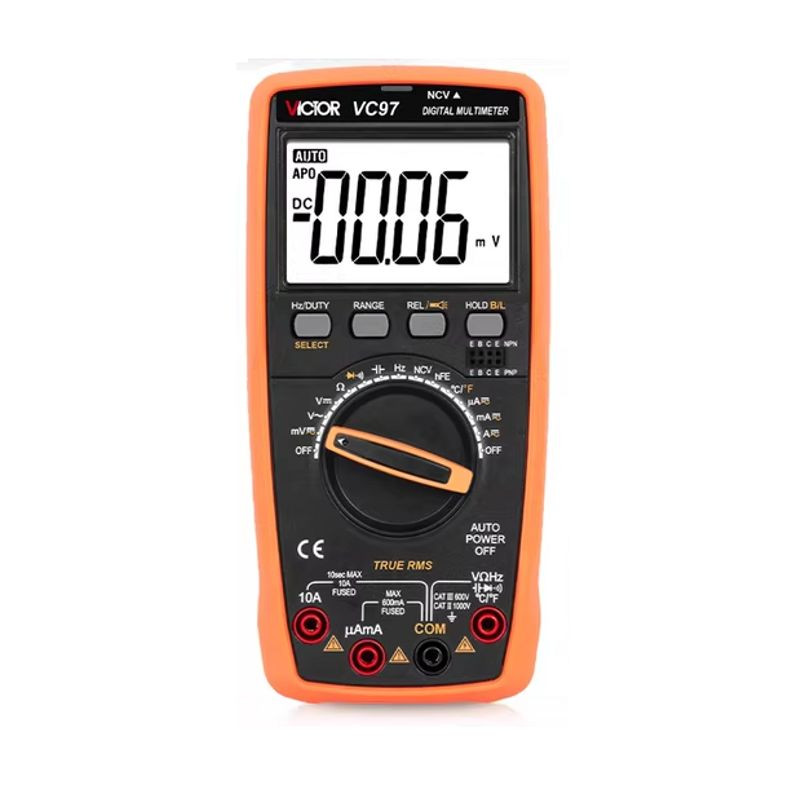

DIGITAL AUTO RANGE MULTIMETER VC97

All pictures are for illustrative purposes only.

PID# 10920

CA$90.00
Out of Stock
Quantity

Request a large quantity quote

Description

Features:
  • ·New type holster, streamline design.
  • · Large LCD makes the reading clearly.
  • ·Metallic screen board with stronger antimagnetic and anti-interferential function.
  • ·Full function protection, anti-high voltage circuit design.



Specifications:



Basic Function

Range

Accuracy

DC Voltage

400mV/4V/40V/400V/1000V

±(0.5%+4)

AC Voltage

400mV/4V/40V/400V/750V

±(0.8%+10)

DC Current

400uA/4000uA/40mA/400mA/10A

±(1%+10)

AC Current

400uA/4000uA/40mA/400mA/10A

±(1.5%+10)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(0.8%+4)

Capacitance

10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF

±(2.5%+20)

Frequency

100/1000/10k/100k/1M/30MHz

±(0.5%+10)

Celsius

-20~1000`C

±(1.0%+5)



Special Function

Diode

√

Transistor

√

Continuity buzzer

√

Low battery indication

√

Data Hold

√

Auto power off

√

Analog bar graph

√

Shockproof protection

√

Function protection

1%~99.%

Input impedance

10MΩ

Auto power off

3 times/s

Analog bar graph

40~400Hz

Shockproof protection

Auto range

Function protection

3999

Input impedance

65×35mm

Battery

3V (1.5V×2)
