DUAL RELAY, CMA562H-S-DC12V-C, 12VDC COIL, DPDT

All pictures are for illustrative purposes only.

PID# 33029

10,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

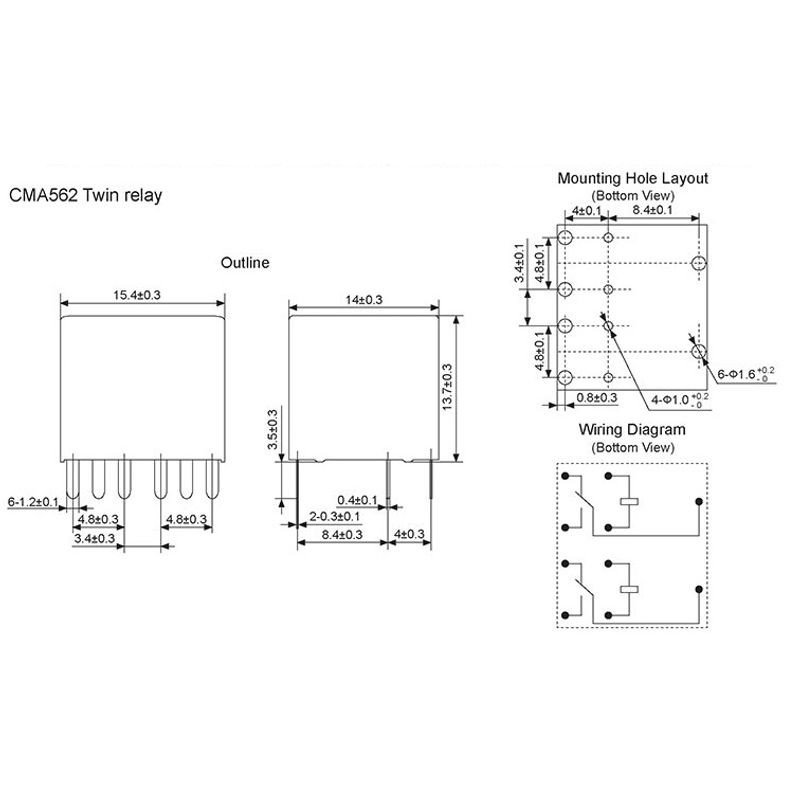

Ultra-small automotive relay CMA562 double relay. CMA562 size: 14×15.4×13.7 (mm) motor load 25A (peak current) can provide reflow soldering type relay enameled wire temperature resistance up to 180 ℃

contact form
CMA562:2×1C
Contact load CMA56:
Motor: 25A (impact) 14VDC
Resistive: 20A 14VDC[b
Maximum Switching Voltage 16VDC
Maximum switching current
CMA562:2×30A
Maximum Switching Power
CMA562:2×350W
Minimum switching voltage and current -
Coil parameters
coil voltage 6～24VDC
Coil power 0.64W
0.8W

performance parameters
Dielectric withstand voltage between contacts 550VAC,1min
Between contact and coil 550VAC,1min
Electrical life (times) 100,000
ambient temperature -40°C to +105°C (common type)
-40°C to +125°C (reflow soldering type)
Lead-out mode printed board
