DIGITAL MULTIMETER VC9808+

All pictures are for illustrative purposes only.

PID# 10918

75,00 CA$
Free shipping: On orders over $120 within BC

1 In Stock

Order now, processed by tomorrow

Quantité

Request a large quantity quote

Description

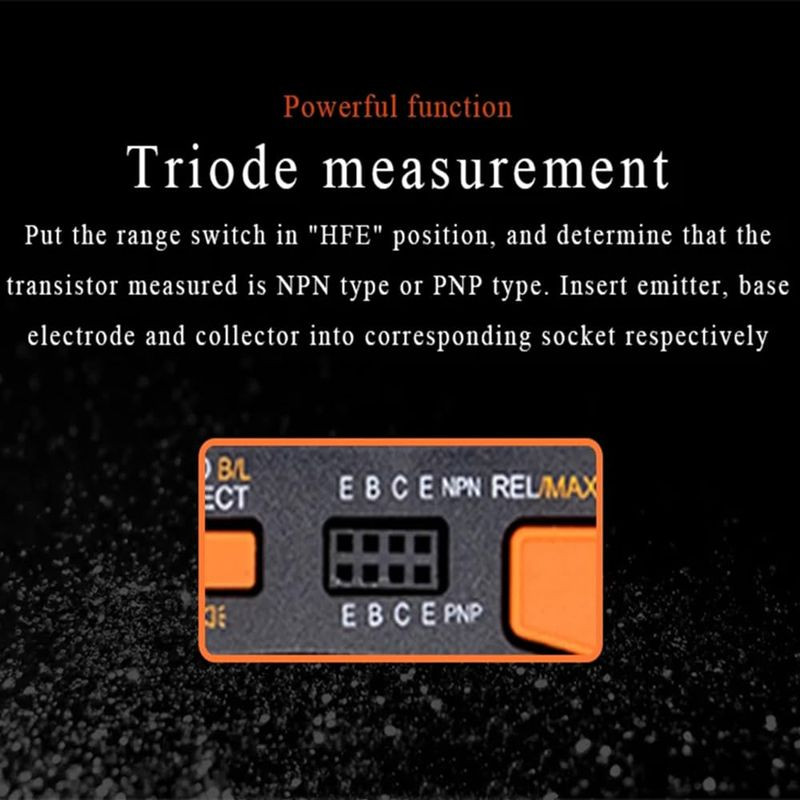

The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, inductance, temperature and frequency, and diode, triode and continuity test. The instrument takes dual-integral A/D converter as key point, is an excellent tool.

Features:

Product Model:VC9808+
Product Name:Digital Multimeter VC9808+
Products:Digital Multimeter

Detail:



VC9808+  3 1/2 Digital Multimeter

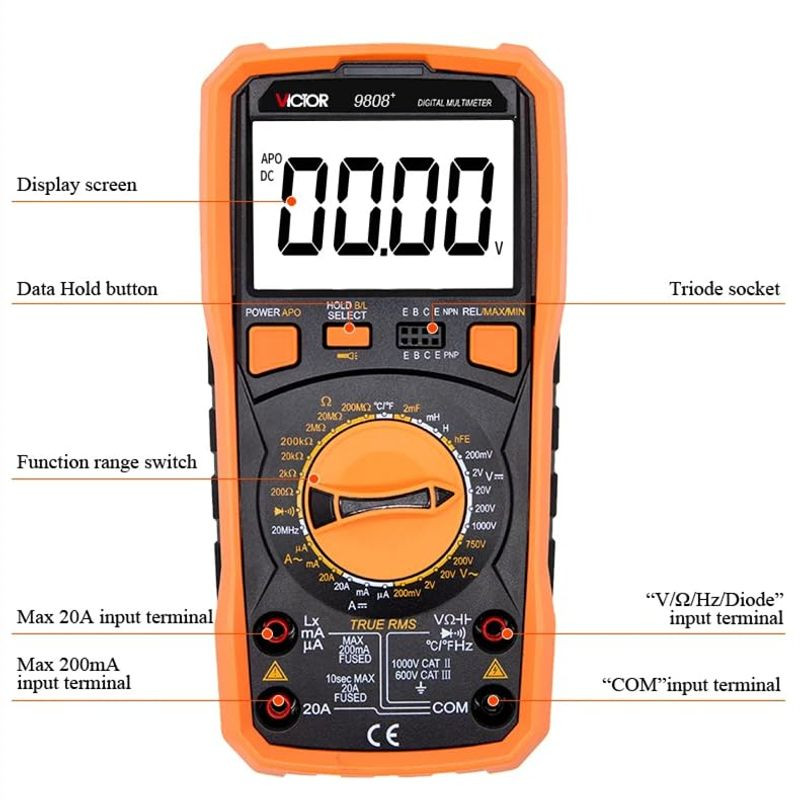

·New type holster, streamline design.
·Large LCD makes the reading clearly.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·No power off under natural operation.
·Full function protection, anti-high voltage circuit design.
·New type battery case design, it’s easy to change battery.

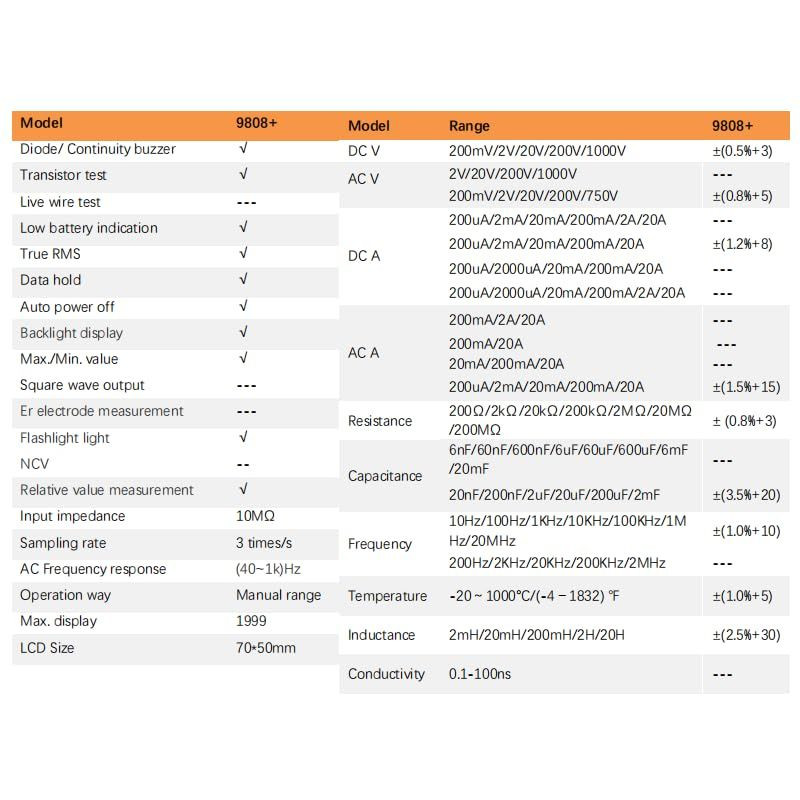

Basic Function

Range

Accuracy

DC Voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC Voltage

200mV/2V/20V/200V/750V

±(0.8%+5)

DC Current

2mA/20mA/200mA/20A

±(0.8%+10)

AC Current

2mA/20mA/200mA/20A

±(1.0%+15)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ



200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ

±(0.8%+3)

Inductance

2mH/20mH/200mH/2H/20H

±(2.5%+30)

Capacitance

20nF/200nF/2uF/20uF/200uF

±(2.5%+20)

Frequency

200kHz



2kHz/20kHz/200kHz/2000kHz/10MHz

±(1.0%+10)

Celsius

(-20~1000)

±(1.0%+5)

Fahrenheit

(0~1832)









Special Function

Diode

√

Transistor test

√

Continuity buzzer

√

Low battery indication

√

Hold

Peak hold

Auto power off

√

Backlight

√

Function protection

√

Shockproof protection

√

Input impedance

10MΩ

Sampling rate

3 times/s

AC Frequency response

40~400Hz

Operation way

Manual range

Max. Display

1999

LCD size

70×50mm

Battery

9V (6F22)

Product color

Case: dark gray; Holster color : yellow

Product Net Weight

Approx:320g

Product Dimension

190×88.5×27.5mm

Standard Accessories

Test leads/battery/instruction manual/TP01

temperature probe(with temperature function)

Standard inner packing

Color box

Standard Quantity Per Carton

30 pcs

Carton size

396×312×433mm

Standard Gross Weight

Approx:23kg
