AUTO RELAY, PANASONIC, CM1-R-12V, 12VDC, 35A, SPDT

All pictures are for illustrative purposes only.

PID# 160768

10,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

• Micro-ISO type terminals

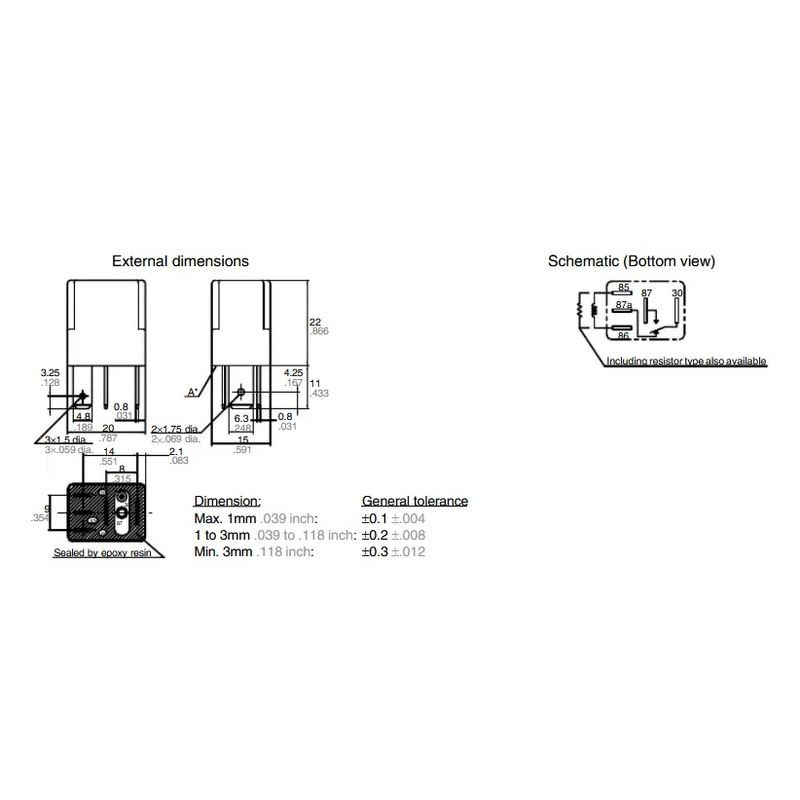

• Small size: 20 mm(L) x 15 mm(W) x 22 mm(H)   / .787 inch(L) x .591 inch(L) x .866 inch(H)

• Wide line-up PC board and Plug-in type, Resistor inside type.

• Compact and high-capacity 35A load switching N.O.: 35A 14V DC, N.C.: 20A 14V DC (Sealed type) Min. 5 x 10^-4 N.O.: 35A 14V DC, N.C.: 20A 14V DC (Flux-resistant type) Min. 105 *12V DC type

• Uses international standard ISO terminal arrangement. The ISO international standard terminal arrangement is used.

TYPICAL APPLICATIONS

• Fan motor

• Heater

• Head lump

• Air Compressor

• ABS

• Blower fan

• Defogger, etc.
