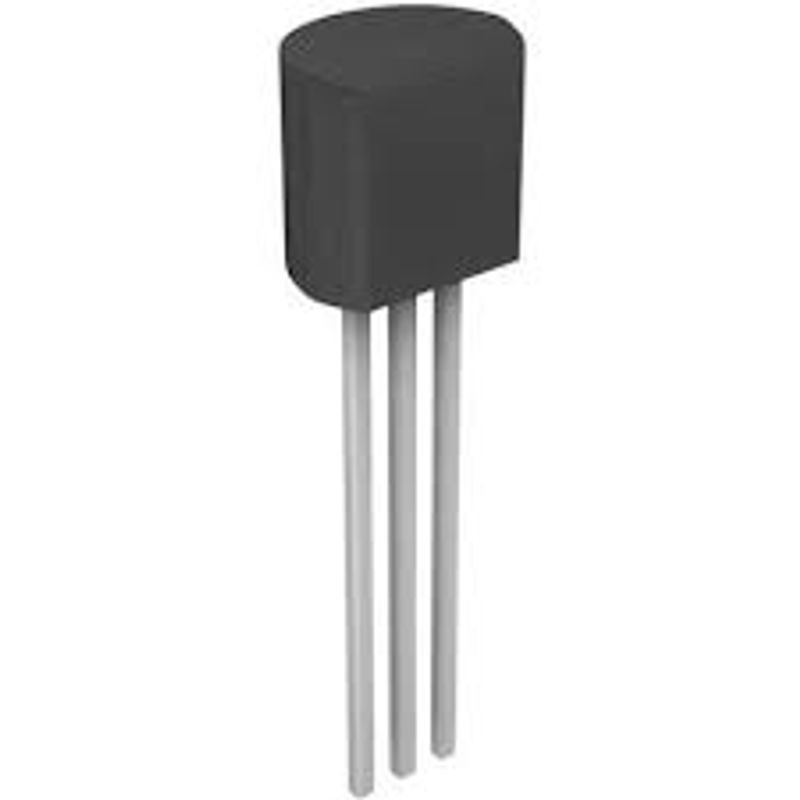

IC TRANSISTOR, MPS8099 NPN 80V 0.5A TO92

  • New
All pictures are for illustrative purposes only.

PID# 7413

CA$1.20
Free shipping: On orders over $120 within BC

9 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Mounting Style:    Through Hole
Package / Case:    TO-92-3
Transistor Polarity:    NPN
Configuration:    Single
Maximum DC Collector Current:    500 mA
Collector- Emitter Voltage VCEO Max:    80 V
Collector- Base Voltage VCBO:    80 V
Emitter- Base Voltage VEBO:    4 V
Collector-Emitter Saturation Voltage:    400 mV
Pd - Power Dissipation:    625 mW
Gain Bandwidth Product fT:    150 MHz
Minimum Operating Temperature:    - 55 C
Maximum Operating Temperature:    + 150 C
Continuous Collector Current:    500 mA
