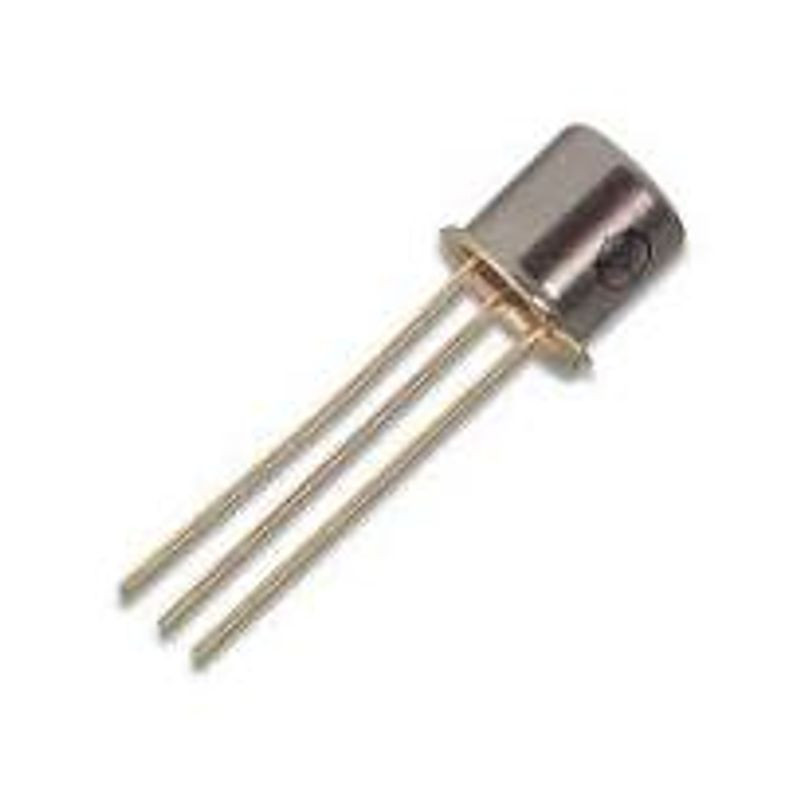

RF TRANSISTOR, MM4049, PNP, 10V 30mA

All pictures are for illustrative purposes only.

PID# 71241

CA$10.00
Free shipping: On orders over $120 within BC

8 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Absolute Maximum Ratings

Maximum Collector-Base Voltage |Vcb|: 15 V

Maximum Collector-Emitter Voltage |Vce|: 10 V

Maximum Emitter-Base Voltage |Veb|: 4 V

Maximum Collector Current |Ic max|: 0.03 A

Max. Operating Junction Temperature (Tj): 200 °C

Electrical Characteristics

Transition Frequency (ft): 4000 MHz

Collector Capacitance (Cc): 1.2 pF

Forward Current Transfer Ratio (hFE), MIN: 20

Noise Figure, dB: -

Package: TO72
