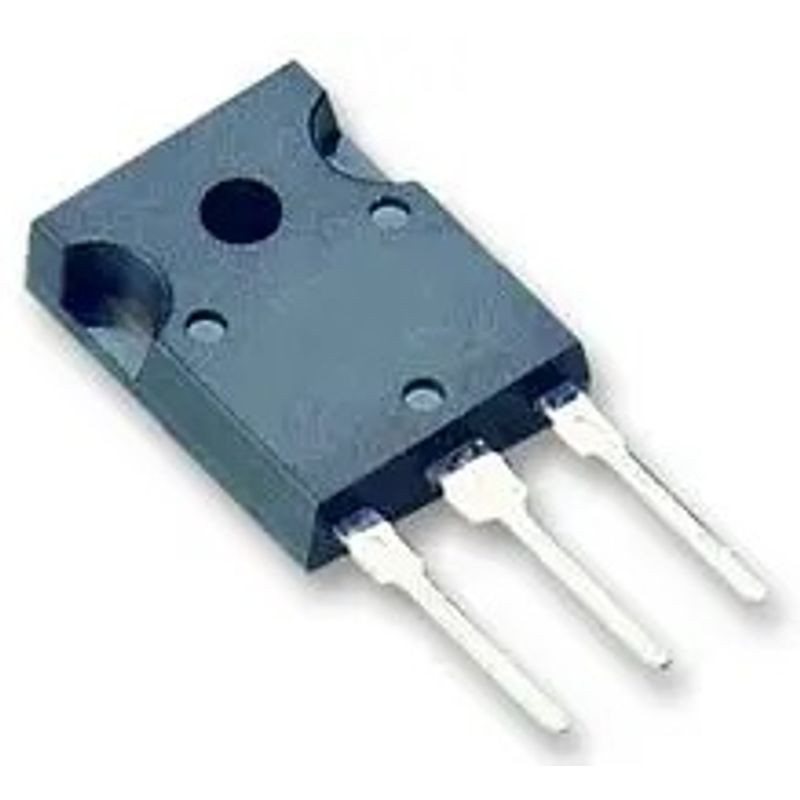

IGBT STGW20NC60 600V 60A TO-247-3

All pictures are for illustrative purposes only.

PID# 161480

CA$14.00
Free shipping: On orders over $120 within BC

4 In Stock

Order now, processed next business day

Quantity

Request a large quantity quote

Description

The STGW20NC60VD is a 600V very fast IGBT utilizes the advanced Power MESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. It is suitable for use with high frequency inverters, UPS, motor drive, SMPS and PFC in both hard switch and resonant topologies.

  • High current capability
  • High frequency operation up to 50KHz
  • Very soft ultra fast recovery anti-parallel diode
  • ±20V Gate to emitter voltage
  • 0.63°C/W IGBT thermal resistance, junction to case
  • 1.5°C/W IGBT thermal resistance, junction to case
  • 50°C/W Thermal resistance, junction to ambient

Applications

Power Management, Motor Drive & Control, Industrial

Technical Specifications

DC Collector Current: 60A

Collector Emitter Saturation Voltage: 1.7V

Power Dissipation Pd: 200W

Collector Emitter Voltage V(br)ceo: 600V

Transistor Case Style: TO-247

Operating Temperature Max: 150°C

Continuous Collector Current: 60A

Collector Emitter Saturation Voltage Vce(on): 1.7V

Power Dissipation: 200W

Collector Emitter Voltage Max: 600V

No. of Pins: 3Pins

Transistor Mounting: Through Hole
