RELAY, DS2E-S-DC48V, 48VDC COIL, DPDT, 2A

All pictures are for illustrative purposes only.

PID# 33020

CA$5.75 EACH
Free shipping: On orders over $120 within BC

3 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Spec Detail

ItemSpecifications
Part Model AGY2325
Terminal shape Standard PC board terminal
Contact arrangement 2 Form C
Contact material Ag+Au clad
Operating function Single side stable type
Nominal operating power 300mW
Nominal coil voltage 48V DC
Pick-up voltage (at20°C 68°F) 70%V or less of nominal voltage (Initial)
Drop-out voltage (at20°C 68°F) 10%V or more of nominal voltage (Initial)
Max.switching current 2A
Breakdown voltage (Initial) : Between open contacts 750 Vrms for 1min. (Detection current: 10mA.)
Breakdown voltage (Initial) : Between contact and coil 1,000 Vrms for 1min. (Detection current: 10mA.)
Breakdown voltage (Initial) : Between contact sets 1,000 Vrms for 1min. (Detection current: 10mA.)
Surge breakdown voltage (Initial): Between contacts and coil 1,500V (FCC)
Expected life : Mechanical Min. 108
Expected life : Electrical Min. 5×105 (1A 30V DC)
Min. 1×105 (2A 30V DC)
Conditions Ambient temperature: –40 to +70°C –40 to +158°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)

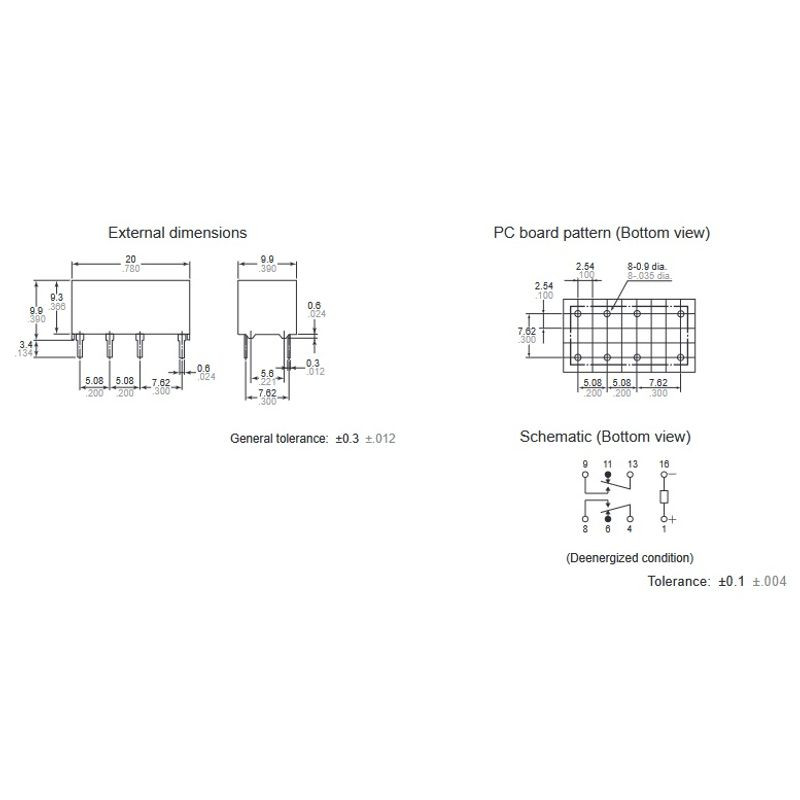

Height (mm) 9.9
Unit weight Approx. 4g .14oz

Specifications

3 Items

Features

Coil Voltage 48VDC
Contact Configuration DPDT
