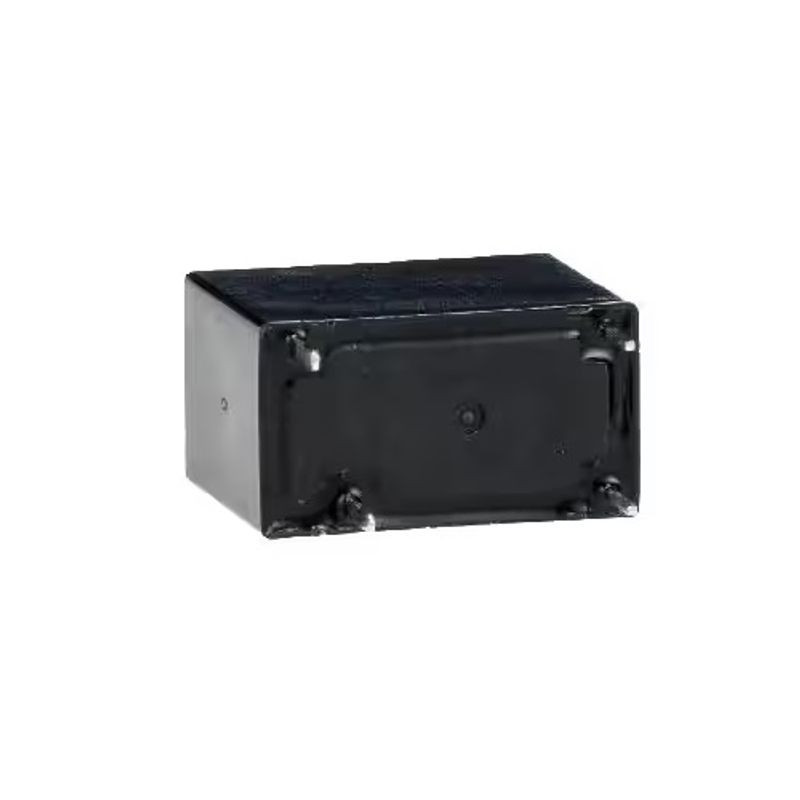

RELAY, TE, T77S1D10-24, MINI, 24VDC COIL, SPST 10A

All pictures are for illustrative purposes only.

PID# 32721

CA$6.50 EACH
Free shipping: On orders over $120 within BC

4 In Stock

Order now, processed next business day

Quantity

Request a large quantity quote

Description

RELAY, TE, T77S1D10-24, MINI, 24VDC COIL, SPST 10A

RATING:
10A 120V~
10A 30V=

24VDC COIL

Relay Type General Purpose
Coil Type Non Latching
Coil Current 18.75mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class F, Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 450 mW
Coil Resistance 1.28 kOhms
Operating Temperature -30°C ~ 85°C

Specifications

4 Items

Features

Coil Voltage 24VDC
Contact Configuration SPST-NO
