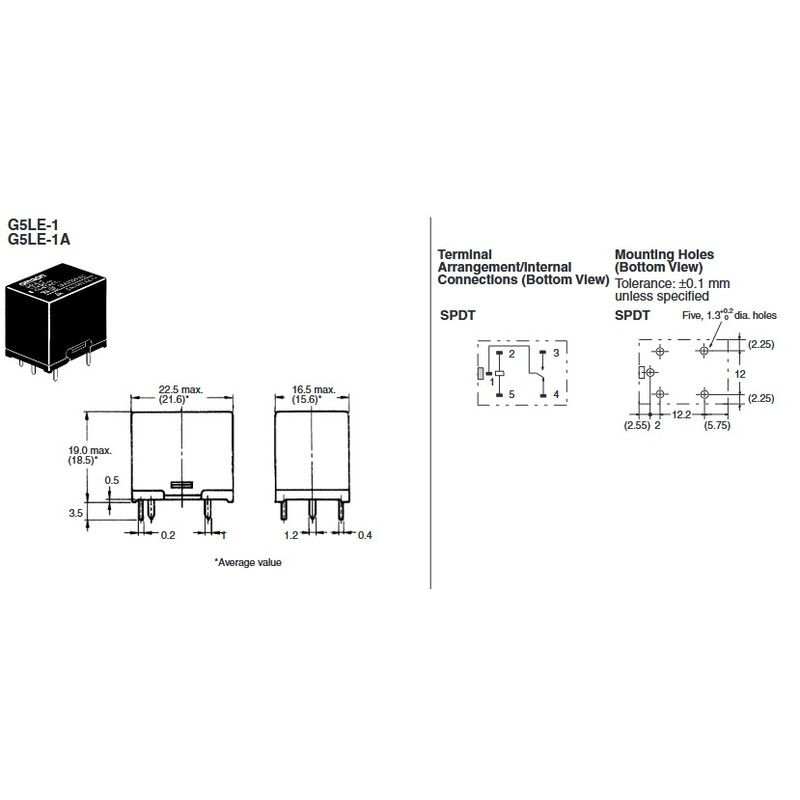

RELAY, OMRON, G5LE-1-E, 12VDC, SPDT, 16A FORM C

All pictures are for illustrative purposes only.

PID# 160951

CA$6.50
Free shipping: On orders over $120 within BC

8 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Mounting Type: Through Hole

Coil Voltage: 12VDC

Contact Form: SPDT (1 Form C)

Contact Rating (Current): 16 A

Switching Voltage: 250VAC - Max

Coil Current: 33.3 mA

Coil Type: Non Latching

Termination Style: PC Pin

Seal Rating: Sealed - Flux Protection

Coil Insulation: Class F

Must Operate Voltage: 9 VDC

Must Release Voltage: 1.2 VDC

Operate Time: 10 ms

Release Time: 5 ms

Operating Temperature: -40°C ~ 85°C

Contact Material: Silver Tin Indium (AgSnIn)

Relay Type: General Purpose

Coil Resistance: 360 Ohms

DATASHEET
