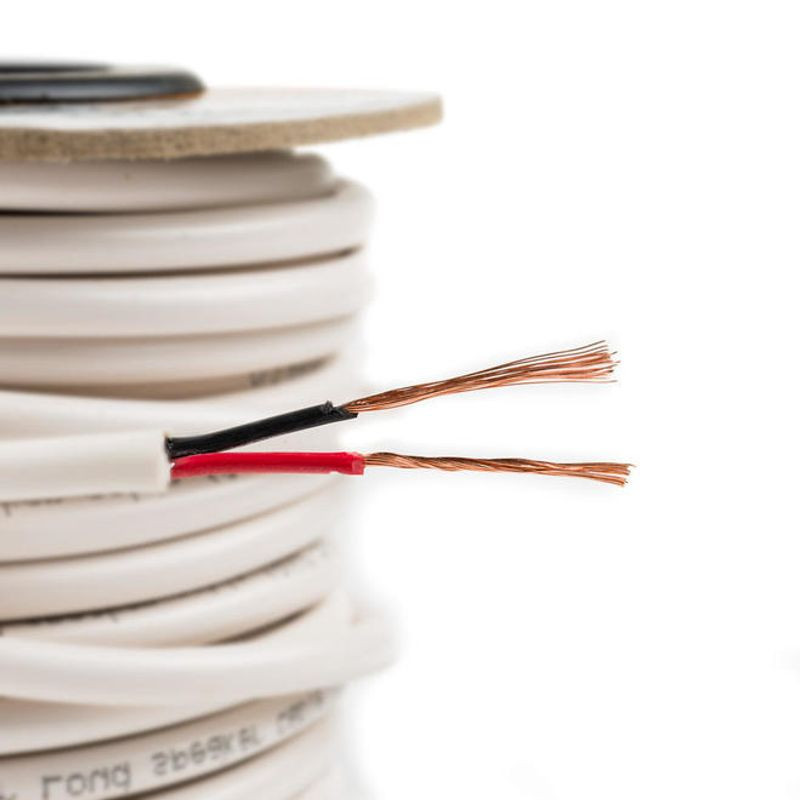

SPEAKER WIRE W/ WHITE JACKET, 2X12AWG, CL2/FT4 - PER FOOT

All pictures are for illustrative purposes only.

PID# 23857

CA$1.00/FOOT
Free shipping: On orders over $120 within BC

276 In Stock

Order now, processed by tomorrow

Variants:
2x18AWG
2x16AWG
2x14AWG
2x12AWG
4x16AWG
4x14AWG
Quantity

Quantity Price(CAD)
1 - 249 $1.00 /FOOT
250+ $0.85 /FOOT
Request a large quantity quote

Description

12AWG CL2 Rated 2-Conductor Loud Speaker Cable (For In-Wall Installation)

Get the most out of your home audio system with high quality, oxygen-free copper speaker wire

This wire features two conductors made of high purity (greater than 99.95% pure), oxygen-free copper. Each conductor is jacketed with color-coded PVC for easy polarity identification. The entire cable assembly is jacketed in a white, CL2-rated PVC material. The CL2 rating indicates that the cable complies with fire safety and insurance requirements, making it safe for use inside the walls of residential class buildings.

Specifications

Cable Type Loudspeaker cable
Conduit High Purity, Oxygen-free Copper
Gauge 12AWG
Strand count 65 wires
Strand size 0.254mm +/- 0.008
Outer Diameter 7.8mm
Twist type Multi-twist, rope lay
Outer Jacket Color White
Polarity markers Yes, Inner conduits are covered by red and black jacket.
Rip cord Nylon thread
Conductor resistance (20°C) Max                                                                                   5.43Ω/KM
Insulation resistance (20°C) Min 0.75Ω/KM
Spark Test 3.0KV/ Sec Nobreaking
Cold bend test - 10±1°C/4HR No Cracking
Heat shock test 121±1°C/1HR NO Cracking
Jacket marking E323003 (UL)C(UL) Audio Cable 12AWG*2 Stranded  XXFT CM Or CL2
UL listed CL2 rated

Specifications

276 Items

Features

Colour White
Wire Size 12AWG
Wire Type Stranded Wire
Insulation Material PVC
Wire Length Per Foot
Number of Conductors 2 Conductors
