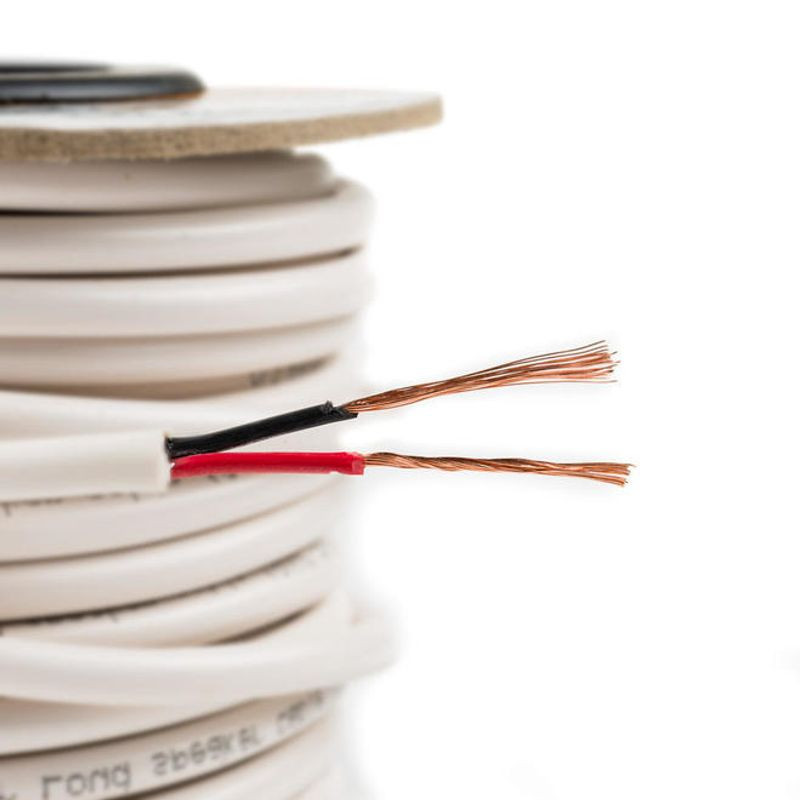

SPEAKER WIRE W/ WHITE JACKET, 2X16AWG, CL2/FT4 - PER FOOT

All pictures are for illustrative purposes only.

PID# 23854

CA$0.75/FOOT
Free shipping: On orders over $120 within BC

950 In Stock

Order now, processed by tomorrow

Variants:
2x18AWG
2x16AWG
2x14AWG
2x12AWG
4x16AWG
4x14AWG
Quantity

Quantity Price(CAD)
1 - 99 $0.75 /FOOT
100 - 249 $0.70 /FOOT
250 - 499 $0.65 /FOOT
500+ $0.58 /FOOT
Request a large quantity quote

Description

For In-Wall Installation

Get the most out of your home audio system with high quality, oxygen-free, pure bare copper speaker wire.

This speaker wire features four conductors made of high purity (greater than 99.95% pure), oxygen-free bare copper. Pure Bare Copper is a superior conductor to the copper clad aluminum (CCA) conductors used in most other inexpensive speaker wire. CCA is only about 68% as conductive as pure bare copper. This additional resistance is added to the impedance of your speakers and can negatively effect the sound.

For the wire to have no audible effect, the total wire resistance should be no more than 5% of the lowest impedance of your speakers. Even speakers rated for a nominal 8-ohms, may dip to as low as 4-ohms at some frequencies, which further reduces the total cable resistance allowed in the wire. Using Pure Bare Copper speaker wire ensures that the total load put on the amplifier remains as close as possible to the impedance curve of your speakers.

For example, a 16AWG 2-conductor Pure Bare Copper speaker wire has a total resistance of 0.803 ohms per 100 feet (both directions must be considered). By comparison, a 16AWG 2-conductor CCA speaker wire has a total resistance of 1.181 ohms per 100 feet. Assuming 4 ohms is the lowest impedance of your speakers, a speaker wire run can be no more 0.2-ohms total. 20 feet of 16AWG Pure Bare Copper would be 0.1606 ohms, well under the 0.2-ohm limit. On the other hand, 20 feet of 16AWG CCA would be 0.2362 ohms, well OVER the 0.2-ohm limit.

Each conductor is jacketed with color-coded PVC for easy polarity identification. The entire cable assembly is jacketed in a white, CL2-rated PVC material. The CL2 rating indicates that the cable complies with fire safety and insurance requirements, making it safe for use inside the walls of residential class buildings.

PRODUCT HIGHLIGHTS

16AWG 2-conductor

Oxygen-free bare copper

CL2-rated PVC material

Specifications

Cable Type Loudspeaker cable
Conduit High Purity, Oxygen-free Copper
Gauge 16AWG
Strand count 26 wires
Strand size 0.254mm +/- 0.008
Conductor count 2
Outer Diameter 6.2mm
Twist type Multi-twist, rope lay
Outer Jacket Color White
Polarity marker Yes, inner conduits are covered by red and black jacket.
Rip cord Nylon thread
Conductor resistance (20°C) Max                                                                                       14.6Ω/KM
Insulation resistance (20°C℃) Min 0.75Ω/KM
Spark Test 3.0KV/ Sec NOBREAKING
Cold bend test - 10±1°C/4HR NO CRACKING
Heat shock test 121±1°C/1HR NO CRACKING
Jacket marking E323003 (UL)C(UL) AUDIO CABLE 16AWG*2 STRANDED XXFT CM OR CL2
UL listed CL2 rated

Specifications

950 Items

Features

Colour White
Wire Size 16AWG
Wire Type Stranded Wire
Insulation Material PVC
Wire Length Per Foot
Number of Conductors 2 Conductors
