DIY, MINI AUDIO SYNC MUSIC TESLA COIL KIT, 12V

MINI AUDIO SYNC MUSIC TESLA COIL KIT WITH POWER SUPPLY MINI AUDIO SYNC MUSIC TESLA COIL KIT WITH POWER SUPPLY MINI AUDIO SYNC MUSIC TESLA COIL KIT WITH POWER SUPPLY
All pictures are for illustrative purposes only.
MINI AUDIO SYNC MUSIC TESLA COIL KIT WITH POWER SUPPLY MINI AUDIO SYNC MUSIC TESLA COIL KIT WITH POWER SUPPLY MINI AUDIO SYNC MUSIC TESLA COIL KIT WITH POWER SUPPLY

PID# 16961

CA$15.00/KIT
Free shipping: On orders over $120 within BC

3 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

This kit is an electronic physics experiment kit. For personal safety, those who do not have safety awareness and sufficient circuit knowledge should purchase it with caution!

1. After welding, use a multimeter to check whether the input power is short-circuited. Confirm that there is no problem with welding before powering on. This product is safe and has low power. You will not be injured by electric shock, but it is not recommended to touch the arc on the top of the coil, as it will cause a burning sensation.

2. Do not touch the heat sink after being powered on for a long time. The temperature is very high, especially when using 24V high voltage. If necessary, please add a cooling fan to dissipate the heat. If it is too hot due to long working time, please turn it off for a while before powering it on.

3. It is recommended not to place your body or other objects close to the coil when the Tesla coil is working. That is, leave no space within half a meter around the coil. Other objects, as good conductors, will make the coil form a good loop and absorb the coil energy, making the Tesla coil demonstration effect worse or even impossible to demonstrate!

4. Do not place mobile phones, MP3 and other electronic devices close to the coil, otherwise the high-frequency magnetic field generated by the coil will interfere, causing mobile phones, MP3 and other devices to malfunction or even be damaged!

5. This product is only for DIY learning of Tesla principles. It cannot be powered on for a long time when unattended to avoid overheating and short circuit causing accidents.  Please pay attention during operation.

Because it is electromagnetic sound, the sound will be a little small arc when music plays the sound produced by the arc pushing the air

Tesla functions:

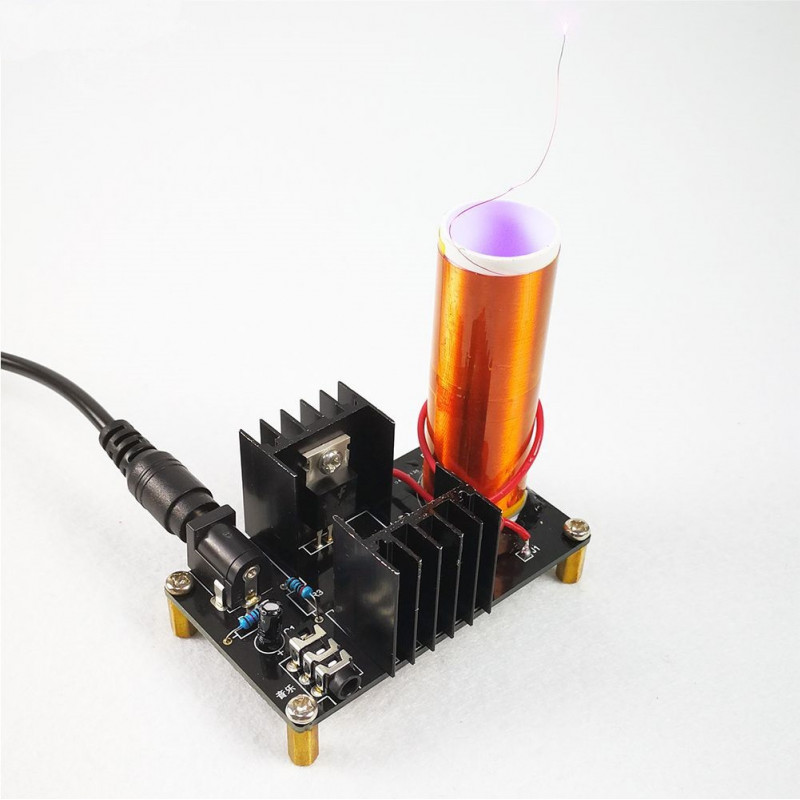

1. Tesla arc generation function: After power on, the tail wire will generate an arc, which is beautiful. The arc can also ignite!

2. Tesla remote lighting function: After the Tesla coil is powered on, it can light up the fluorescent lamp remotely!

3. Tesla coil includes music playback function: The arc excites the air to become plasma, which generates air vibration and sounds. It is a new concept speaker! It can play mobile phone/computer music, but the sound is relatively small. It is suitable for watching the magical arc and listening to music comfortably in the dead of night.

4.Tesla coil function parameters: Voltage input 15-24V DC, current 2A, the heat dissipation is relatively large when working, so the heat sink is relatively hot! When in operations, be careful not to touch the heat sink with your hands.

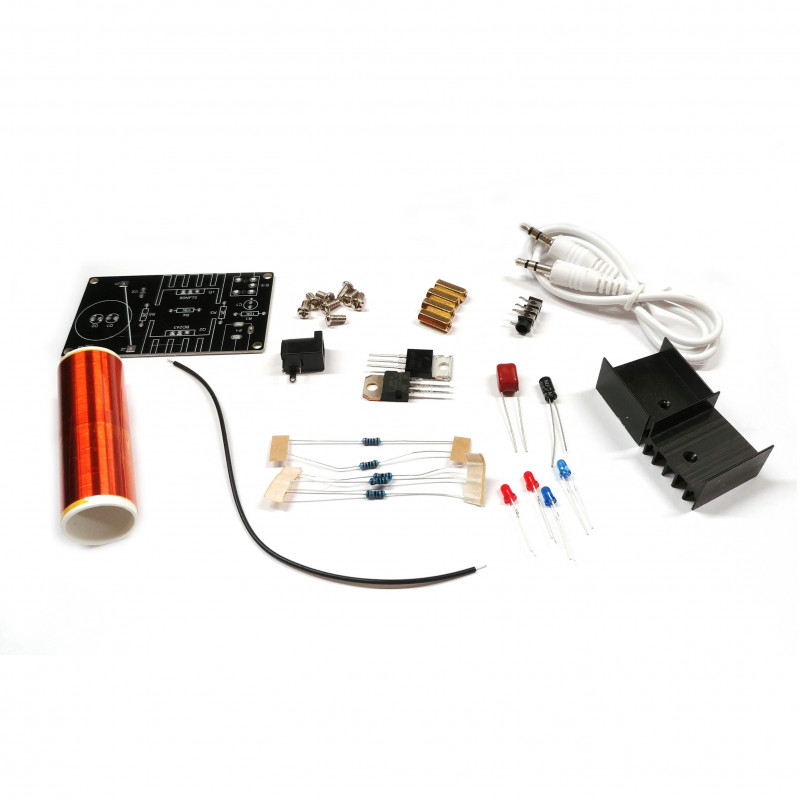

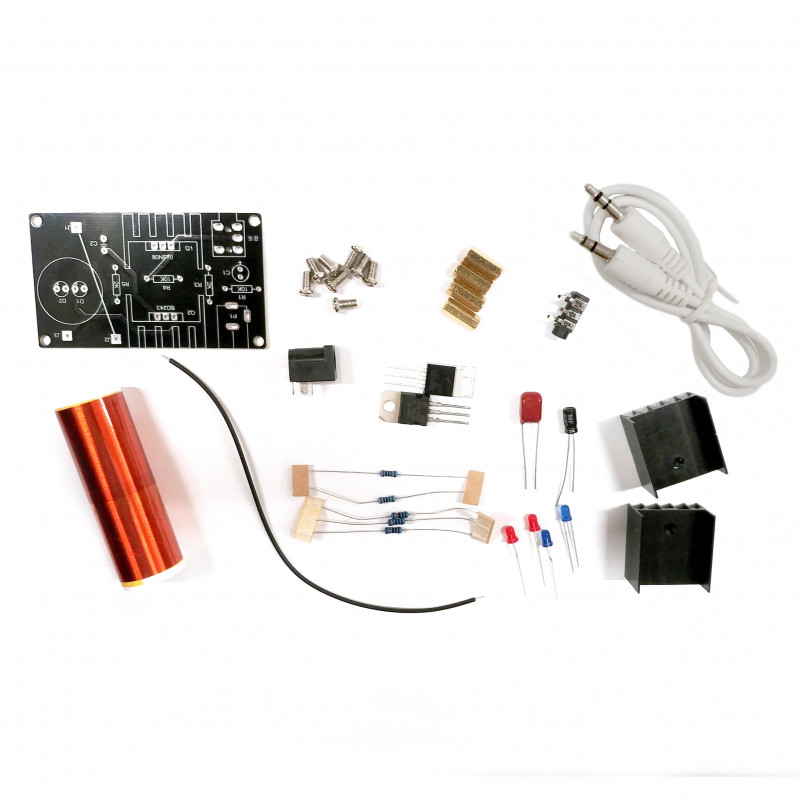

Packing list:

Electrolytic capacitor 10uF C1 x1

105 capacitor C2 x1

3mm red LED D1 x1

3mm blue LED D2 x1

10cm wire J2, J3 x1

Tesla Coil P1 x1

80NF70 Q1 x1

BD243 Q2 x1

10k resistor R1, R4 x2

2k resistor R3, R5 x2

Audio jack x1

3.5mm audio cable x1

M3x12 Standoff F/F  x4

M3x6 screws x4

PCB board x1

Heat sink x2
