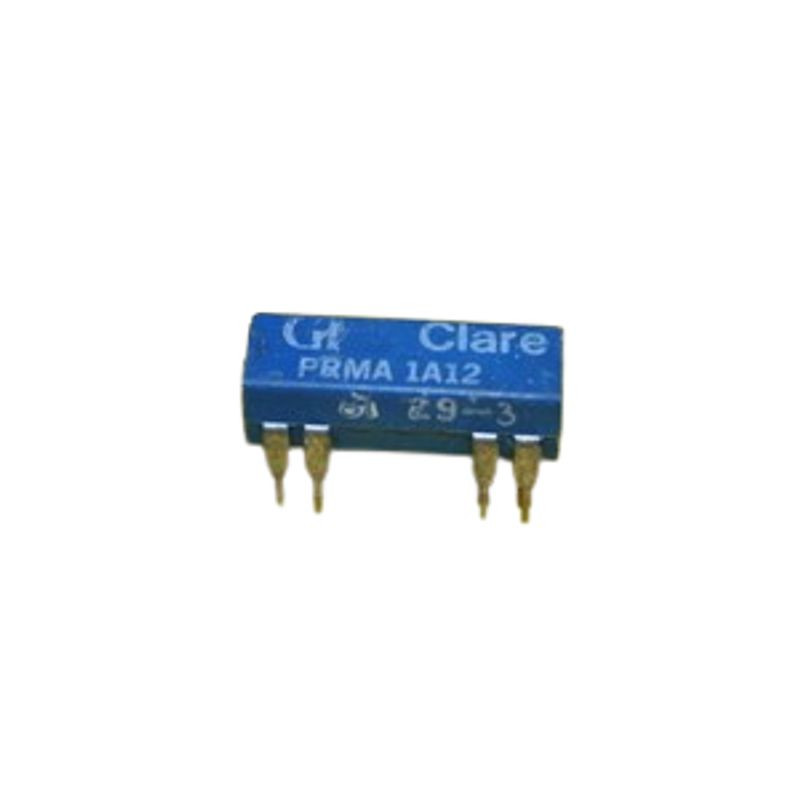

REED RELAY 12V 0.5A HE721A1210

  • New
All pictures are for illustrative purposes only.

PID# 3456

CA$5.50
Free shipping: On orders over $120 within BC

3 In Stock

Order now, processed next business day

Variants:
5vdc
12vdc
Quantity

Request a large quantity quote

Description

Mounting Type: Through Hole

Coil Voltage: 12VDC

Contact Form: SPST-NO (1 Form A)

Contact Rating (Current): 500 mA

Switching Voltage: 200VAC, 200VDC - Max

Coil Current: 12 mA

Coil Type: Non Latching

Termination Style: PC Pin

Must Operate Voltage: 9 VDC

Must Release Voltage: 1 VDC

Operate Time: 0.5 ms

Release Time: 0.5 ms

Operating Temperature: -40°C ~ 80°C

Coil Resistance

1 kOhms
