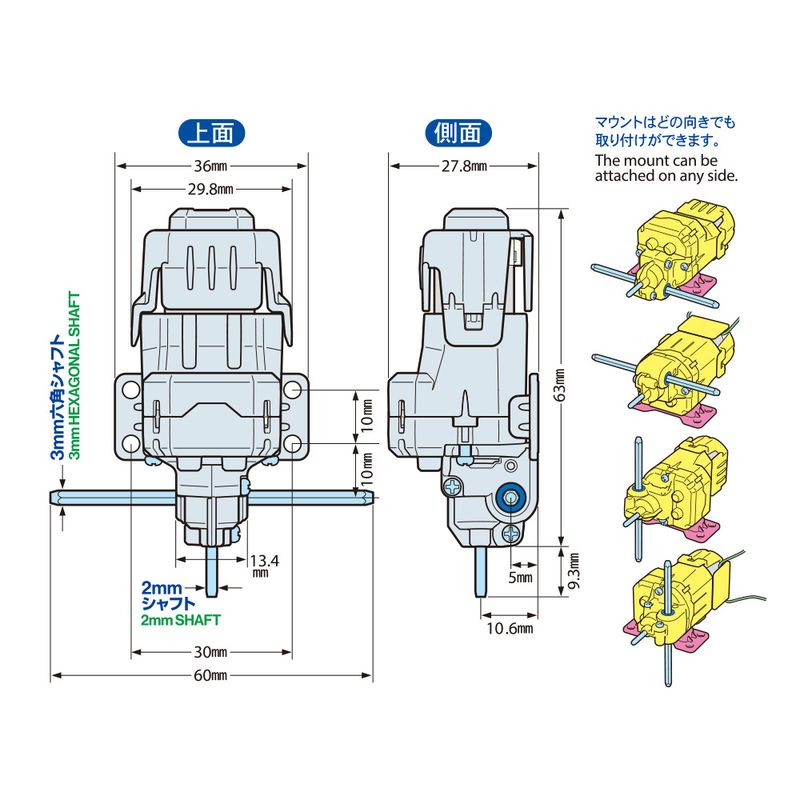

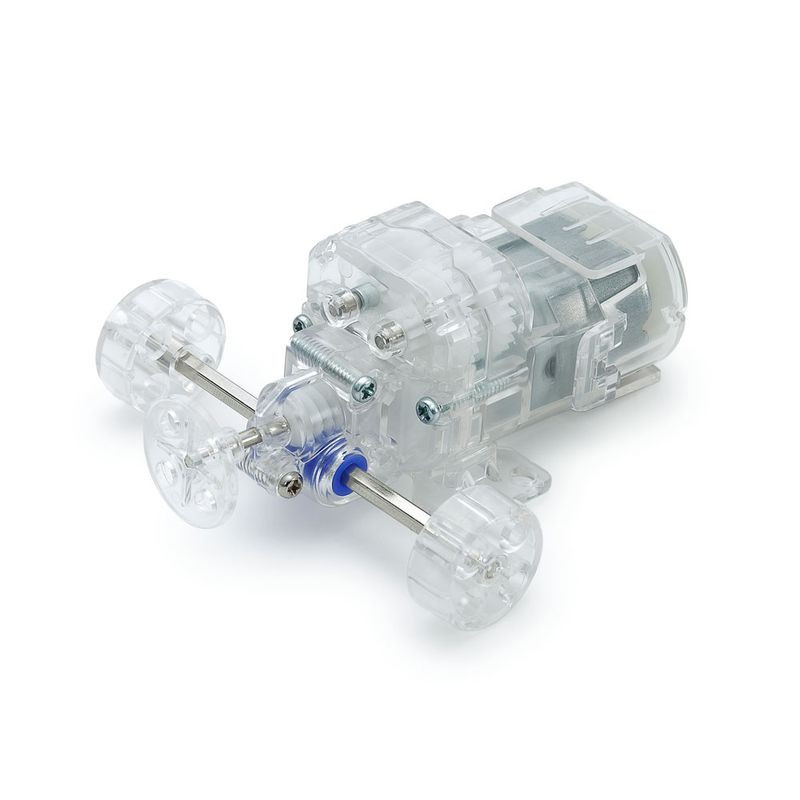

The Universal Gearbox 2 is a renewal and updated version of Item 70103 Universal Gearbox with clear ABS plastic gear case and some gears in clear ABS plastic, plus motor and gear covers. This assembly type gearbox has two output shafts (3mm hex shaft and 2mm shaft) which provide independent motion.

• Features 2mm shaft for front output and 3mm hex shaft for right and left output.
• Removable mounts can be attached on any side of the gearbox to change output direction.
• The two included mounts also allow attachment of the gearbox between plates.
• Clear ABS plastic parts ensure the visibility of internal mechanisms.
• The clutch mechanism alleviates stress when heavy load such as motor lock occurs.
• Some gear ratios have been slightly changed compared to item 70103.
• 3mm hex shaft is positioned so that it does not obstruct the universal plate.
• Includes crank plates which are compatible with 3mm hex shaft and 2mm shaft.

Click here to see the product instruction manual.
