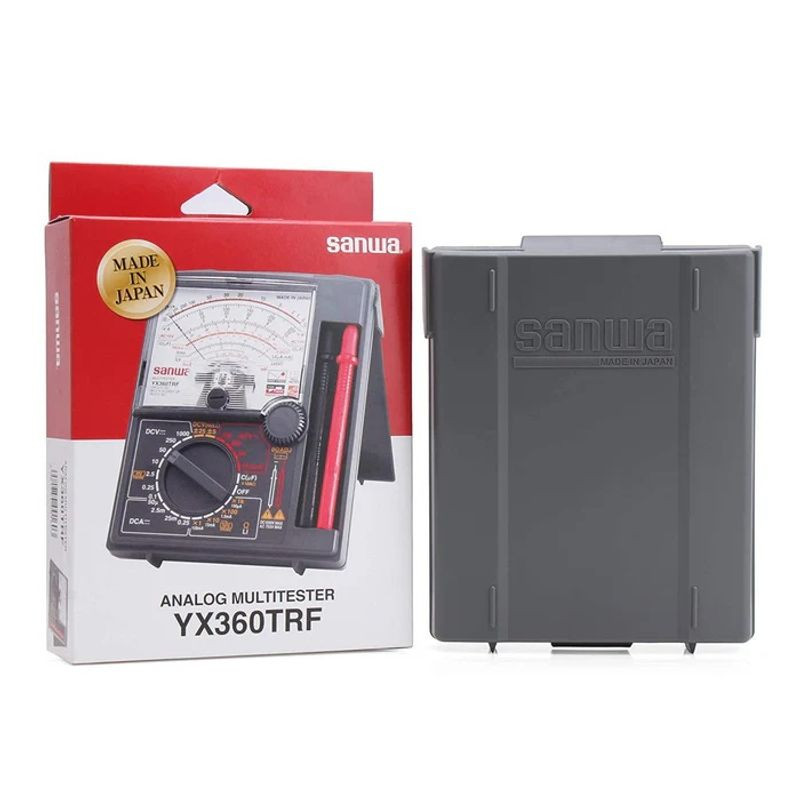

ANALOG MULTIMETER SANWA YX360TRF JAPAN

All pictures are for illustrative purposes only.

PID# 10929

CA$135.00
Free shipping: On orders over $120 within BC

1 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

A convenient multimeter with it's own built-in, shock resistant case.

The YX360TRF is a taut-band type meter designed for low-voltage circuit measurements. It can measure DCV, DCA, AC, resistance, capacitance(10uF), Load line current, Signal power in dB as well as high DC voltage of up to 25kV using an HV-10T probe (optional). When measuring DCV the meter utilizes the Null reading for ±25V with an accuracy of ±5% full-scale accuracy.

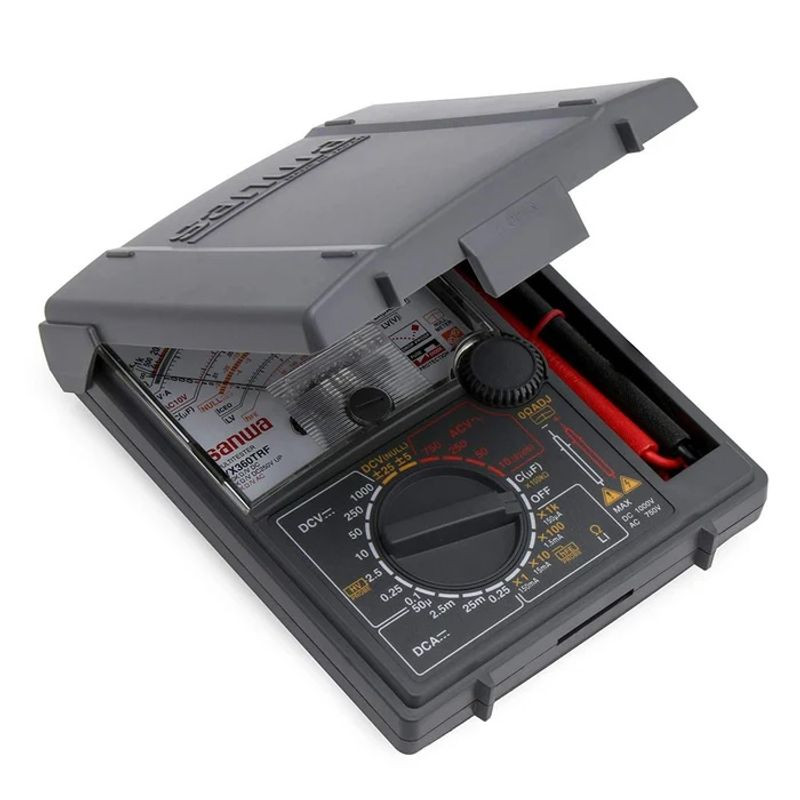

This multimeter has a solid cover that provides protection against drop shocks, and conveniently folds over to use as a tilt stand, and features a compartment for storing the attached test leads. For circuit protection, the device features a replaceable fuse rated at (250V / 0.5A).

Meter includes attached test leads and instruction manual.

  • Drop shock proof meter
  • Null (zero center) meter ±5 / ±25 in DCV
  • High resistance up to 200MΩ with low voltage
  • Solid & protective body cover that can also be used as a tilt stand
  • Capacitance, dB, LI measurement

Specifications

FunctionMeasuring RangeTolerance
DCV 0.1（20kΩ/V)
0.25/2.5/10/50
（20kΩ/V)/250/1000V（9kΩ/V)		 ±5% of full scale
±3% of full scale
DCV (NULL) ±5/25V（40kΩ/V) ±5% of full scale
ACV 10/50/250/750（9kΩ/V) ±4% of full scale
DCA 50μ/2.5m/25m/0.25A *1 ±3% of full scale
Resistance 2k/20k/200k/2MΩ (x1/x10/x100/x1k)
200MΩ (x100k)		 ±3% of arc
±5% of arc
Capacitance 10μF Approximate value
dB -10dB～+22dB (for 10VAC) ～+62dB Approximate value
Load current (LI) 0-150m/15m/1.5m/150μ/1.5μA Approximate value
DC high voltage DC25kV
(optional probe "HV-10T" is necessary)		 -
hFE 1000 at x10 range
(optional probe "HFE-6T" is necessary)		 -
Battery R6 (IEC) or UM-3 (1.5V)x2
Fuse Φ5.2x20mm (250V/0.5A)
Size/Mass H159.5×W129×D41.5mm/Approx. 320g

*The value in (　）at DCV and ACV is input resistance
**1 Not including the resistance of fuse.
