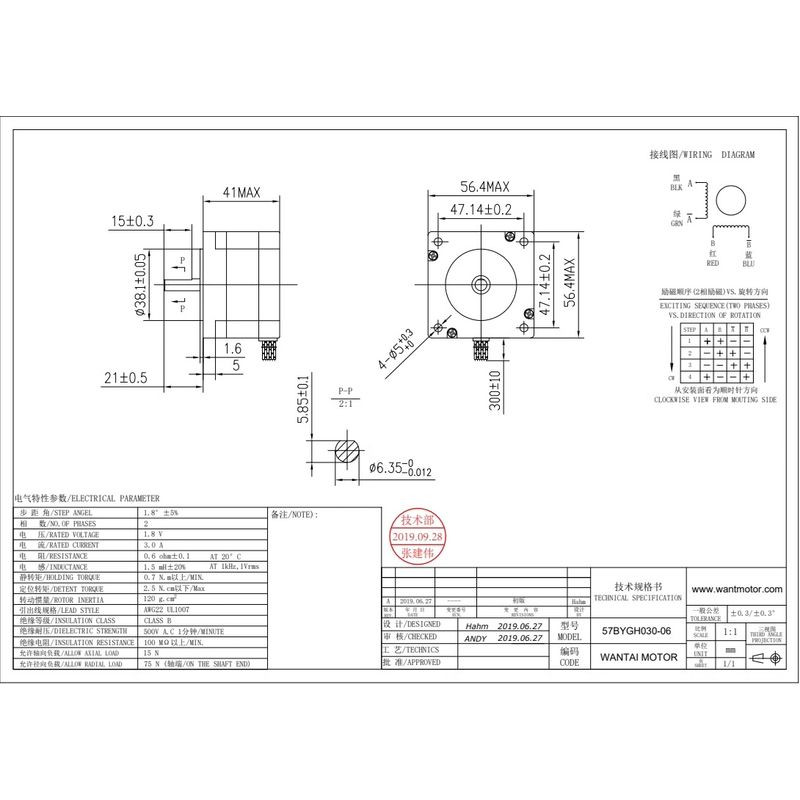

STEPPER MOTOR ,NEMA23 57BYGH030-06, 1.8 STEP, 6.35mm SHAFT, 99.12oz-in

All pictures are for illustrative purposes only.

PID# 4198

54,00 CA$ EACH
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

STEPPER MOTOR , 125OZ. IN (200 STEPS/REV) NEMA-23

Description: These steppers are a great way to get things moving, especially when positioning and repeatability is a concern.

Note: This is a Unipolar stepper, meaning that if you are going to drive it with a bipolar stepper driver, you can ignore the yellow and white leads and drive it using the remaining four.

Features:

  • Step Angle (degrees) : 1.8
  • 4-Phase
  • Rated Voltage: 3V
  • Rated Current: 2A/Phase
  • ¼" Diameter Drive Shaft
  • Holding Torque: 90N.cm
  • NEMA 23 form factor
