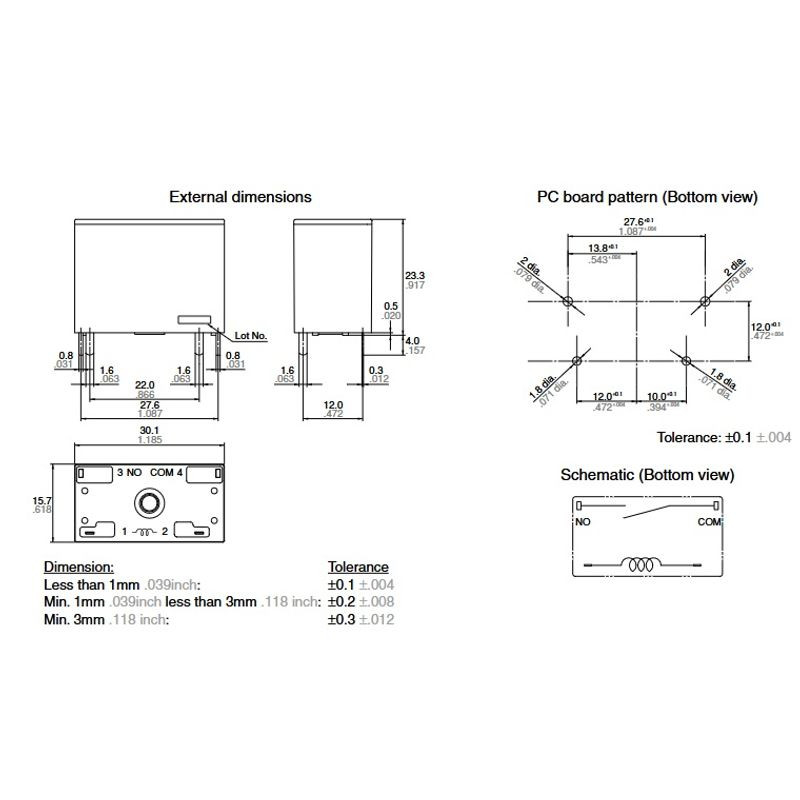

RELAY, PANASONIC, SPST-NO, 12VDC, 20A, ALF1P12

All pictures are for illustrative purposes only.

PID# 160710

7,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

The LF(ALF) series 20A Power Relay suitable for home appliances. It is ideal for compressor and inverter loads. It has creepage distance and clearances between contact and coil.
  • High insulation resistance
  • PCB and TMP types available
  • Conforms to the various safety standards

Specifications:

Coil Voltage: 12VDC

Contact Current: 25A

Product Range: LF(ALF) Series

Relay Mounting: Through Hole

Coil Type: Non Latching

Contact Voltage VAC: 277VAC

Relay Terminals: Solder

Relay Type: Power - General Purpose

Contact Material: Silver Tin Oxide

Coil Resistance: 160ohm

Applications

Industrial, Consumer Electronics
