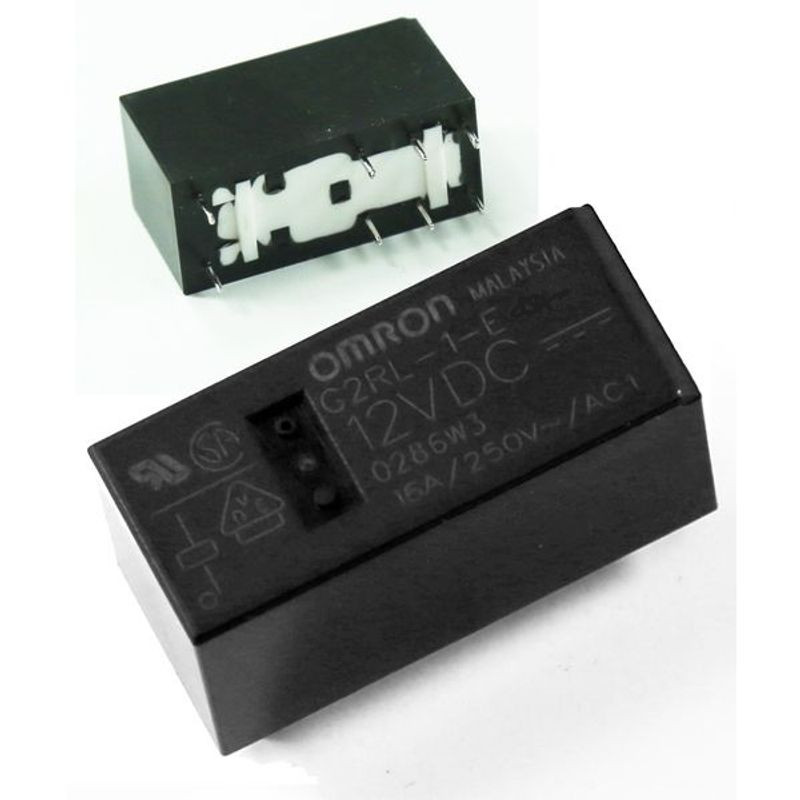

RELAY, OMRON, 12VDC 16A, SPDT, LOW PROFILE / HI-CAP, G2RL-1-E-DC12

All pictures are for illustrative purposes only.

PID# 20001

9,00 CA$ EACH
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

Coil Voltage: 12 VDC

Relay Contact Form: 1 Form C (SPDT-NO, NC)

Contact Current Rating: 16 A

Contact Termination: Solder Pin

Mounting Style: Through Hole

Switching Voltage: 440 VAC, 300 VDC

Coil Termination: Solder Pin

Coil Type: Non-Latching

Coil Resistance: 360 Ohms

Coil Current: 33.3 mA

Contact Material: Silver Alloy (Ag)

Series: G2RL

Length: 29 mm

Width: 12.7 mm

Height: 15.7 mm

Brand: Omron Electronics

Contact Form: SPDT (1 Form C)

Power Consumption: 400 mW

Specifications

10 Produits

Features

Coil Voltage 12VDC
Contact Configuration SPDT
