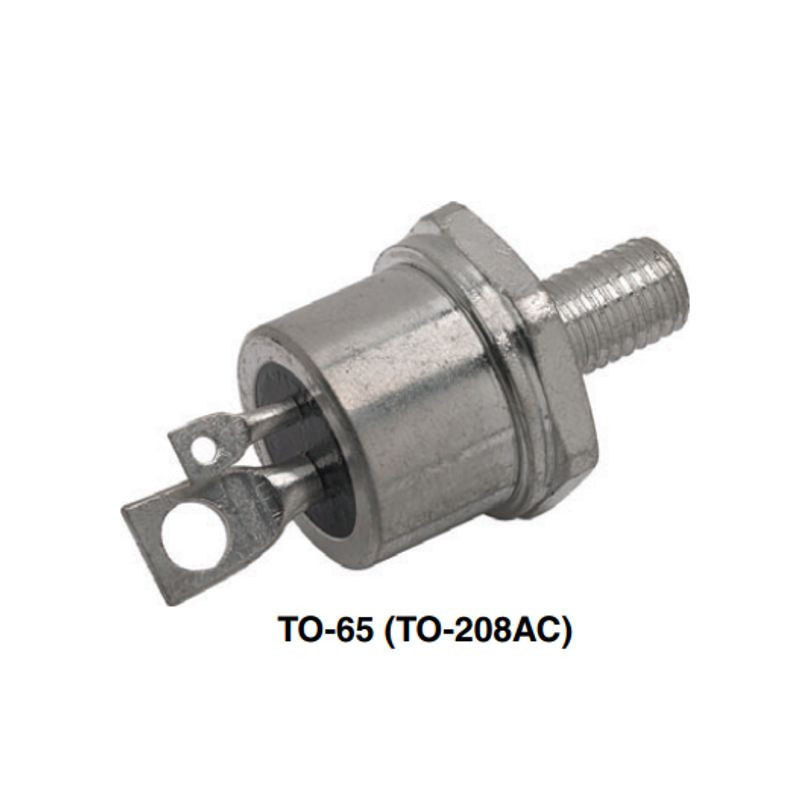

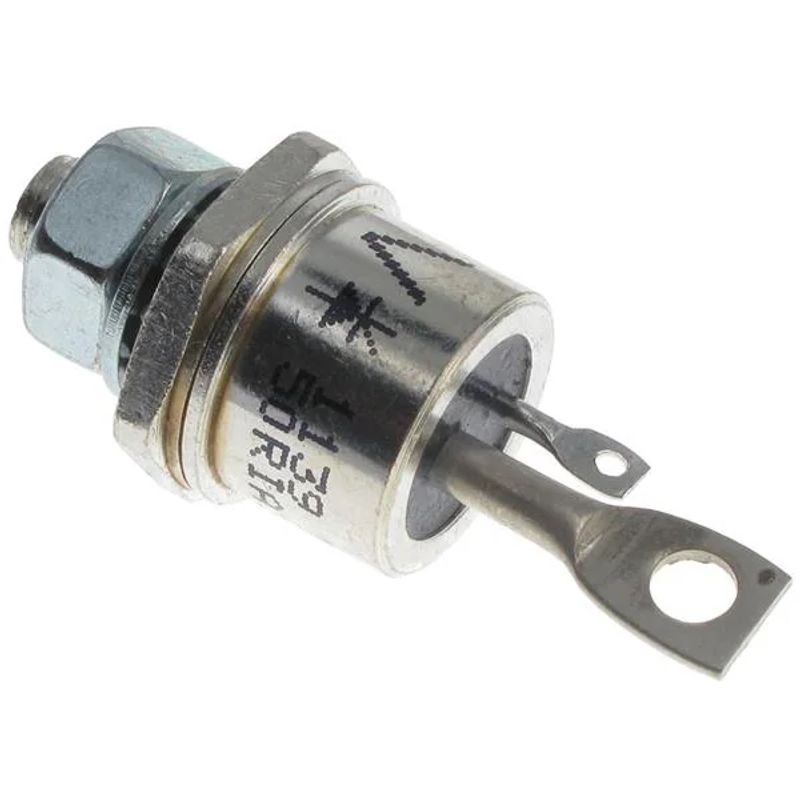

POWER THYRISTOR SCR, STUD MOUNT VS-50RIA, 50A 1200V

All pictures are for illustrative purposes only.

PID# 7535

CA$25.00
Free shipping: On orders over $120 within BC

1 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

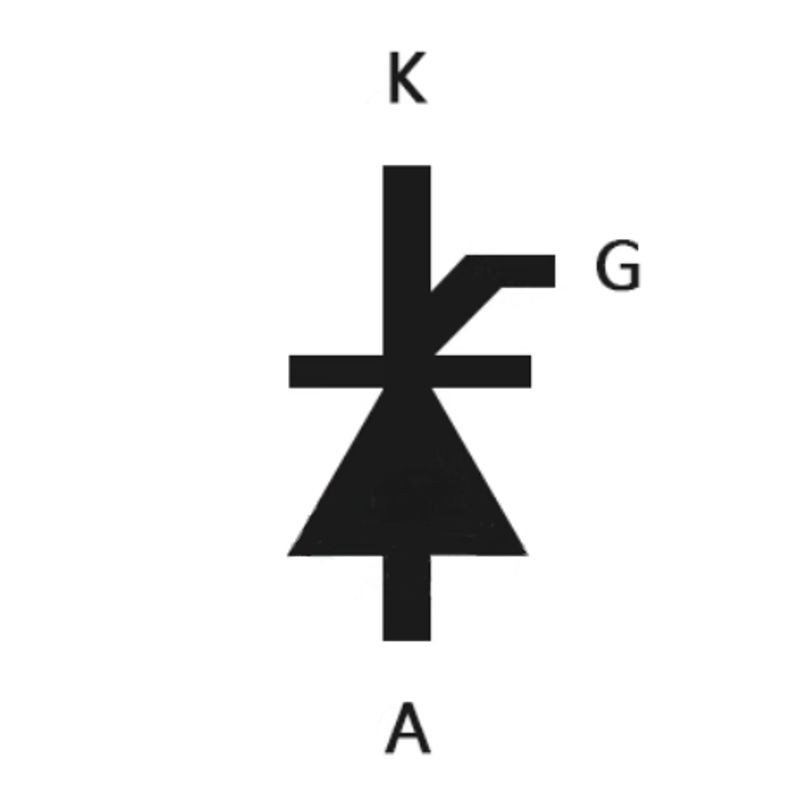

 Type: SCR

   Maximum repetitive peak and off-state voltage (VDRM): 800 V

   Maximum average on-state current (IT(AVR)): 105 A

   Maximum RMS on-state current (IT(RMS)): 165 A

   Non repetitive surge peak on-state current (ITSM): 3000 A

   Critical repetitive rate of rise of on-state current (dI/dt): 1000 A/µs

   Critical rate of rise of off-state voltage (dV/dt): 500 V/µs

   Maximum operating junction and storage temperature range (Tstg, Tj): -40..125 °C

   Junction to case thermal resistance (RTH(j-c)): 0.2 K/W

   Triggering gate voltage (VGT): 3 V

   Peak on-state voltage drop (VTM): 1.73 V

   Triggering gate current (IGT): 0.2 mA

   Holding current (IH): 0.6 mA
