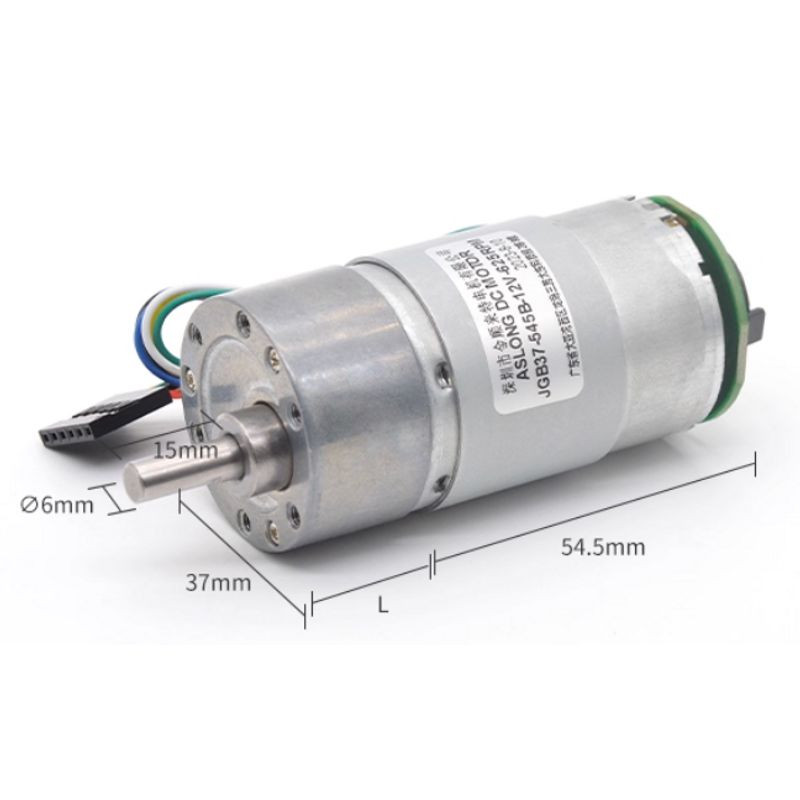

GEAR MOTOR, JGB37-545B, 12V 66rpm 1:90, W/ ENCODER
PID# 41519
CA$30.00
Out of Stock
Description
The motor power supply cannot share the same power source with the encoder power supply!
01 Motor positive, red wire
02 Motor negative, black wire
03 Encoder positive, blue wire
04 Encoder negative, green wire
05 Signal wire, yellow wire
06 Signal wire, white wire
07 When the motor is connected to the J809 speed controller, the positive motor wire is connected to port T1 and the negative motor wire is connected to port T2.
545B Encoder Parameters:
Type: AB two-phase incremental magnetic Hall encoder
Output pulse count: Base pulse 16PPR * reduction ratio
Base pulse: 16PPR
Operating voltage: DC3.3V/DC5.0V
Output signal type: Square wave AB phase
Response frequency: 100KHZ
Output method: Open-collector output
Motor Specifications:
Rated Voltage: 12V
Workable Voltage range: 6-18V
No Load Speed: 66RPM
No Load Current: 120mA
Loaded Torque Speed: 58RPM
Loaded Torque current: 0.35mA
Torque: 8kg.cm
Output: 28W
Stall Torque: 35kg.cm
Stall Current: 3A
Reducer Ratio: 1:90
Reducer Size: 24mm
Weight: 265g
