Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

Overview:

Luckfox Pico Ultra is a cost-effective Linux micro development board, based on the Rockchip RV1106 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, RBG LCD, GPIO, UART, SPI, I2C, USB, etc., which is ideal for embedded applications.

Specifications:

  • Model: Luckfox Pico Ultra W
  • Processor: RV1106G3
  • NPU: 1TOPS
  • Memory: 256MB DDR3L
  • Includes onboard WiFi and 8GB eMMC

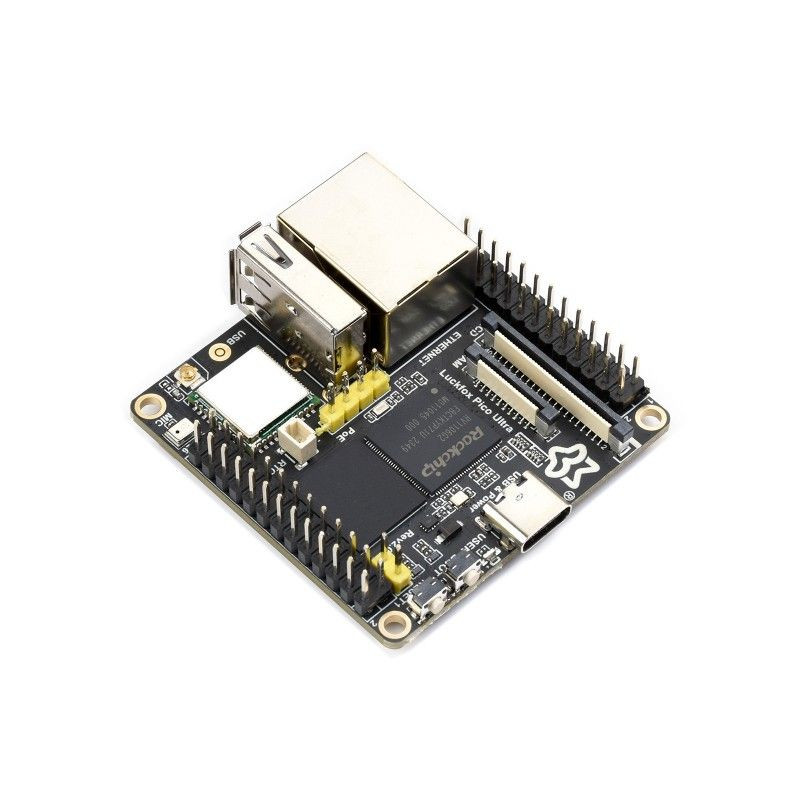

What's on Board

Luckfox Pico Ultra series, onboard components

  1. USB Type-C connector
    for power supply and program burning
  2. USER-LED
    for indicating system operation status in the default image, programmable indicator
  3. BOOT button
    Press it when powering on or resetting to enter download mode
  4. RESET button
  5. GPIO header
  6. Onboard microphone
  7. Antenna connector
  8. WIFI/Bluetooth module
    2.4G WiFi 6; BT5.2/BLE Bluetooth module
  9. USB-A Interface
    Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected
  1. RJ45 100M Ethernet port
  2. Speaker header
    MX1.25 2P connector, supports 8Ω 1W speaker
  3. RGB LCD Interface
  4. CSI camera interface
    MIPI CSI 2-lane
  5. RV1106G3/RV1106G2
    Vision processor SoC with built-in ARM Cortex-A7 core
  6. 8GB EMMC
  7. RTC battery connector
  8. PoE module header
  9. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply

Wiki: https://wiki.luckfox.com/Luckfox-Pico-Ultra
