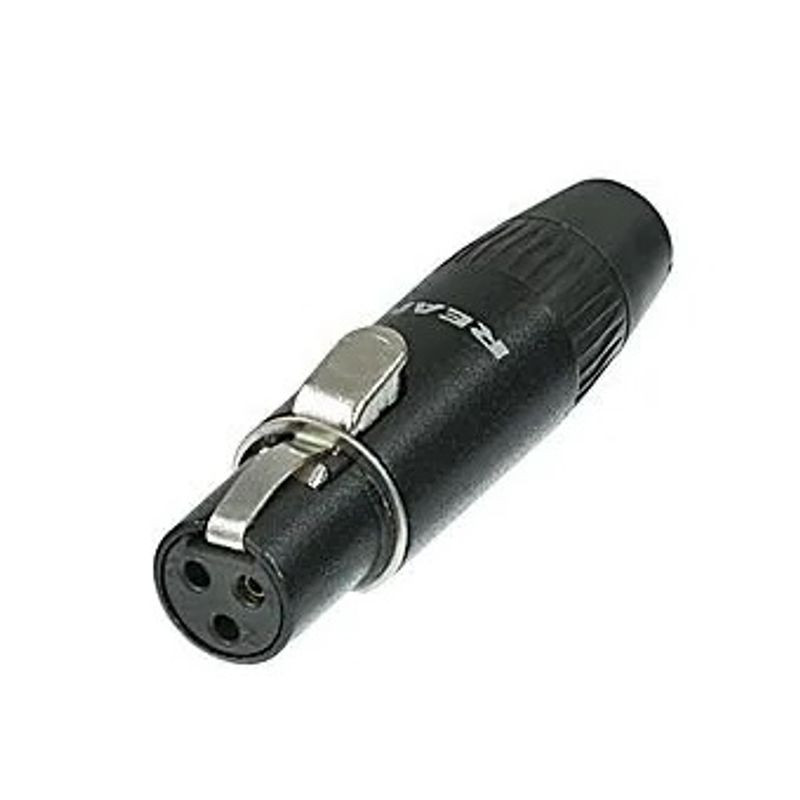

REAN XLR MINI 3-PIN FEMALE RT3FC-B

All pictures are for illustrative purposes only.

PID# 244423

CA$4.75
Free shipping: On orders over $120 within BC

5 In Stock

Order now, processed next business day

Variants:
mini 3P
mini 4P
mini 5P
Quantity

Request a large quantity quote

Description

Technical Information

Product
Title RT3FC-B
Connection Type XLR
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >1 GΩ
Dielectric Strength >500 V rms
Rated current per contact ＜5 A
Mechanical
Cable O.D. Range 2.0-4.5mm
Lifetime >1000 Mating Cycles
Wiresize 0.22 mm²
Wiresize 24 AWG
Material
Ground Contact Steel
Rubber Spring Rubber
Latch Zinc
Chuck POM
Boot PC/ABS+TPU
Housing Zinc
Plastic housing PA6+30%GF
Jack Bronze
Ground Contact Bronze
Tube Aluminum
Latch Nickel Plating
Housing Nickel Plating
Jack Gold Plating
Ground Contact Tin
Tube Black Plating

Specifications

5 Items

Features

XLR Connector XLR3 (F)
