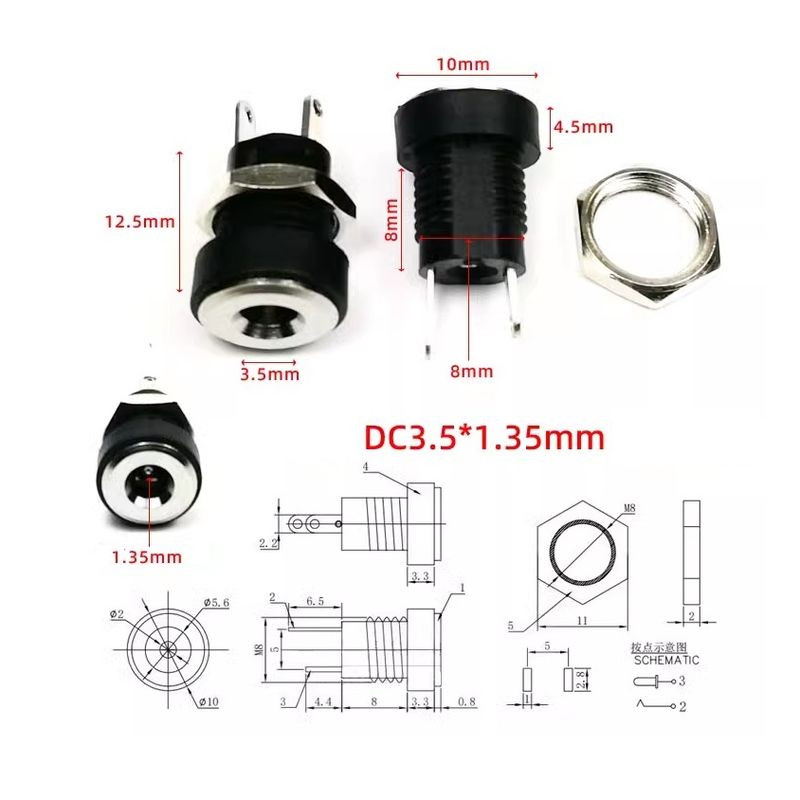

DC POWER JACK 1.3MM x 3.5MM MINI CHASSIS MOUNT

All pictures are for illustrative purposes only.

PID# 21633

CA$2.00
Free shipping: On orders over $120 within BC

14 In Stock

Order now, processed next business day

Variants:
DC POWER JACK, 1.3MM X 3.5MM, FLUSH CHASSIS MOUNT
DC POWER JACK 1.3MM x 3.5MM MINI CHASSIS MOUNT
Quantity

Request a large quantity quote

Description

The main technical parameters:

1. Electrical performance

1.1. Rated voltage and current: 30V 2A

1.2. Contact resistance: ≤30mQ

1.3. Insulation resistance: ≥100MΩ

1.4. Withstand voltage: AC500V/1min

2. Mechanical properties

2.1. Insertion force: 3~22N

2.2. Pull-out force: 3~22N

2.3. Durability: 5000 times

3. Environmental performance

3.1. Working temperature: -40℃~85℃

3.2. Storage temperature: -40℃~85℃

4. Production, process and packaging requirements

4.1. Welding heat resistance: 265±5℃/3~5s
