LOGIC ANALYZER JM-LA1016

LOGIC ANALYZER JM-LA1016 LOGIC ANALYZER JM-LA1016
All pictures are for illustrative purposes only.
LOGIC ANALYZER JM-LA1016 LOGIC ANALYZER JM-LA1016

PID# 188

CA$130.00 EACH
Out of Stock
Quantity

Request a large quantity quote

Description

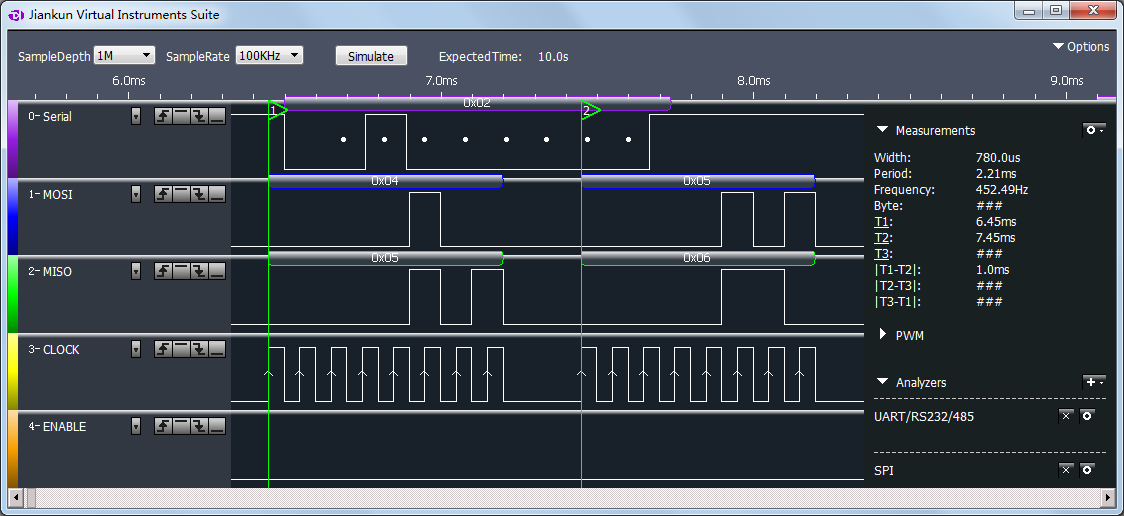

LA1016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

Features:

  •  Portable and lightweight
  •  100M sampling rate @ full channels
  •  Large sampling depth and support compression
  •  The built-in PWM generator
  •  Compatible USB2.0/3.0 interface
  •  Powerful software and easy to use
  •  Support online upgrade automatically

Specification:

·Input channels number: 16

·Max sampling rate: 100M

·Measurement bandwidth: 20M

·Min pulse width can be captured: 20ns

·Hardware memory size: 1Gbits

·Hardware sampling depth: 50M/channel

·Max compressed depth: 10G/channel

·Input voltage range: -50V ~ +50V

·Input impedance: 220KΩ, 12pF

·Threshold voltage: low level < 0.8V, high level > 1.6V

·PWM channels number: 2

·PWM frequency range: 0.1 ~ 20MHz

·PWM frequency adjust step: 10ns

·PWM pulse width adjust step: 5ns

·PWM output voltage: +3.3V

·PWM output impedance: 50Ω

·Standby current: 130mA

·Max operating current: 260mA

·Dimensions: 95mm * 55mm * 23mm

·Support OS: Windows XP, Vista, Windows 7/8(32bit/64bit)

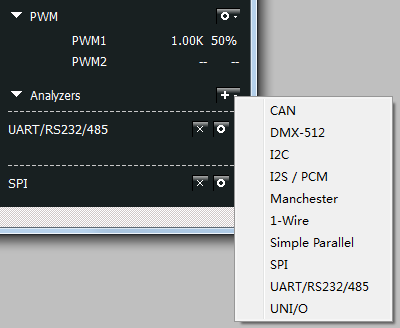

·Support standard protocols: UART(RS-232/485/422), I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, Simple Parallel, PS/2 Keyboard/Mouse, UNI/O, USB1.1
