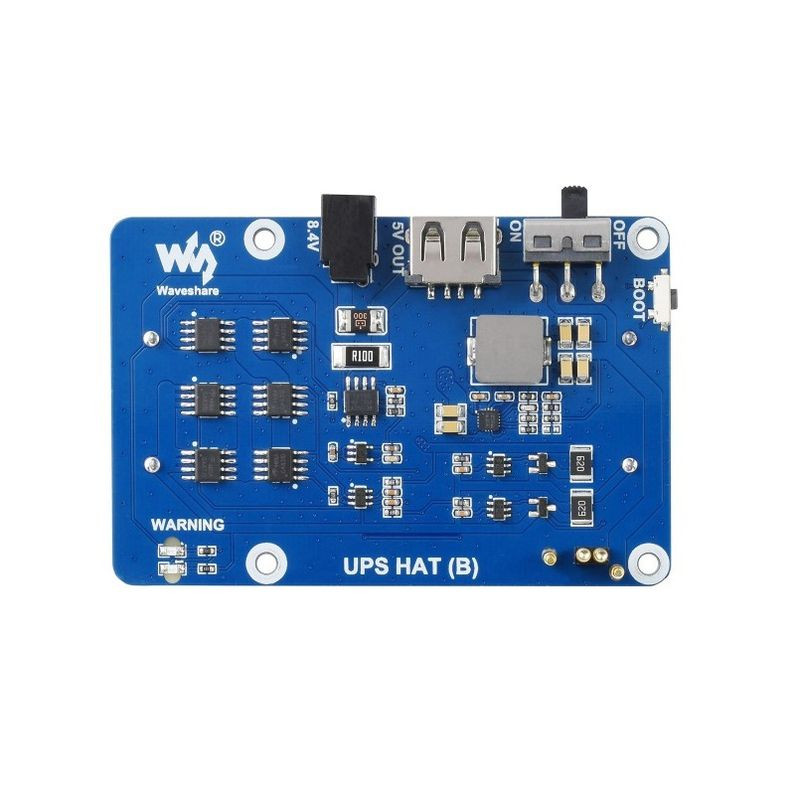

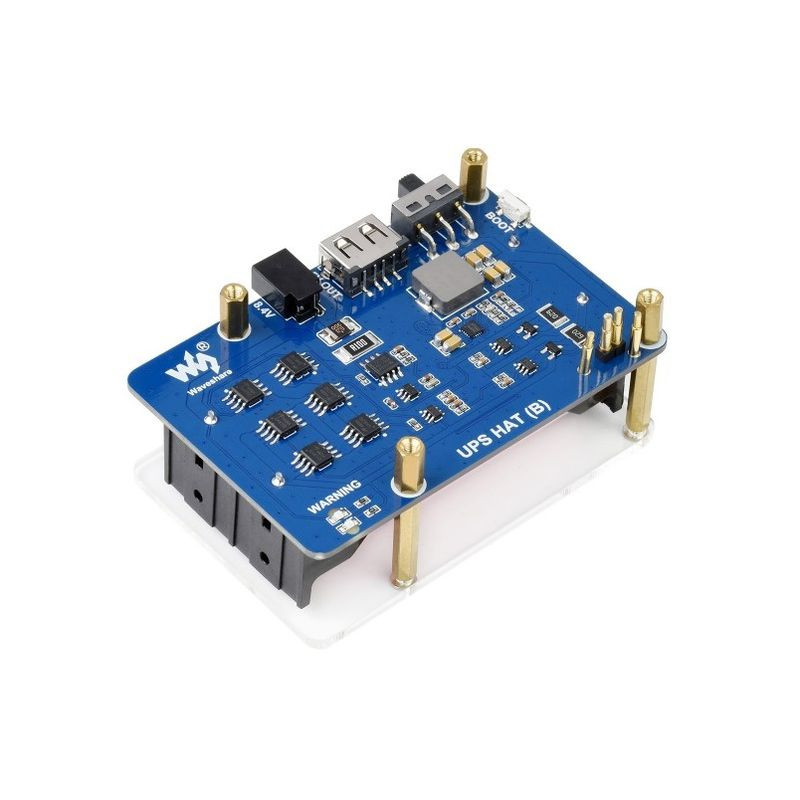

UPS HAT FOR RASPBERRY PI, 5V 5A, USES LI-ION 18650 X2

All pictures are for illustrative purposes only.

PID# 184221

CA$38.00
Free shipping: On orders over $120 within BC

3 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

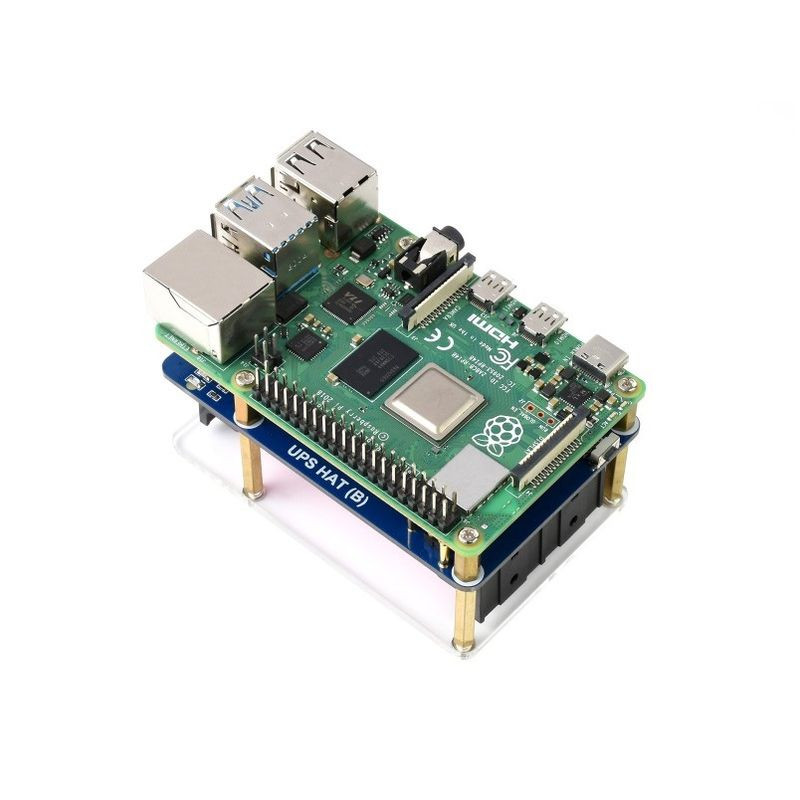

  • Designed for Raspberry Pi series, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.

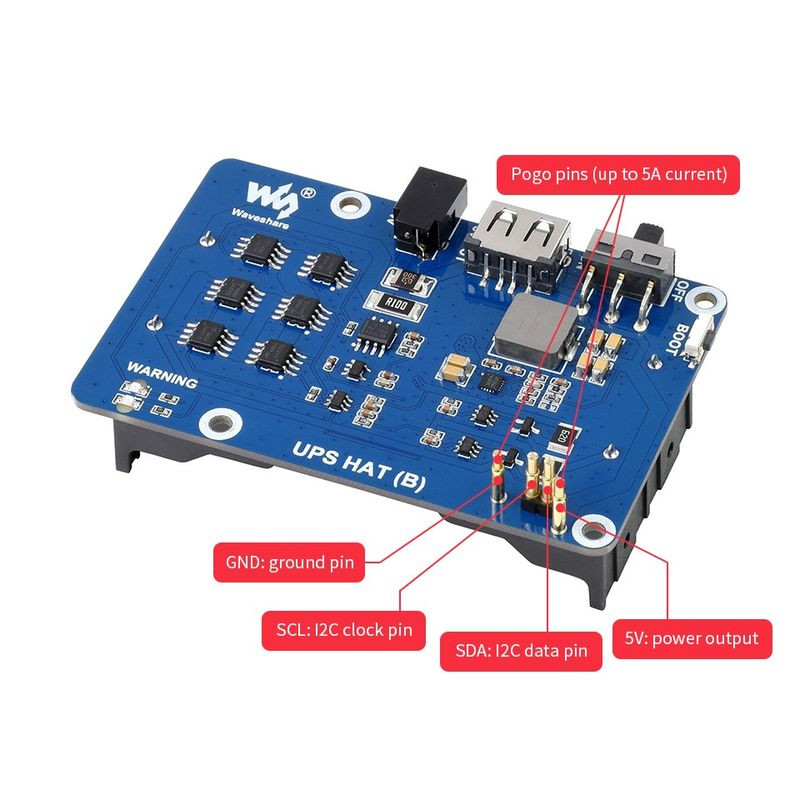

  • I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
  • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
  • Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi
  • 5V USB output, convenient for powering other boards
  • Batteries warning indicators, easy to check if the battery is connected correctly
  • Comes with development resources and manual
Specifications:
Output voltage 5V Charger 8.4V 2A
Control bus I2C Dimensions 56 × 85mm

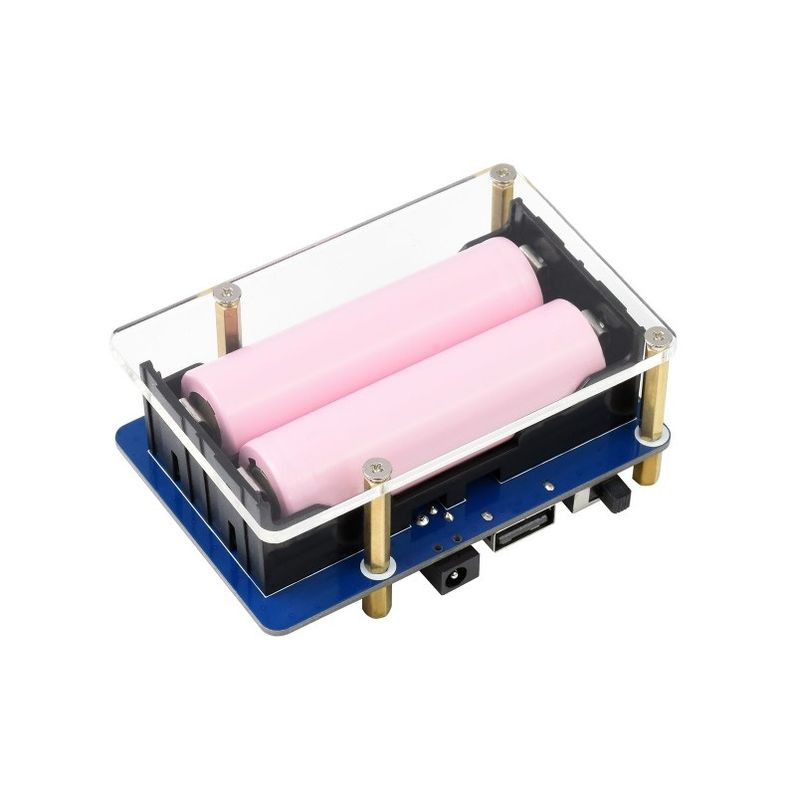

Battery support 2x 18650 Li batteries (NOT included) Mounting hole size 3.0mm

Weight: 0.4 kg

Actual Weight: 0.172 kg

  • The 18650 batteries are NOT included
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
  1. UPS HAT (B) x1
  2. Acrylic protection panel x1
  3. Screws pack x1
