MINI BASE BOARD FOR RASPBERRY PI COMPUTE MODULE 5 W/ CASE

All pictures are for illustrative purposes only.

PID# 18387

CA$50.00 EACH
Free shipping: On orders over $120 within BC

3 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Mini Base Board / Mini-Computer designed for Raspberry Pi Compute Module 5 (NOT Included)

Specifications

CM5 socket suitable for all variants of Compute Module 5
Networking Gigabit Ethernet RJ45 connector
Connector 16PIN PCIe (PCIe Gen2/3 x1)
Raspberry Pi 40PIN GPIO header
USB USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2
MIPI 4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)
Video HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
Storage TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan header 5V, 4PIN JST-SH PWM connector
Power input DC 5V 5A

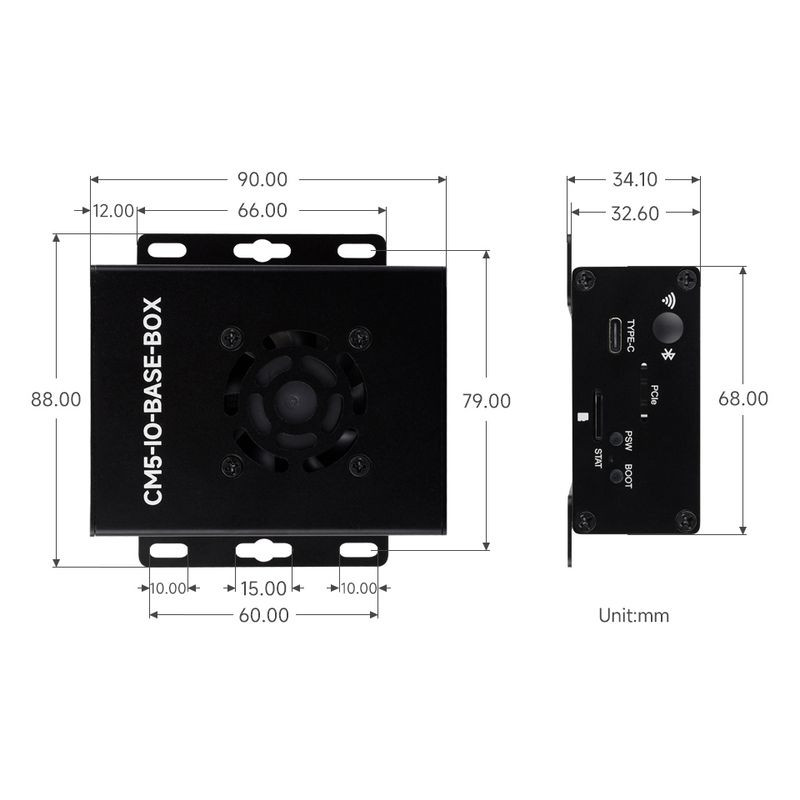

Dimensions the base board: 85 × 56mm
with metal case: 90 × 68mm
What's On Board

Mini Base Board (A) designed for CM 5, onboard components

  1. CM5 socket
    suitable for all variants of Compute Module 5
  2. 40PIN GPIO header
    for connecting various HAT / HAT+ modules
  3. Power input/Programming
    5V / 5A power supply, or used for eMMC burning
  4. PCIe interface
    for connecting various PCIe expansion boards
  5. PSW Power button
    Long press to force power off, short press to soft power off or on
  6. STAT LED
    Dual-color status LED
  7. BOOT button
    Press before powering on and release after powering on to enter the burning mode
  8. Dual MIPI interfaces
    for connecting DSI displays and CSI cameras
  9. HDMI0 connector
    HDMI0 port, supports 4K output
  10. USB 3.2 Gen1 ports
    2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
  1. RJ45 Gigabit Ethernet port
    Supports 10M / 100M / 1000M network access
  2. 4PIN JST-SH PWM Fan header
    for connecting cooling fan, 5V power supply
  3. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  4. IO-VREF selection
    CM5 IO logic level: 3.3V (default) or 1.8V
  5. Other function pins
    WIFI / BT hardware disable or write protection
  6. HDMI1 FFC connector
    HDMI1 port, supports 4K output, can be connected through an adapter
  7. USB 2.0 FFC connector
    can be connected through an adapter
  8. RTC battery holder
    Supports CR / ML1220 button cell

WIKI: www.waveshare.com/wiki/CM5-IO-BASE-A
