ATTINY85 MINI DEVELOPMENT BOARD (USB MICRO)

All pictures are for illustrative purposes only.

PID# 182022

CA$8.00
Out of Stock
Quantity

Request a large quantity quote

Description

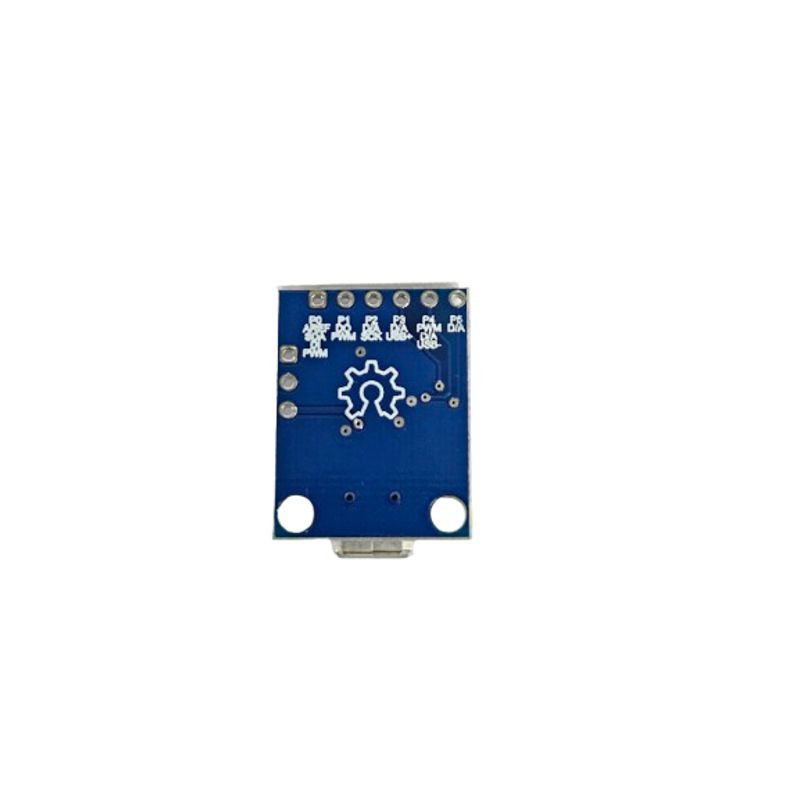

This is a Digispark ATtiny85 general micro USB development board.

  • It is a small, Arduino-compatible microcontroller development board.
  • It features an ATtiny85 microcontroller with 8KB of flash memory.
  • It has 6 I/O pins, which can be used for I2C, SPI, PWM, and ADC functionalities.
  • The board can be powered via the micro USB port or an external source (5V or 7-35V).
  • It is programmable using the Arduino IDE software.

Specifications:

  • Flash memory: 8 kb (of which 2.75 kB occupied by bootloader)
  • Clock: 16 MHz
  • USB bootloader with programming capability via Arduino IDE environment
  • MicroUSB connector for programming, in our offer you will finda suitable cable
  • The installed 5.0 V controller with a current capacity of up to 500 mA allows you to connect a supply voltage up to 35 V.
  • Can be powered from a USB port or from an external source
  • There are two LEDs on the board: power and for the user, connected to pin 1.
  • 6 digital input/output pins, including:
  • 4 ADC
  • 3 channels of PWM
  • I2C and SPI interface
  • Two 2.1 mm diameter mounting holes
  • Dimensions: 24 x 18 mm
