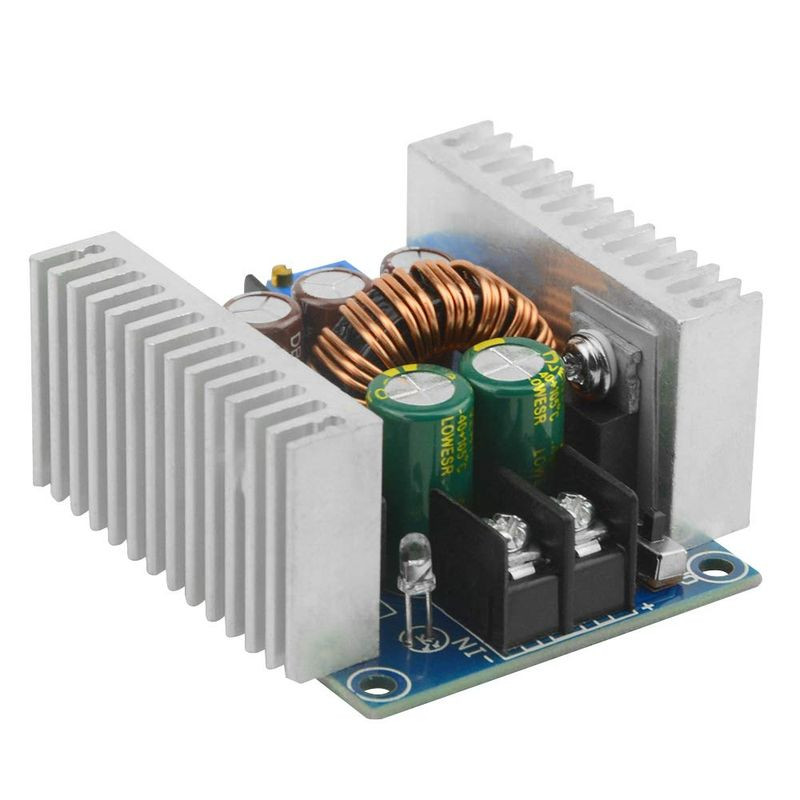

DC-DC BUCK CONVERTER STEP DOWN IN: 10-40V, OUT: 1.2-36V 20A

All pictures are for illustrative purposes only.

PID# 18048

CA$30.00
Out of Stock
Quantity

Request a large quantity quote

Description

300W 20A DC Buck Module Constant Current Adjustable Step-Down Converter Voltage

Output Current: 20A(max.), 15A (suggested)

Output Voltage: 1.2V to 36V DC

Efficiency: 95% (24V to 12V, 20A)

With a wide input voltage range from 6V to 40V (10V to 40V is suggested), the step-down converter can accurately adjust output voltage and current

Output Ripple: Less than equal 50mV

Wiring Method: Terminal

Short Circuit Protection: Self-recovery (cannot short circuit for long time)

VO+: Output positive

VO-: Output negative

+IN: Input positive

-IN: Input negative

CV: Output voltage adjustment

CC: Output current adjustment

EN: Enable, low voltage level shut off output; suspension, high voltage level is effective

When input and output is common grounded, no-load CV output constant voltage, CC output constant current

Working Temperature: -10Celsius -75 Celsius

Designed with 75V/80A large current dual MOS tube

The buck module has 2 heat sink that could enhance heat dissipation

Wiring is convenient with these large current 30A screw terminals

Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output
