UNIVERSAL POWER ADAPTER, AC/DC, 3-12V, 30W MAX, W/ DC TIPS + USB OUT

  • New
All pictures are for illustrative purposes only.

PID# 17391

CA$23.99
Free shipping: On orders over $120 within BC

3 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

Input voltage ranges from AC 100V to 240V, with a current of 0.25A and a frequency of 50/60Hz. The output voltage can be adjusted to DC levels of 3V, 4.5V, 5V, 6V, 7.5V, 9V, or 12V, with a maximum output current of 2.5A and a maximum wattage of 30W.

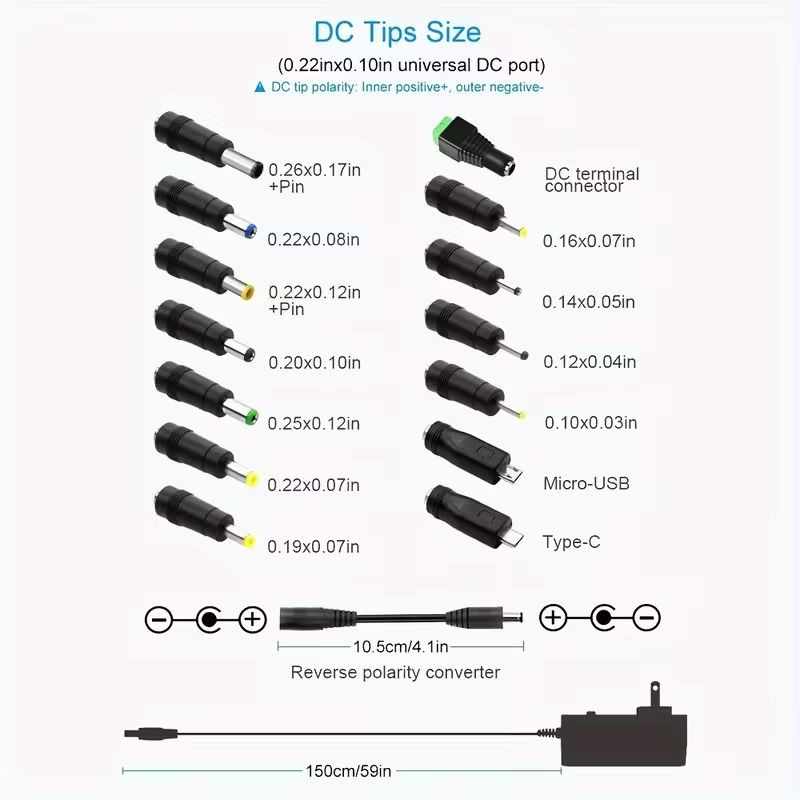

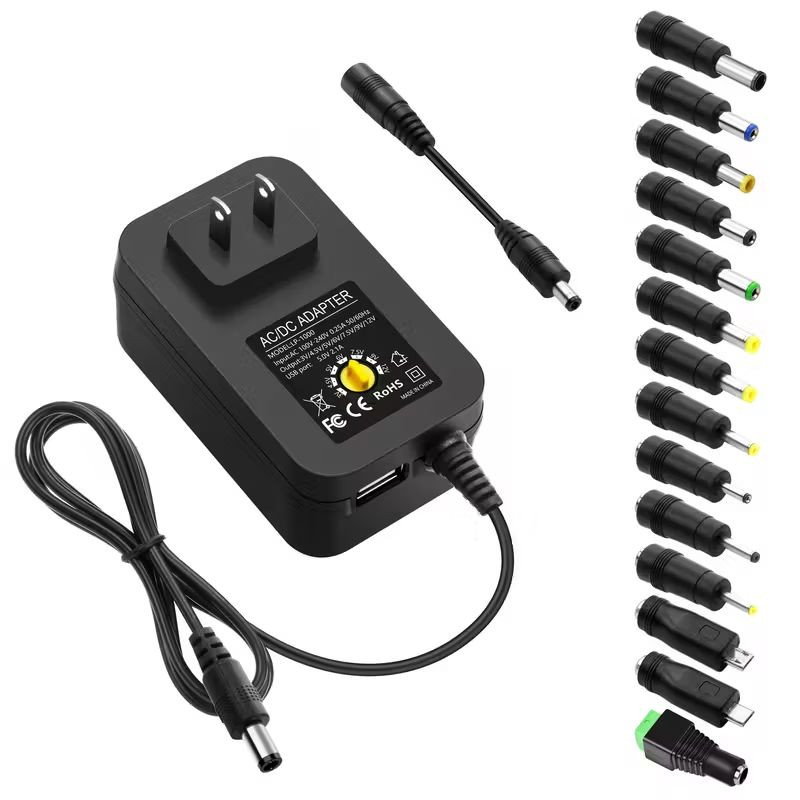

It includes 14 different tip sizes: 6.5x4.4mm with pin, 5.5x2.1mm, 5.5x3.0mm with pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C, and a DC terminal connector.

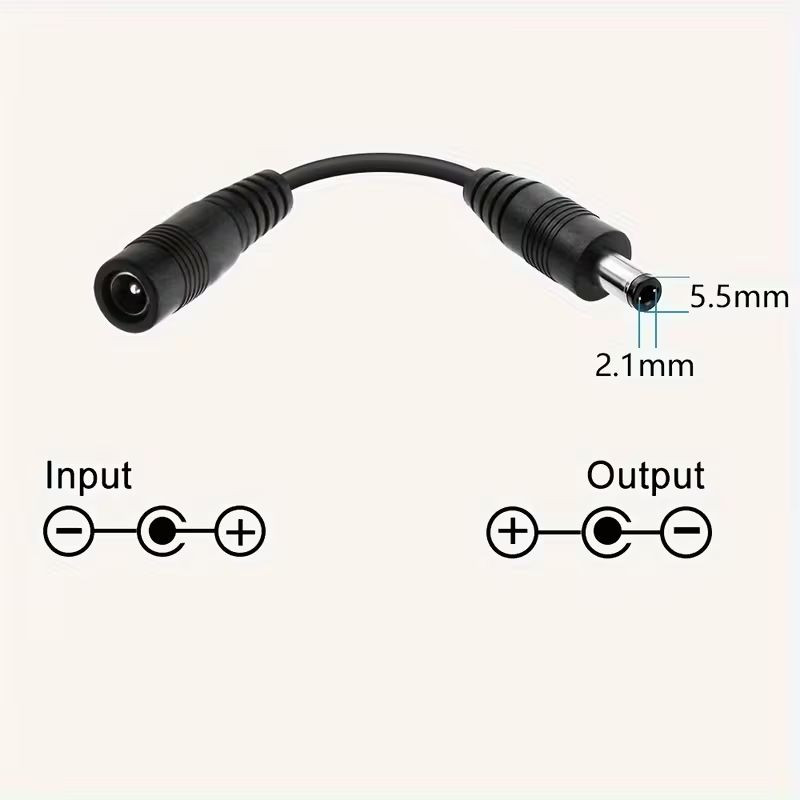

The polarity is positive inside and negative outside. A reverse polarity converter is available for the 5.5mm x 2.1mm size.

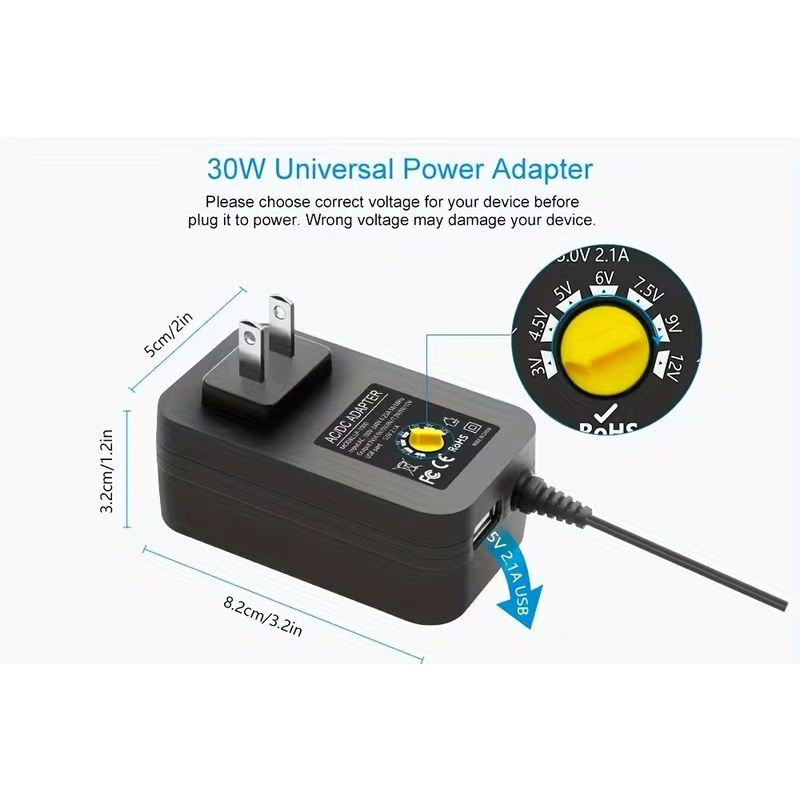

The adapter dimensions are 3.1 inches by 2 inches by 1.2 inches, and the cable length is 4.9 feet.

This product includes a 4cm reverse polarity converter suitable for various devices. Please ensure you identify the polarity of your devices before use, as incorrect connections may cause damage.

Wide Compatibility: Max 2.5A output indicates it can provide current up to 2.5A, including options like 1A, 2A, and 2.5A. If your device needs 2A, it will receive that amount. However, if it demands more than 2.5A, the maximum supplied will be 2.5A.

It is advised that the maximum power usage should not exceed 80% of the total capacity, as doing so may reduce the lifespan of the power supply. We suggest using a 30W power supply for devices that consume less than 24W.

Direct successor of our previous product: #16519
