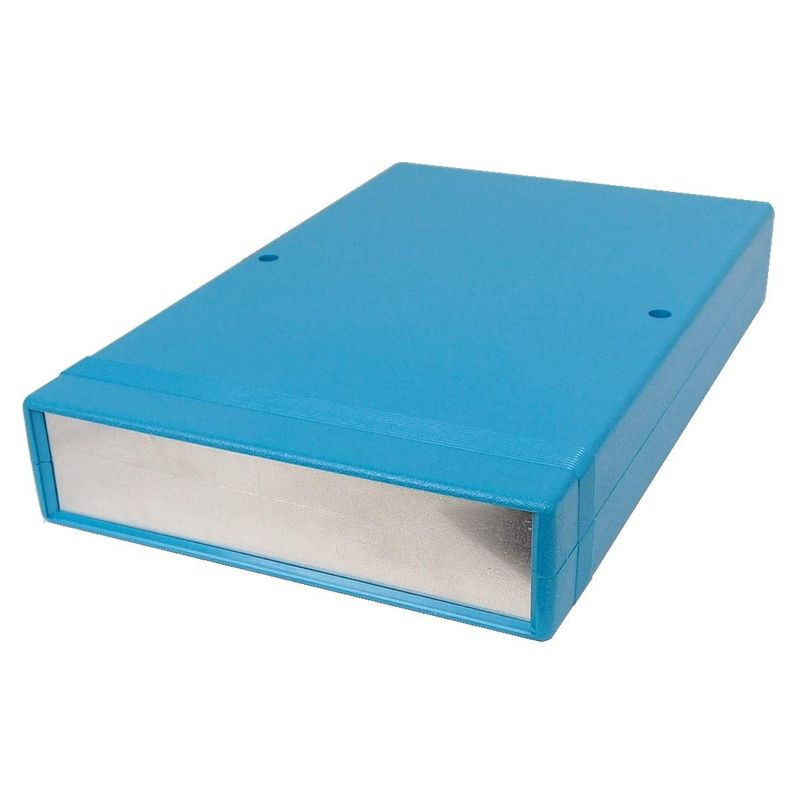

HAMMOND ABS INSTRUMENT CASE, 1598FBU, 250 x 160 x 40mm, BLUE CASE

  • New
All pictures are for illustrative purposes only.

PID# 165103

CA$31.00
Out of Stock
Quantity

Request a large quantity quote

Description

Features

  • Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards.
  • Designed to meet IP54.

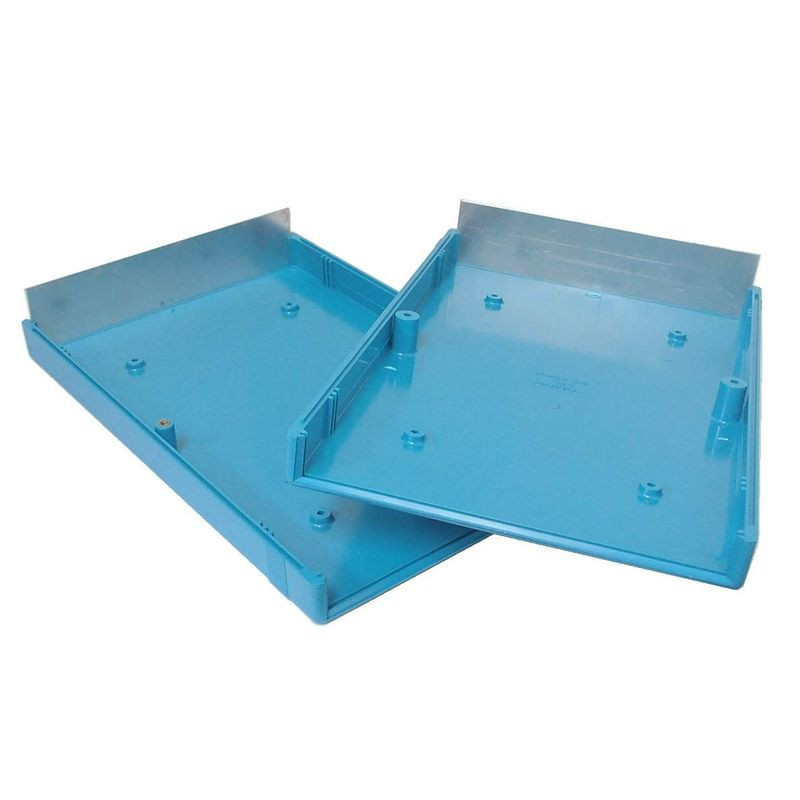

  • Two sets of vertical 1.5 mm (0.062”) PC board guides are molded into front and rear of case halves.
  • Integral horizontal PC card mounts on Eurocard centers.
  • PC card standoffs molded into top and bottom half of enclosure require #6 x 1/4” (6.4mm) screws, not included. Special Order part number 1598ATS100.

General Purpose Version

  • Molded from general purpose ABS plastic (not flame retardant).
  • Enclosure halves are secured with self tapping screws threaded into plastic standoffs.  Not recommended for repeated assembly and disassembly.

Specifications:

  • Size L x W x H: 9.8 in x 6.3 in x 1.6 in (249 mm x 160 mm x 41 mm)
  • Shipping Weight: 1 lbs (0.45 kg)
  • Packaging Type: shrink wrap
  • Material: ABS Plastic
  • Flame Rating: UL94 V-0
  • IP Rating: IP54
  • Type: Instrument Case
  • Max. P.C. Board Length (mm): 144.71
  • Max. P.C. Board Width (mm): 238.35
