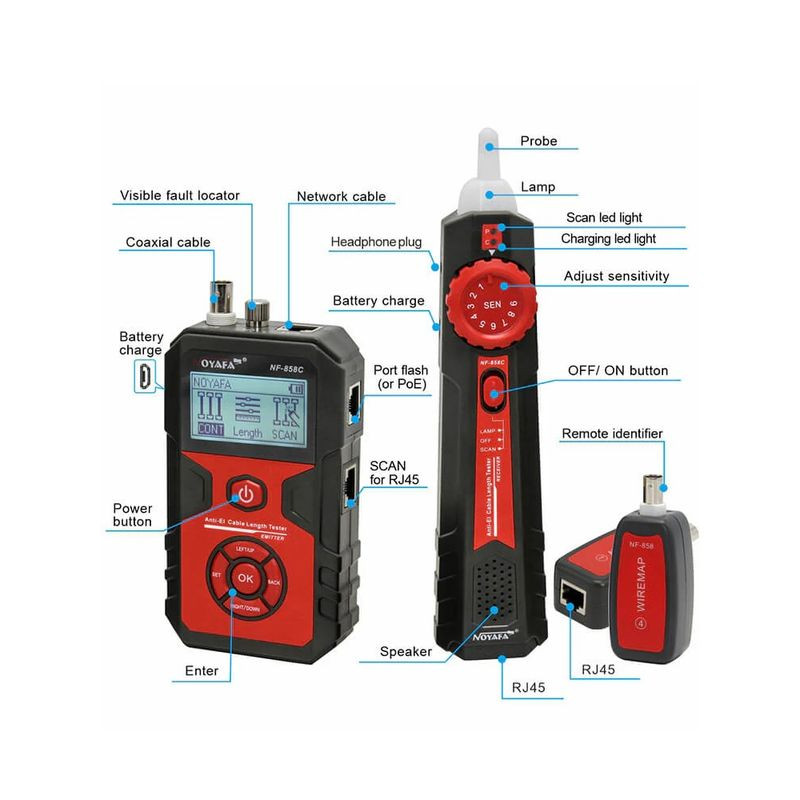

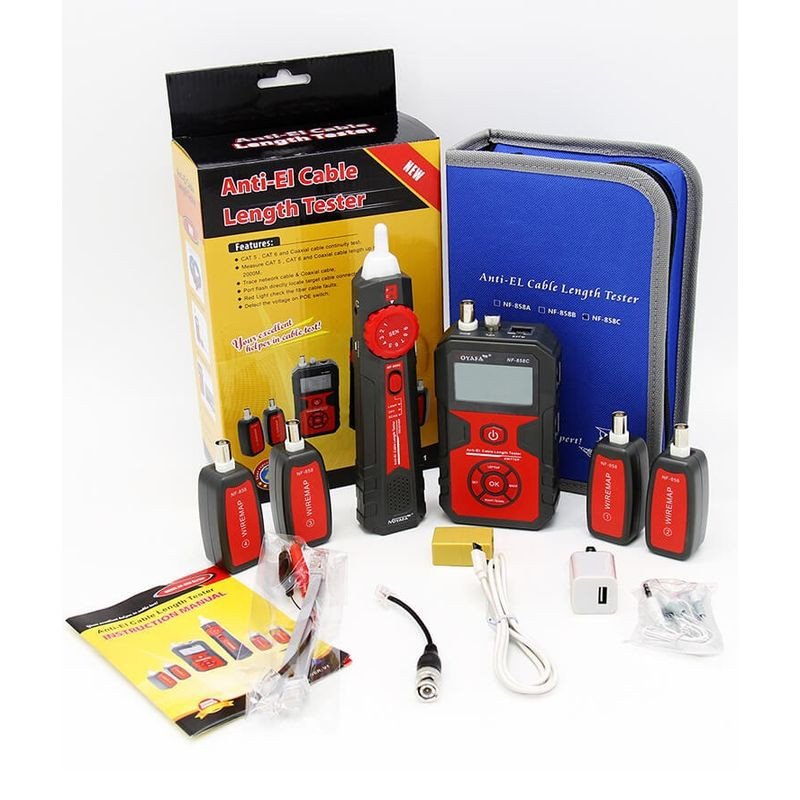

MULTIFUNCTION NETWORK CABLE TESTER W/DISPLAY RJ45/11/12, COAXIAL
Description
Features & Benefits
- All-in-one cable tester: Run cable continuity test for RJ45 network cables, RJ11 telephone line, and coaxial cables. Display the wire map and fault name on the screen for real-time analysis.
- Multitasking tester: Connect 4 cables to the 4 remotes at a time. Test them one by one via the Emitter.
- Tone tracer: Trace the location or inserted port of a cable with one end connected to NF-858C. The toner will tell you where it is even when it's live.
- Fiber optic tester: Turn the invisible breakpoint in a fiber optic cable visible. Easily locate the break or loss point via the red light.
- Port Locator: Send a flashing light to the Ethernet port via the connected cable. Let you target the port.
- Ethernet identifier: Identify which pins are providing power and detect how much voltage.
- RJ45 & coax length meter: Plug and test the length of a network cable.
Product Specifications
TRANSMITTER
Indicator: LCD 58x40mm with backlight
Tone frequency for tracing: 130 KHz
Max. distance of tracing: 6,562ft / 2,000m
Max. distance of cable map: 6,562ft / 2,000m
Test cable type: CAT5, CAT6, Coaxial
Compatible connectors: RJ45, BNC, VFL, Micro USB
Max. signal voltage: 9 +-1 Vp-p
Function and faults LCD display: LCD display (length, wire map, scan, short, no adapter, low battery)
Test record storage: 6 groups
Battery type: 3.7V 1,000mAh lithium battery
Dimension(LxWxD): 5.3 x 3.1 x 1.4 inches / 135 x 78 x 35mm
RECEIVER
Frequency: 130 KHz
Low battery indicate: 3.5+-0.2V
Battery type: 3.7V 1,000mAh lithium battery
Dimension(LxWxD): 8.0 x 1.8 x 1.3 inches / 203 x 45 x 33mm
REMOTE UNIT
Compatible connectors: RJ45, BNC
Remote: 4 pcs
Dimension (LxWxD): 4.2 x 1.2 x 0.9 inches / 107 x 30 x 24mm
