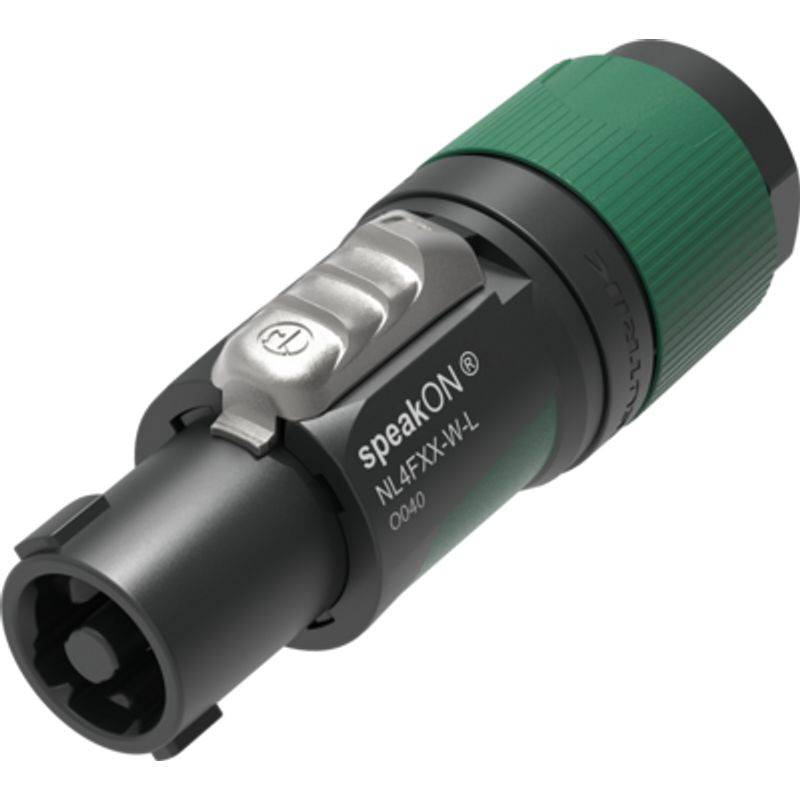

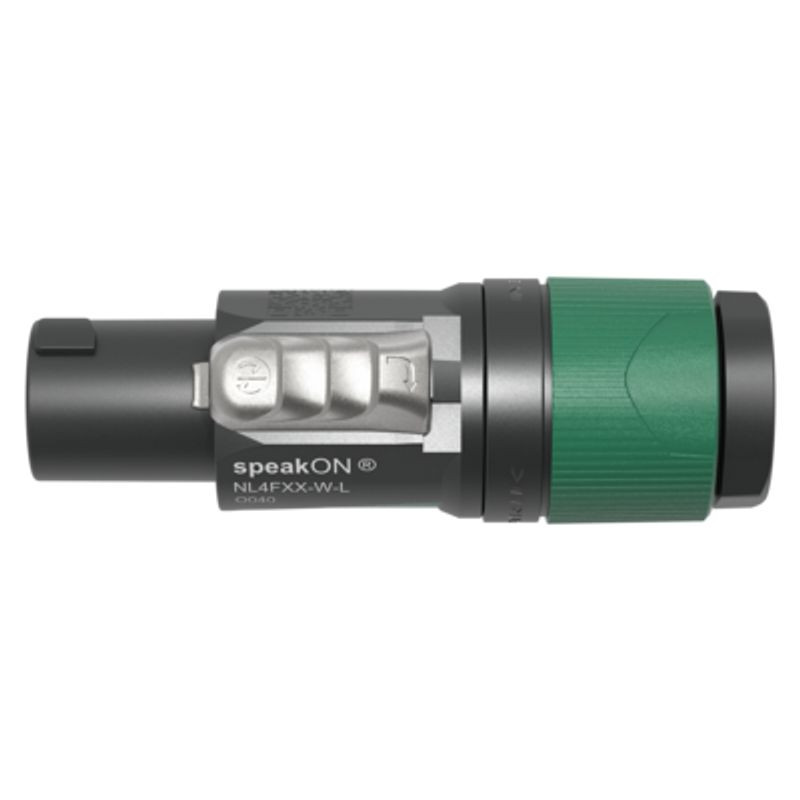

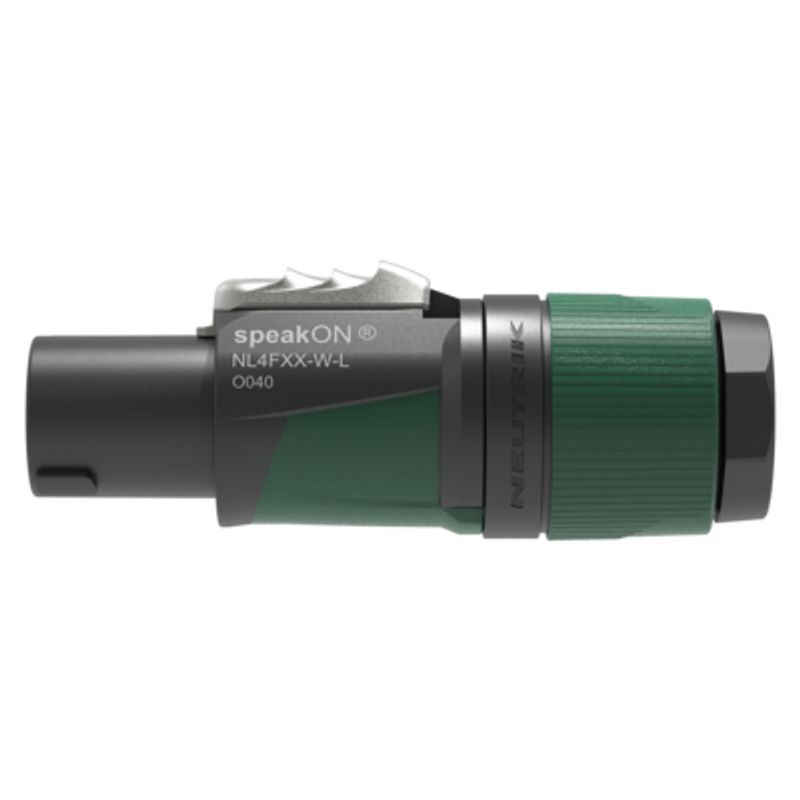

NEUTRIK 4 PIN SPEAKON CONNECTOR (DIA)10-16MM STRAIN RELIEF NL4FXX-W-L

All pictures are for illustrative purposes only.

PID# 16261

CA$11.50
Free shipping: On orders over $120 within BC

46 In Stock

Order now, processed next business day

Variants:
2P
4P
Quantity

Request a large quantity quote

Description

4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 10 to 16 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.

Features & Benefits

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing

Technical Information

Product

Title: NL4FXX-W-L

Connector series: speakON 4 pole

Electrical

Contact resistance: ≤ 2 mΩ

Dielectric strength: 2.8 kVac

Insulation resistance: > 10 GΩ (initially)

Number of electrical contacts: 4

Rating Europe: IEC 61984: 37 A 250 V AC

Rating USA: UL1977: 35 A 250 V AC

Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC

Attention: This product is strictly not intended for use as an AC or DC power supply connector!

CAUTION: NOT FOR INTERRUPTING CURRENT

Mechanical

Cable O.D.: 10 - 16 mm

Lifetime: typically 5’000 mating cycles

Wiresize (mm²): 1.5 – 4 mm²

Wiresize (AWG): 17 – 11 AWG

Locking device: Twist lock

Termination: screw type terminals

Material

Contact plating: Ag

Contacts: Copper Alloy

Insert: Polyamide (PA6.6)

Locking element: Zinc diecast

Shell Polyamide :(PA6) / TPE

Strain relief: Polyketone

Bushing: Polypropylene / TPE

Environmental

Temperature range: -33 °C to +80 °C

Protection class: IP20

Flammability acc. to UL94: V-0
