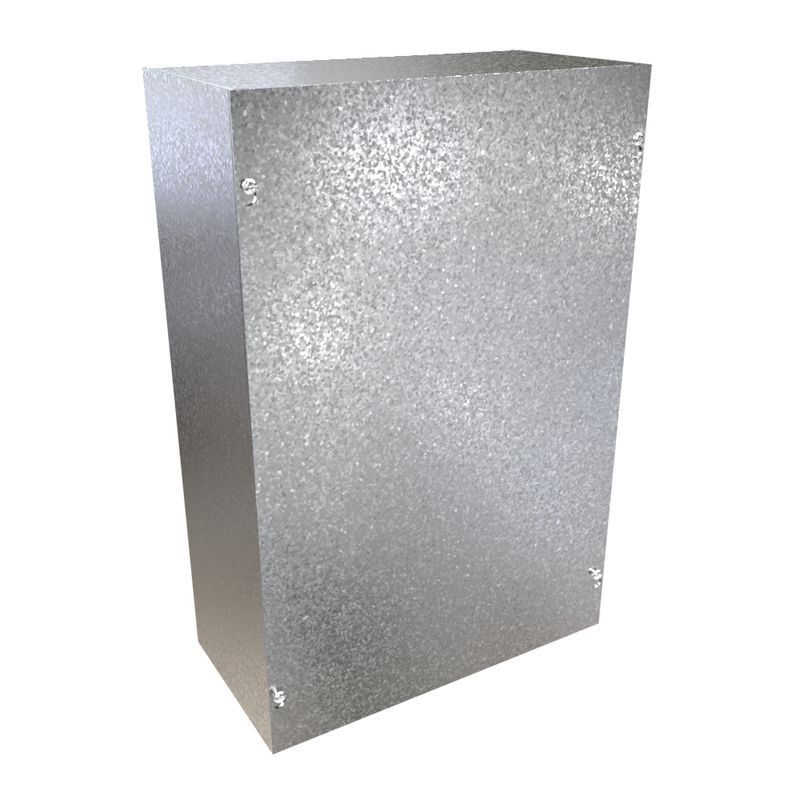

HAMMOND, GALV. JUNCTION BOX 18 X 12 X 6", CSG18126

  • New
All pictures are for illustrative purposes only.

PID# 161487

CA$91.00
Out of Stock
Variants:
12x12x6"
18x12x6
Quantity

Request a large quantity quote

Description

Application

  • Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards

  • UL-50 Type 1
  • CSA Type 1
  • Complies with
    • NEMA Type 1
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 16 gauge (up to 30"x24"), 14 gauge (36"x24") or 12 gauge (36"x36") G90 steel.
  • Flat steel covers fastened with plated steel screws.
  • Keyhole slots permit cover to be lifted off without removing screws entirely.
  • Through holes in back for wall mounting.
  • Grounding location embossed in body.

Finish

  • Enclosure and cover are unpainted galvanized steel.

Size H x W x D

  • 18 in x 12 in x 6 in (457 mm x 305 mm x 152 mm)

Shipping Weight

  • 14 lbs (6.35 kg)

Drawing
