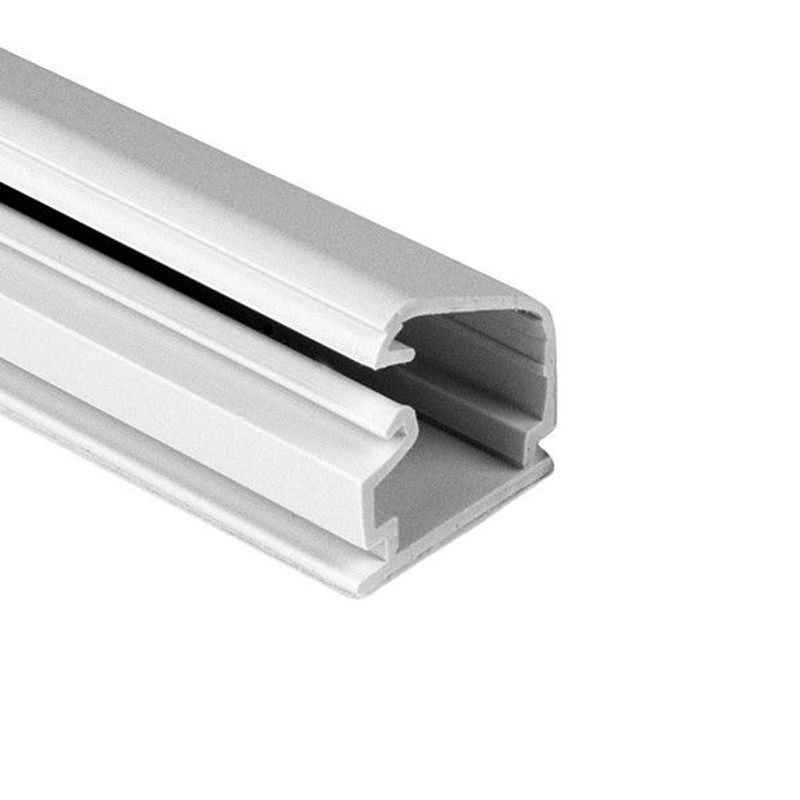

3/4 INCH SURFACE RACEWAY / CABLE TRACK, WHITE 8FT

  • New
All pictures are for illustrative purposes only.

PID# 161482

CA$25.00
Free shipping: On orders over $120 within BC

2 In Stock

Order now, processed by tomorrow

Variants:
6ft
8ft
Quantity

Request a large quantity quote

Description

Features:

HellermannTyton's low voltage TSR surface raceway system is a one piece latching duct designed to contain, route and protect wire and cable when it is not feasible to run it within the wall. It is manufactured from a 94 V-0 PVC and features a superior adhesive which conforms to most any surface. Designed with a flexible hinge, the raceway allows numerous openings without creating discoloration or stress cracking. The self-locking, hidden positive latch allows for quick re-entry as well as secure installation of wire and cable.



Base Data
Part No. TSR1W-8A
Type TSR1-8A
Color White (WH)
Features • Tamper resistant, self-locking hidden positive latch permits quick re-entry as well as providing a secure installation of premise wire.
• Fittings incorporate a minimum 1” bend radius per ANSI/TIA-568-C and 569-A standards.
• Rubber-based, foam-tape adhesive with high ultimate bond strength conforms to any surface.
• Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking

Product Dimensions
Length (L) 8.0ft / 2.44m
Width (W) (imperial) 0.75"
Width (W) 0.75" / 19.05mm
Height (H) 0.5" / 12.7mm

Material and Specifications
Material Polyvinylchloride (PVC)
Material Specification RoHS
