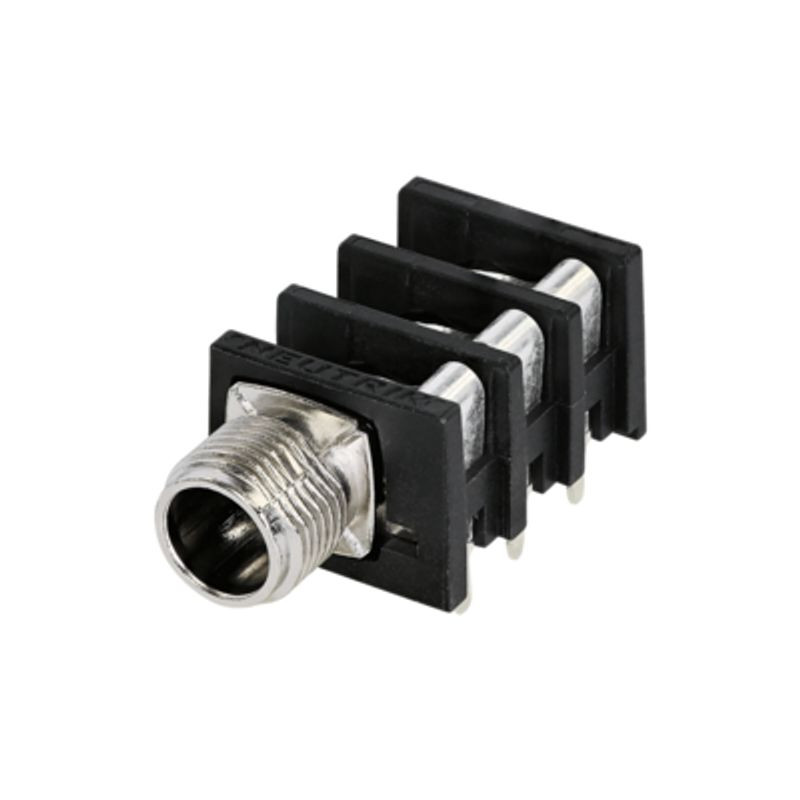

NEUTRIK, 1/4" ST. JACK SLIM, METAL NOSE, STRAIGHT PCB PINS, NRJ6HM-1

All pictures are for illustrative purposes only.

PID# 161452

CA$4.25
Free shipping: On orders over $120 within BC

7 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

1/4" stereo jack, metal nose with efficient chassis ground connection, T+R+S normalling contact

Horizontal PCB panel mount jack featuring high board packing density by mounting on 15.88 mm (0.625 inch) minimum centers in rows or arrays. Mounting hardware must be ordered separately.

Features & Benefits

High boarded packing densities

Meeting the requirements of EMC protection by efficient chassis grounding system

A retentions spring ensures optimum grip on inserted plugs, avoiding the chance of lost connection

T, R, S normalling contact

Technical Information

Product

Title: NRJ6HM-1

Connection Type: Jack

Gender: female

Electrical

Contact resistance: < 10 mΩ

Contact resistance: < 25 mΩ

Dielectric strength: 1 kVdc

Insulation resistance: ≥ 1 GΩ @ 500 V dc

Rated current per contact: 3 A

Rated current per contact: 0,50 A @ 50 V (Switch contact)

Switching contacts: 3

Mechanical

Insertion force: < 30 N

Withdrawal force: > 10 N

Lifetime: > 10000 mating cycles

Panel thickness: < 3 mm

Wiring: Horizontal PCB mount

Locking device: Retention spring

Mounting direction: Rear mounting

Chassis shape: 10 mm

Material

Cap / Nut / Washer: PA 6.6 15% GR

Contact plating: 2 µm Ag

Contacts: Bronze (CuSn6)

Shell: Polyamide (PA 6.6 30 % GR) UL 94 V0

Thread: ZnAl4Cu1

Environmental

Standard compliance: EIA RS 453, IEC 60603-11

Solderability: Complies with IEC 60068-2-20

Temperature range: -25 °C to +70 °C

Download Drawing

Specifications

7 Items

Features

Phono Connector 6.35mm TRS STEREO Female
