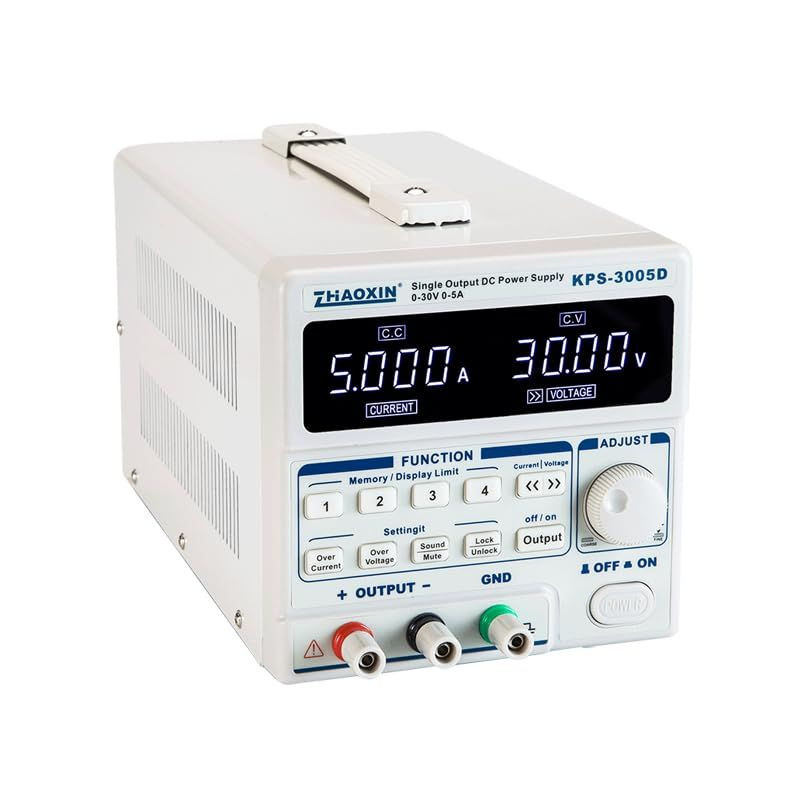

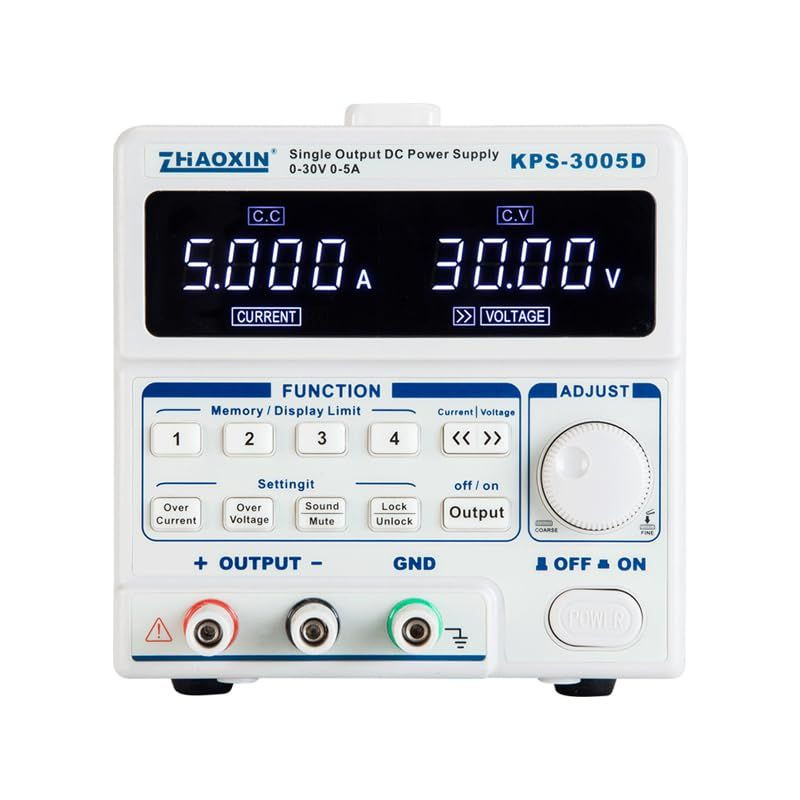

BENCH PROG. DC SWITCH POWER SUPPLY KPS-3005D 0-30V 0-5A

All pictures are for illustrative purposes only.

PID# 1491

CA$210.00
Free shipping: On orders over $120 within BC

8 In Stock

Order now, processed by tomorrow

Variants:
W/O USB
W/ USB
Quantity

Request a large quantity quote

Description

BENCH PROG. DC SWITCH POWER SUPPLY KPS-3005D 0-30V 0-5A

Model KPS-3005D

Input voltage AC 110V±10% 60Hz

Operating temperature - 0-40°C relative humidity<80%

Storage temperature 10℃-40℃ relative temperature<90%

Output voltage 0-32V

Output current 0-5A

Overvoltage protection 0-32.5V

Load regulation rate Voltage <0.15%+2mV

Current <0.15%+2mA

Power regulation rateVoltage <0.1%+2mV

Current <0.15%+2mA

Set value resolution Voltage 10mV

Current 1mA

Set value accuracy Voltage ±0.1%+1

Word Current ±0.2%+1

Word Read-back value resolution Voltage 10mV

Current 1mA

Accuracy of read-back value Voltage ±0.1%+1

Word Current ±0.2%+1

Word Ripple Voltage ≡3mV(rms)

Current ≡6mV(rms)

Temperature coefficient <0.1%+2mV <0.2%+2mA

Read back value temperature <0.1%+2mV <0.2%+2mA

Display method Four-digit white LED digital tube

Display Resolution Voltage 0.01V

Current 0.001A

Weight ~3Kg
