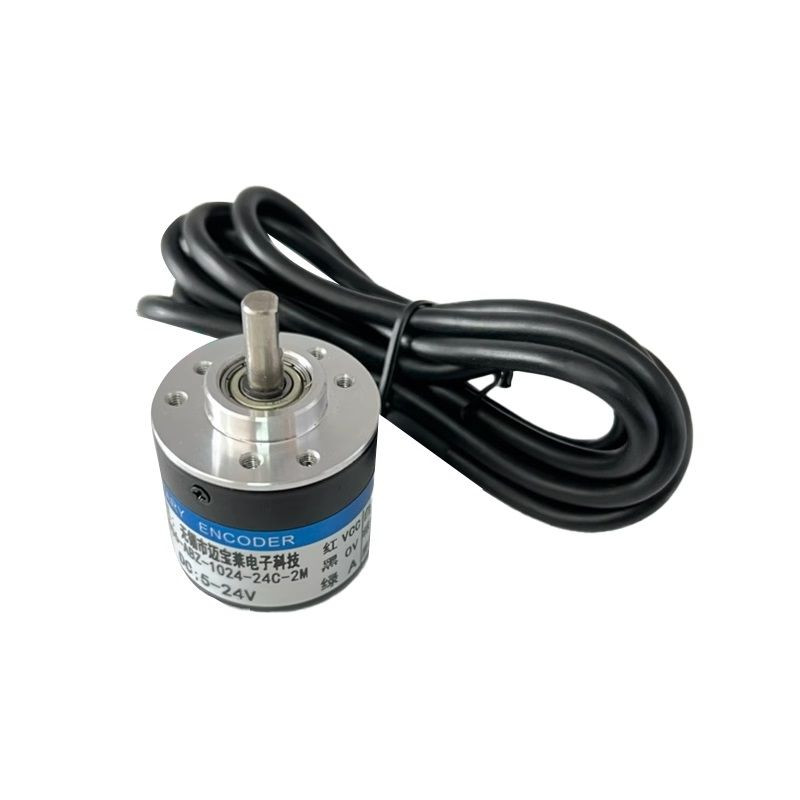

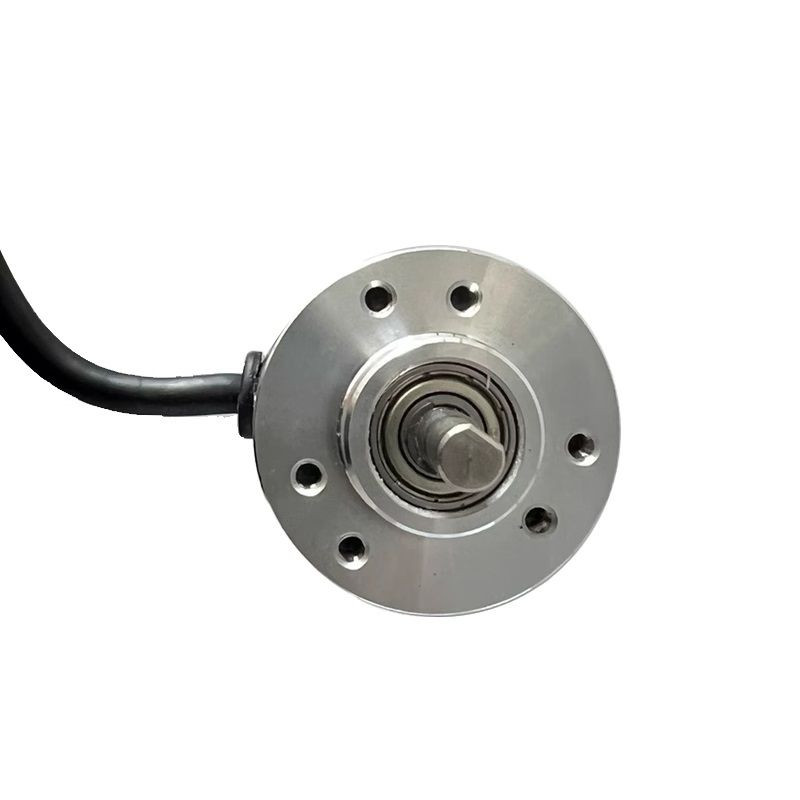

ROTARY ENCODER - 1024 P/R QUADRATURE, MBL3806-ABZ-1024-24C-2M

All pictures are for illustrative purposes only.

PID# 12461

CA$67.00
Free shipping: On orders over $120 within BC

2 In Stock

Order now, processed by tomorrow

Quantity

Request a large quantity quote

Description

This 1024 pulse per rotation rotary encoder outputs gray code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems. Encoders of this kind are often used in balancing robots and dead reckoning navigation but it could also be used as a very precise input knob.

Features:

  • Output pulse:
    ≤5000PPRis less than or equal to 5000 cap P cap P cap R
  • Sensing principle: Photoelectric
  • Power supply voltage:
    5VDC±5%5 cap V cap D cap C plus or minus 5 %
    /
    8−30VDC±5%8 minus 30 cap V cap D cap C plus or minus 5 %
  • Current consumption:
    ≤125mAis less than or equal to 125 m cap A
  • Response frequency:
    0−100kHz0 minus 100 k cap H z
  • Output method: NPN open collector/voltage output/complementary output/push-pull output
  • Shaft diameter:
    6mm6 m m
  • Protection rating: IP53
  • Maximum speed:
    5000min-15000 m i n to the negative 1 power
    (5000 rpm)
  • Maximum shaft load:
    20N20 cap N
    Axial,
    40N40 cap N
    Radial
  • Starting torque:
    <0.005N.mis less than 0.005 cap N point m
  • Vibration resistance:
    49m/s249 m / s squared
    (2G)
  • Impact resistance:
    980m/s2980 m / s squared
    (100G)
  • Operating temperature:
    -20∘C−+75∘Cnegative 20 raised to the composed with power cap C minus positive 75 raised to the composed with power cap C
  • Storage temperature:
    -30∘C−+85∘Cnegative 30 raised to the composed with power cap C minus positive 85 raised to the composed with power cap C
  • Weight: Approx.
    70g70 g
    (without cable)

Wiring:

Red=  VCC

Black=  0V

Green= A

White= B

Yellow= Z

Braided Shield = N.C.
