TIMER RELAY, H3CR-A, 1.2S-300H, 100-240VAC/DC

All pictures are for illustrative purposes only.

PID# 34223

55,00 CA$ EACH
Free shipping: On orders over $120 within BC

2 In Stock

Order now, processed by tomorrow

Variants:
12-48VAC/VAC
100-240VAC/VDC
Quantité

Request a large quantity quote

Description

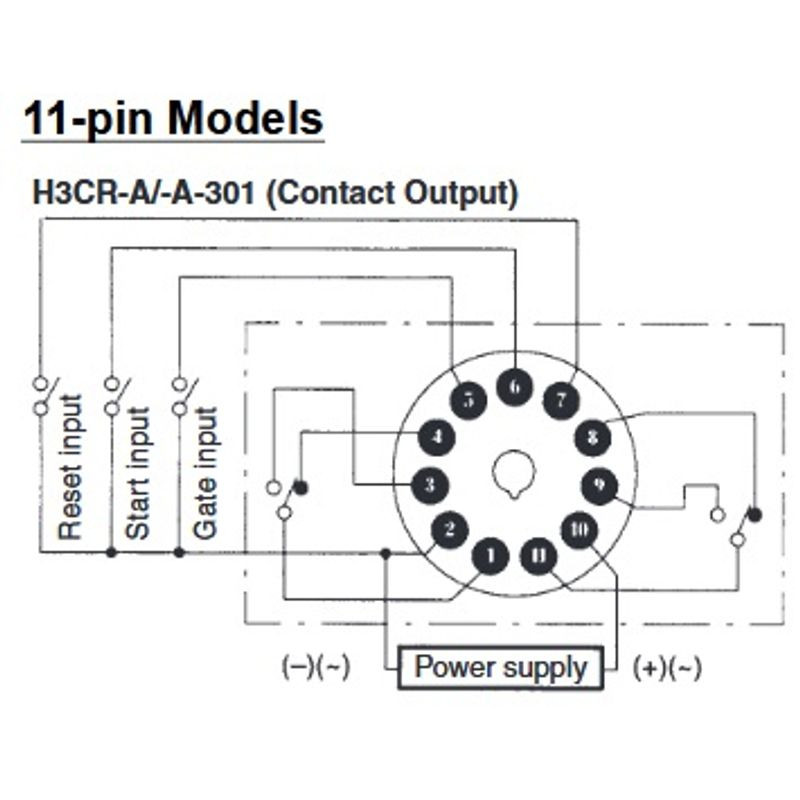

The H3CR-A AC100-240/DC100-125 is a 11-pin solid-state Multifunctional Timer. A wide range of applications through eight operating modes. Enables easy sequence checks through instantaneous outputs for a zero set value at any time range.

  • Standards: UL, CSA, NK, LR, EN 61812-1, and CE Marking
  • 11 Pin
  • No voltage input (NPN)
  • DPDT relay output
  • 100 to 240 Vac, 100 to 125 Vdc


Applications:
Clock & Timing
