MINI TOGGLE SWITCH,DPDT,ON-ON-ON,5A,SOLDER LUG

All pictures are for illustrative purposes only.

PID# 3376

5,50 CA$ EACH
Free shipping: On orders over $120 within BC
Variants:
ON-ON
ON-(ON)
ON-OFF-ON
ON-ON-ON
ON-OFF-(ON)
(ON)-OFF-(ON)
Quantité

Request a large quantity quote

Description

Specifications:

  • Silver plated copper contacts
  • ¼” – 40 UNS-2A threaded bush for panel mounting
  • Solder tag connection

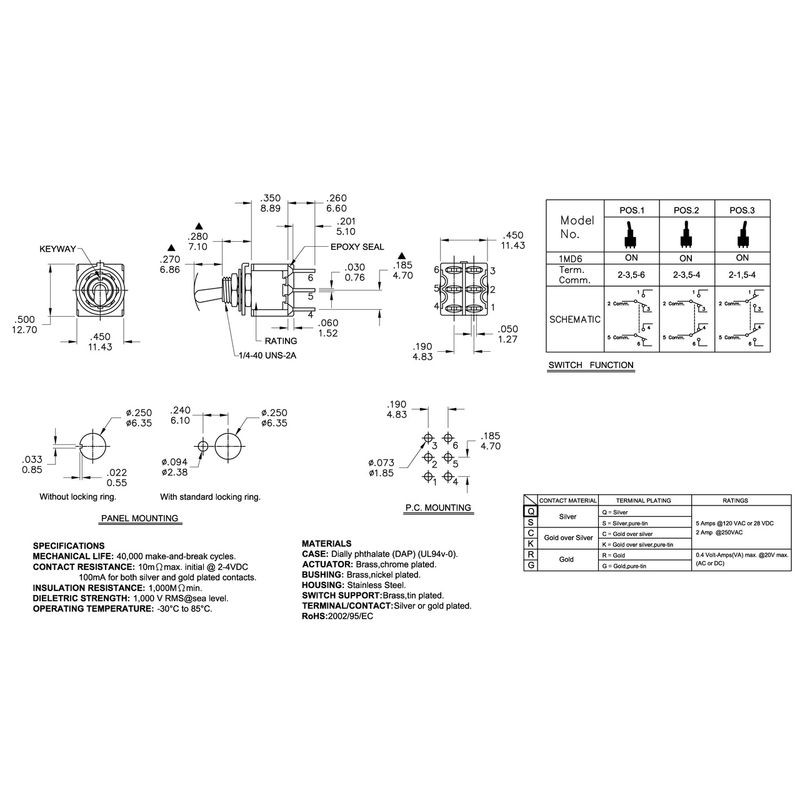

  • SPDT On-On-On (see image for diagram)
  • Switching Capacity - 5.0VA at 120VAC, 28VDC
  • Contact Resistance - 10mohm @ 4VDC
  • Insulation resistance - 1000MR
  • Dielectric strength -1000V rma
  • Mechanical Life - 40,000 Cycles
  • Operating Temperature - -30degC to +85C
  • Panel Cut Out - 6.35mm
  • Dimensions - 8.89 x 6.9 x 12.7 mm

Specifications

24 Produits

Features

Cutout Diameter 6mm
