RP2350 MCU BOARD W/ 1.43" ROUND AMOLED + TOUCH, SPI, W/ CASE

All pictures are for illustrative purposes only.

PID# 30737

48,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

RP2350 1.43inch AMOLED Display Development Board, 466×466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip, With CNC Metal Case

Product Features

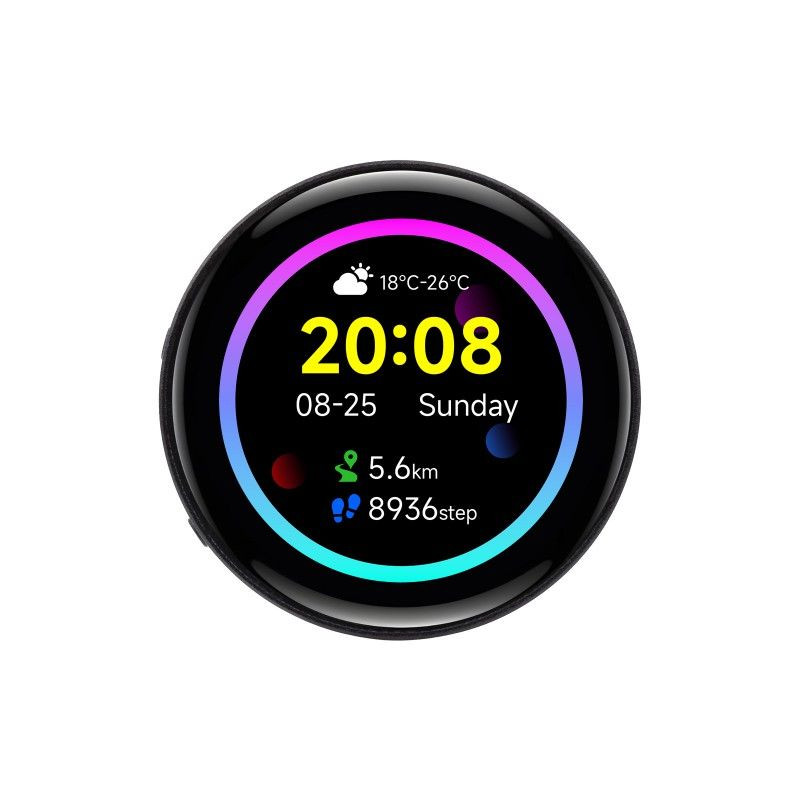

This product adopts RP2350 chip with built-in high-capacity Flash memory, onboard 1.43inch AMOLED display, capable of smoothly running GUI applications such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong expandability. It is suitable for the quick development of the RP2350 HMI applications.

  • Adopts unique dual-core and dual-architecture design: dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
  • 520KB of SRAM, and 16MB onboard Flash memory

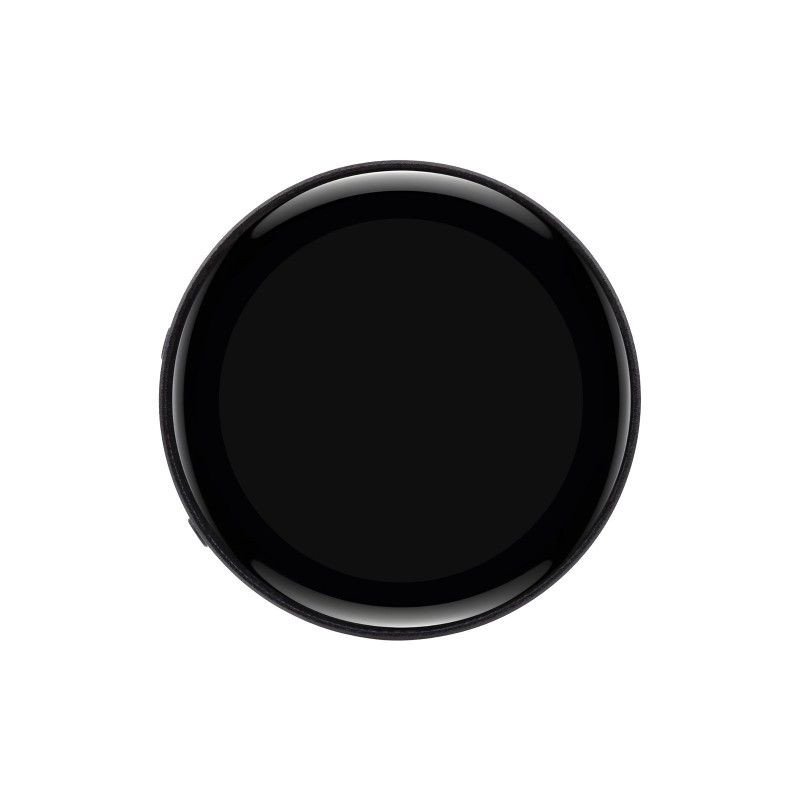

  • Onboard 1.43inch AMOLED display, SPI interface, 466 × 466 resolution, 16.7M color
  • Supports capacitive touch function controlled via I2C interface, with interrupt support
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
  • Onboard PCF85063 RTC chip with reserved SH1.0 battery header (supports charging) for RTC function requirement
  • Onboard RST and BOOT side buttons
  • Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
  • Onboard TF card slot for external storage of pictures or files

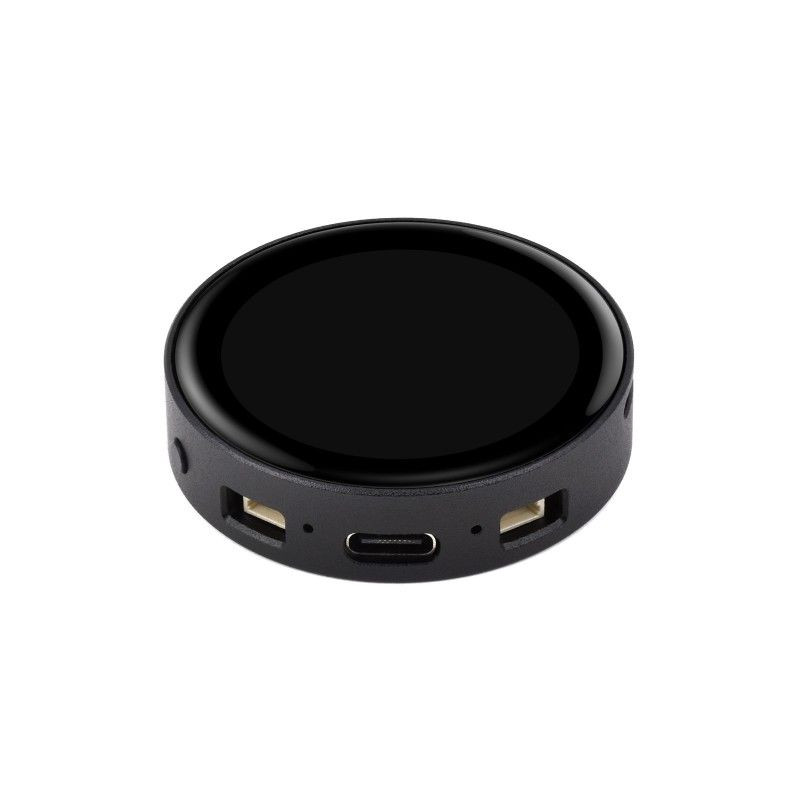

  • Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
  • Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch GPIO headers

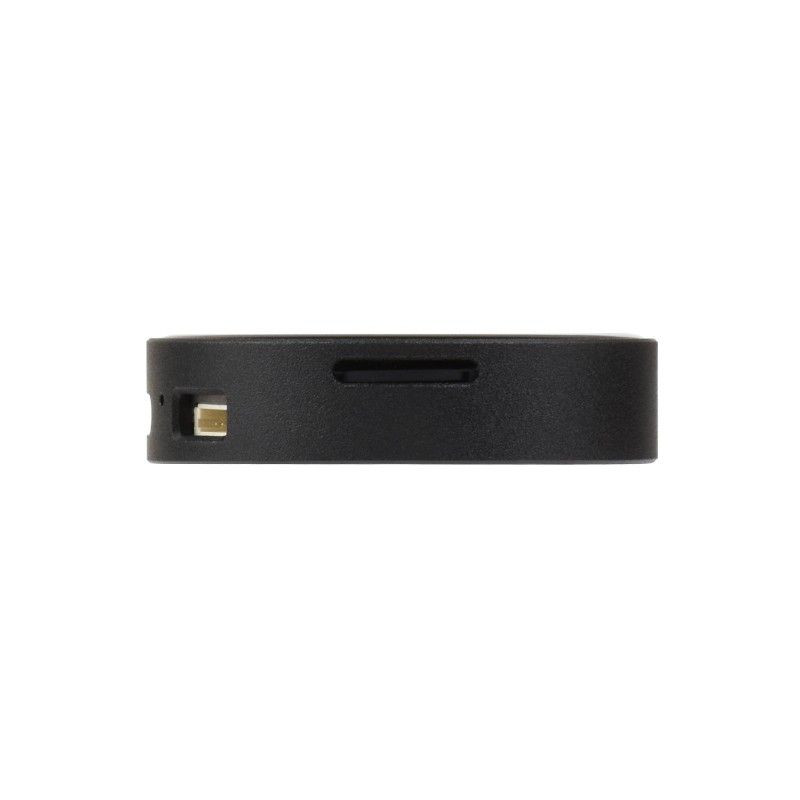

  • Comes with CNC metal case, with clear and colorful label on the back, nice looking and easy to carry

AMOLED display parameters

  • Display Panel: AMOLED
  • Display Size: 1.43 inch
  • Resolution: 466×466
  • Display Colors: 16.7M
  • Brightness: 350 cd/㎡
  • Contrast Ratio: 60000:1
  • Communication Interface: SPI
  • Driver IC: C05300
  • Touch: Supported
  • Touch IC: FT6146

What's on board

RP2350 Touch AMOLED 1.43, onboard components

  1. RP2350A
    Dual-core and dual-architecture design, up to 150 MHz operating frequency
  2. W25Q128JVSIQ
    16MB NOR-Flash
  3. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
  4. PCF85063
    RTC chip
  5. MX1.25 battery header
    MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
  6. TF card slot
    on the back side of the PCB
  1. RTC battery header
    for connecting rechargeable RTC battery (only supports rechargeable RTC batteries)
  2. I2C 4PIN connector
  3. Charge indicator
  4. Type-C connector
    for programming, USB 1.1 with device and host support
  5. Power indicator
  6. UART 4PIN connector
  7. BOOT button
    Press it when resetting to enter download mode
  8. Reset button
  9. ETA6098
    High-efficiency Lithium battery recharge manager
  10. MP1605GTF-Z
    DC-DC power chip

Wiki: www.waveshare.com/wiki/RP2350-Touch-AMOLED-1.43
