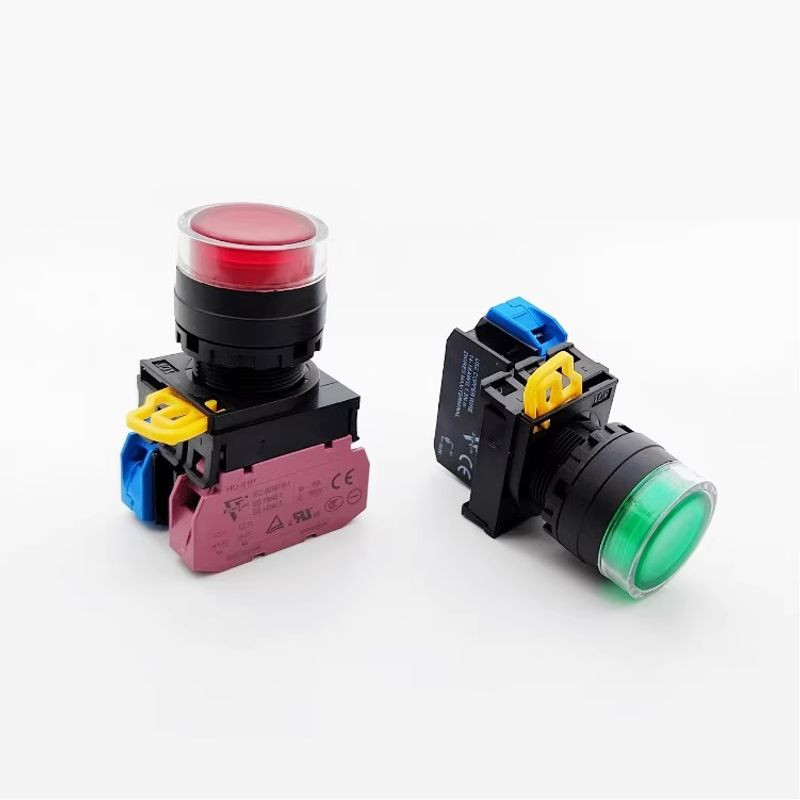

PUSH BUTTON, W/ 12V GREEN LED, LATCHING, 1NO + 1NC CONTACTS, Y090-GZS

All pictures are for illustrative purposes only.

PID# 30062

13,75 CA$ EACH
Rupture de stock
Variants:
Quantité

Request a large quantity quote

Description

Lamp ratings


Lamp type		 AC LED Lamp
Illuminated Lamp Type Power Box Type
Rated voltage AC/DC 6V AC/DC 12V AC/DC 110V AC/DC 220V AC/DC 380V
AC/DC 24V AC 110V AC 220V AC 380V
Rated Current ≤20mA
Covers color Green
Life About  40,000 hours

Switch Ratings


Rated Insulation Voltage		 Ui:660v
Thermal Current lth:10A
Rated Voltage 24V 48V 110V 220V 380V 500V
Direct Current 10A 5A 2.2A 1.1A
Alternating Current
P.F=0.7		     10A 6A 4A 2A


Specifications


Operating Temperature		 -25ºC~+55ºC(no freezing)
Operating Humidity 48~85%RH(no condensation)
Contact Material -sliver
-sliver alloy
-gold-clad sliver,
Clading thickness is 3μm
Contact Resistance ≤50mΩ
Insulation Resistance ≥100mΩ
Dielectric Strength 3000V,AC 50Hz
Vibration Resistance 50Hz,amplitude 1.0mmP-P
Shock Resistance ≥10g
Life Mechanical Momentary Type ≥1,000,000times
Alternate and Selector Type ≥500,000times
Key-lock and Emergency Type ≥200,000times
Electrical ≥50, 000times
Terminal Thread connection,Diameter of welded wire:2*1.5mm max
Connecting link:6.3*0.8mm
Operating Operating Force:800gf~2200gf
Operating Travel:About 5.5mm(pushbuttons)

Specifications

Features

Cutout Diameter 22mm
