ESP32-C3 W/ 0.71" LCD DEV BOARD W/ CASE + CONVEX LENS

  • Nouveau
All pictures are for illustrative purposes only.

PID# 29512

30,00 CA$
Free shipping: On orders over $120 within BC
Quantité

Request a large quantity quote

Description

ESP32-C3 0.71inch Round Display Development Board, 160×160 Resolution, Based on ESP32-C3 Single-core Processor, SPI Interface Display, ESP32 With Display

Features

ESP32-C3-LCD-0.71 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support. Onboard 0.71inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI applications based on the ESP32-C3 such as low-power AI emulation eyes, watches, etc.

  • Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  • 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
  • Onboard 0.71inch LCD display, 160×160 resolution, IPS panel
  • Built-in battery recharge management circuit, reserved VBAT solder joints, for connecting external Lithium battery power supply

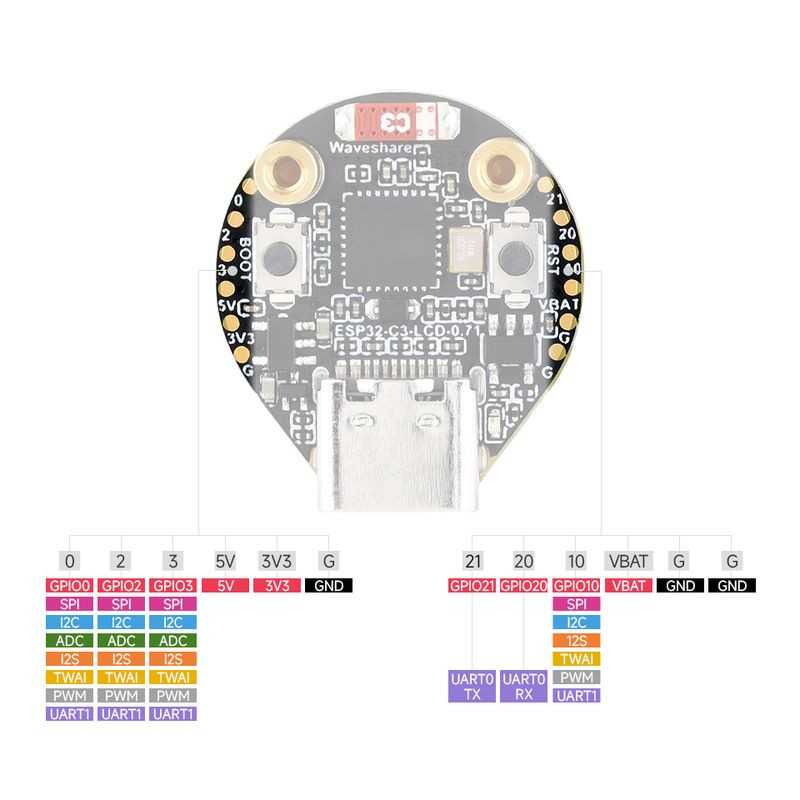

  • Adapting some GPIO solder pads for external expansion applications
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Specifications

  • MCU ESP32-C3FH4
  • Display size 0.71 inch
  • Operating voltage 3.3V
  • Resolution 160 × 160
  • Backlight current 20mA
  • Display Panel IPS
  • Communication Interface 4-wire SPI
  • Driver GC9D01

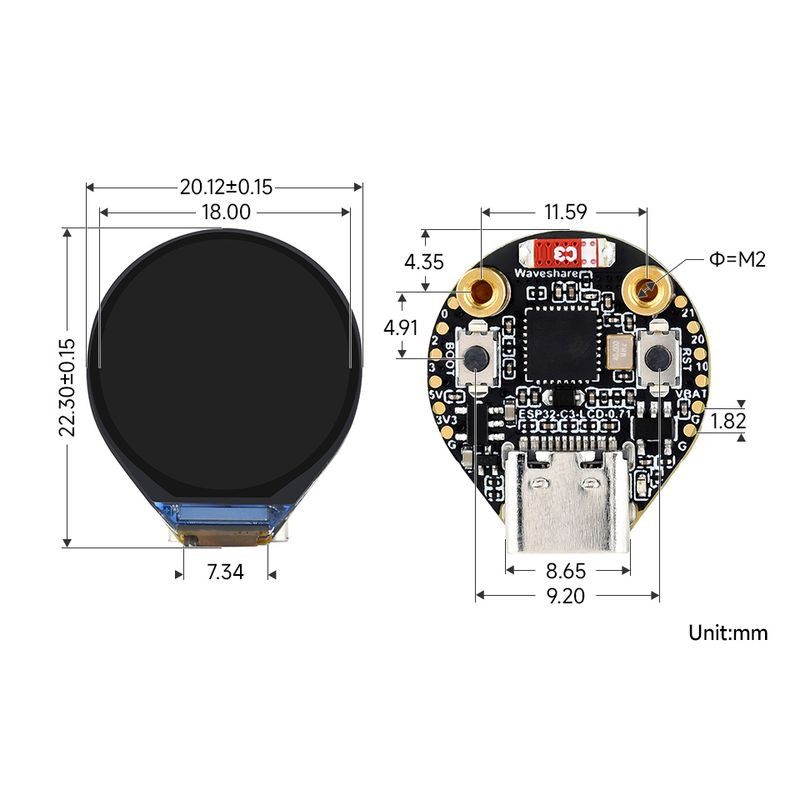

  • Dimensions 20.12×22.3×1.81 (H×V×D) (mm)
  • Brightness 350cd/m^2 (typical)

Application Scenarios

Suitable for HMI applications based on the ESP32-C3 such as low-power AI emulation eyes, watches, etc.

What's on Board

ESP32-C3 LCD 0.71, onboard components

  1. RESET button
  2. BOOT button
    Press it and then press the RESET button to enter download mode
  3. ESP32-C3FH4 processor
    up to 160MHz operating frequency, 4MB Flash memory
  4. 2.4G ceramic antenna
  1. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)
  2. PL4054
    Lithium battery recharge IC, 4.2V full charge
  3. USB Type-C port
    for power supply, data transmission, program downloading

Package Content:

  • ESP32-C3-LCD-0.71 x1

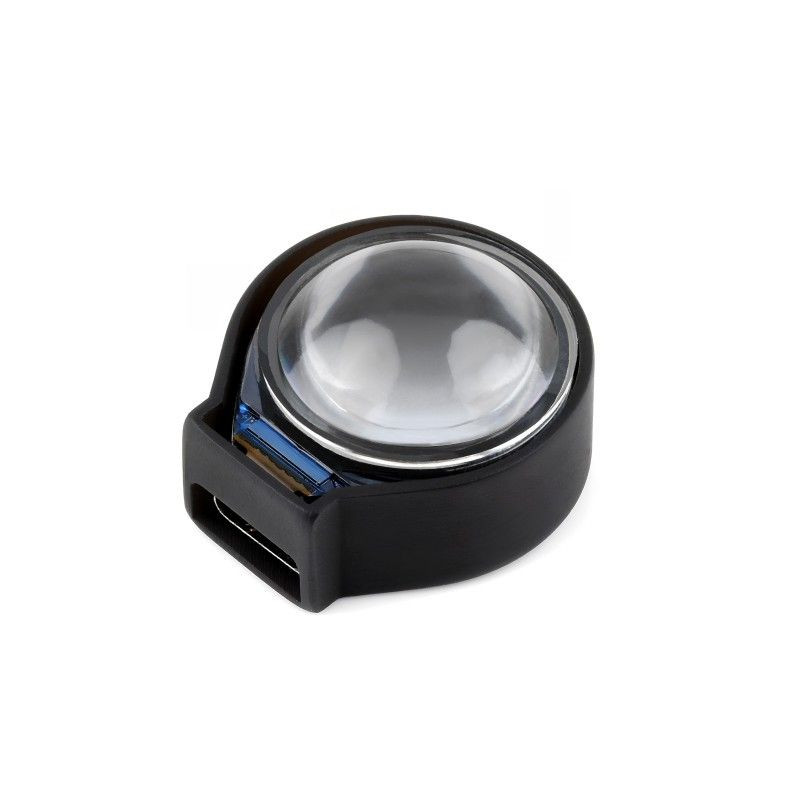

  • Protective case ×1

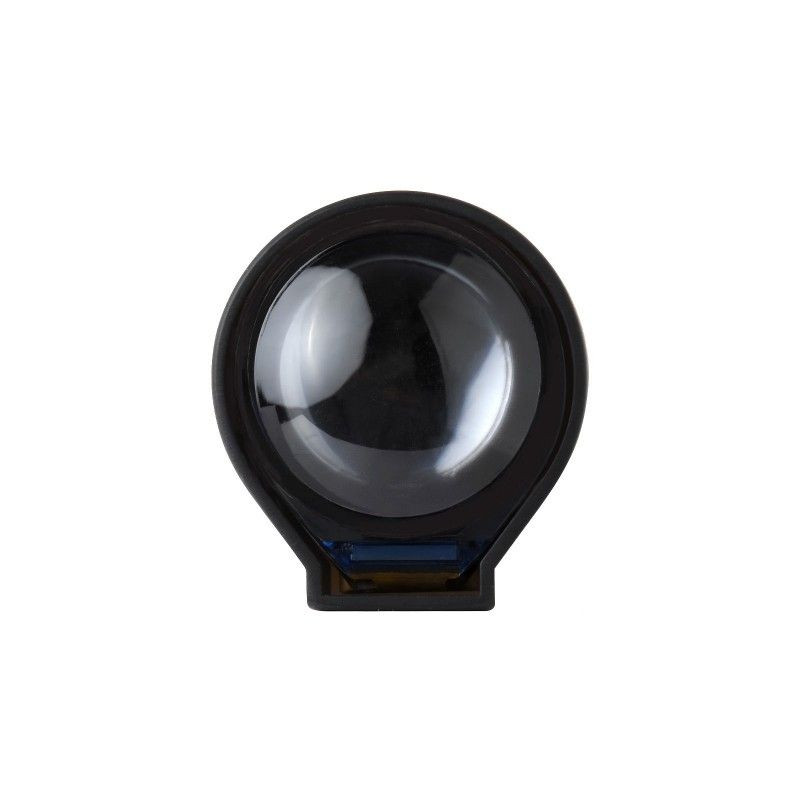

  • Convex lens x1

Wiki: www.waveshare.com/wiki/ESP32-C3-LCD-0.71
