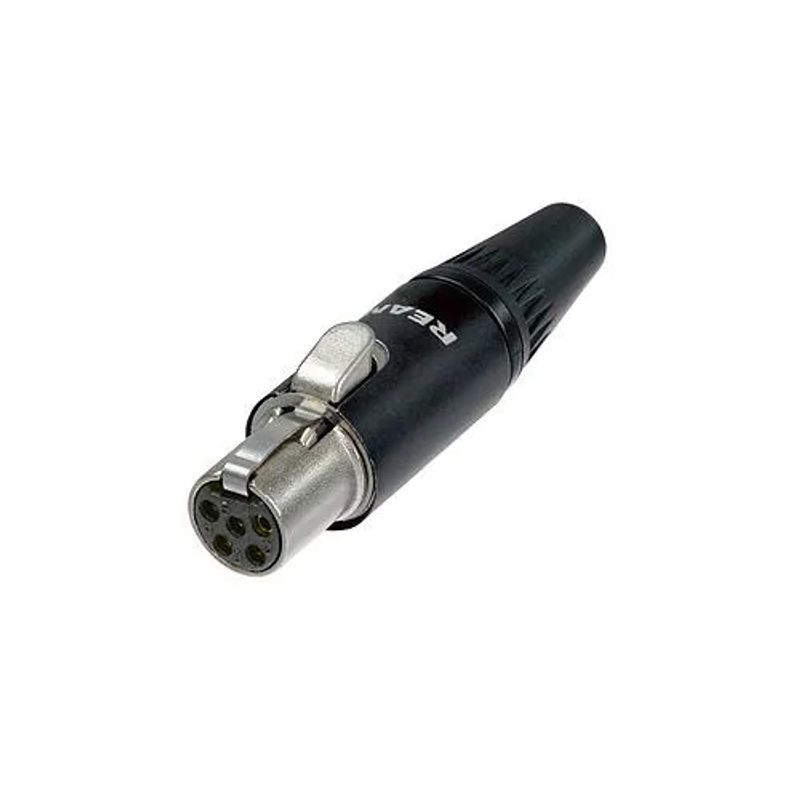

XLR MINI 5-PIN FEMALE REAN RT5FC-B

All pictures are for illustrative purposes only.

PID# 244422

8,50 CA$
Free shipping: On orders over $120 within BC
Variants:
mini 4P
mini 5P
Quantité

Request a large quantity quote

Description

Product:

Title: RT5FC-B

Connection Type: XLR

Electrical:

Contact Resistance: ≤10 mΩ

Insulation Resistance: >1 GΩ

Dielectric Strength: >500 V rms

Rated current per contact: ＜5 A

Mechanical:

Cable O.D. Range: 2.0-4.5mm

Lifetime: >1000 Mating Cycles

Wiresize:  0.22 mm²

Wiresize:  24 AWG

Material

Ground Contact: Steel

Rubber Spring: Rubber

Latch: Zinc

Chuck: POM

Boot: PC/ABS+TPU

Housing:  Zinc

Plastic housing: PA6+30%GF

Jack: Bronze

Ground Contact: Bronze

Tube: Aluminum

Latch: Nickel Plating

Housing: Nickel Plating

Jack: Gold Plating

Ground Contact: Tin

Tube:  Black Plating
